Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 384
Parameter Description
Width Tolerance The tolerance applied to the nominal width.

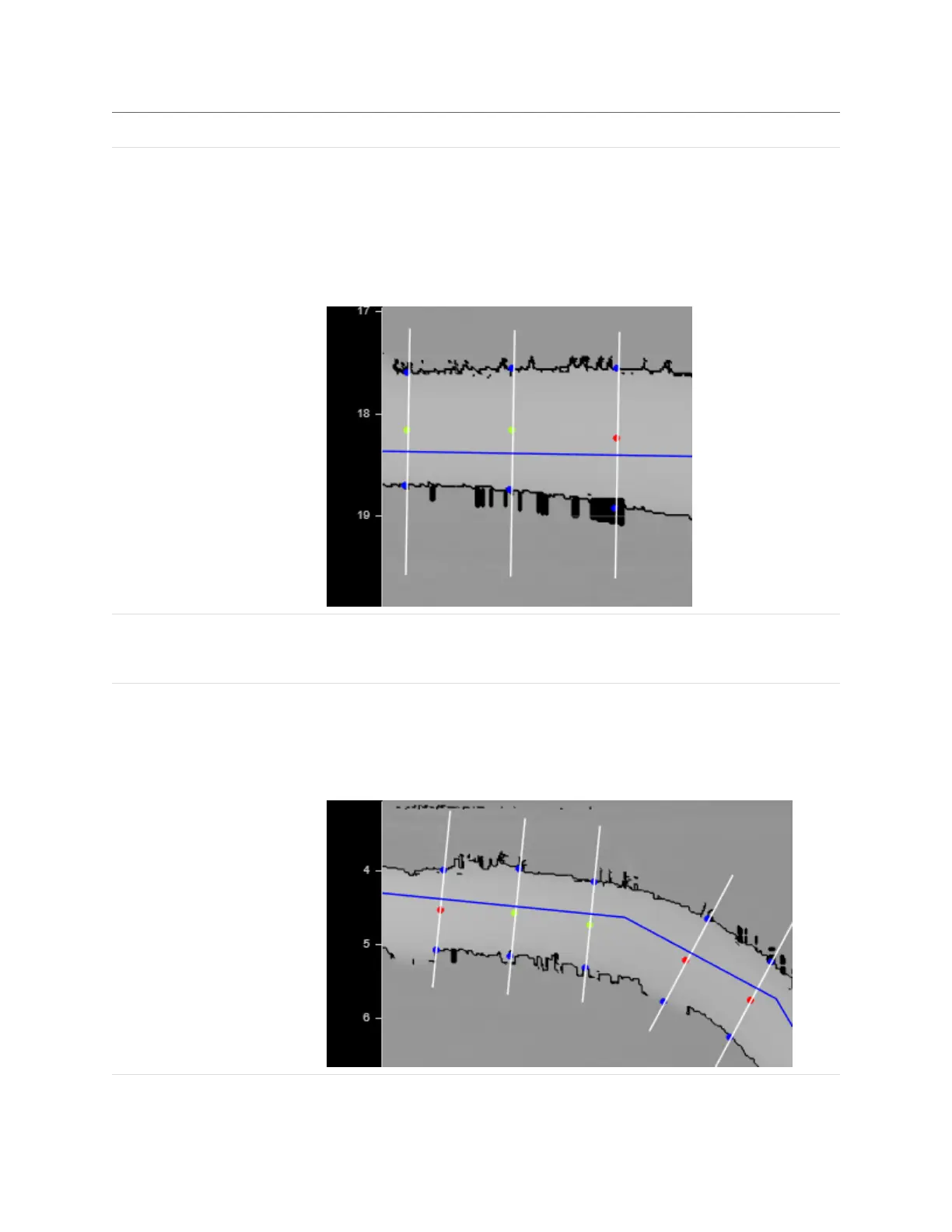

In the following, the distance between the blue dots indicating the width of the track
under the ruler to the right (white vertical line) is greater than the width tolerance;
this is indicated by the red center point dot, and counts as a NG measurement. The
widths of the track under the two rulers to the left are within tolerance; this is
indicated by green center points, and count as OKmeasurements. The track is lighter
grey than the surrounding surface.
Nominal Height The expected height of the track. The expected height is the absolute height in the
scan data, not relative to the surrounding area. This setting applies to the peak point,
not the center point.
Height Tolerance The tolerance applied to the nominal height. This setting applies to the peak point,
not the center point.
In the following, the red center points indicate that the height at that point is outside
of the height tolerance. Green points indicate heights within tolerance. The track is
lighter grey than the surrounding surface.
