Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 412

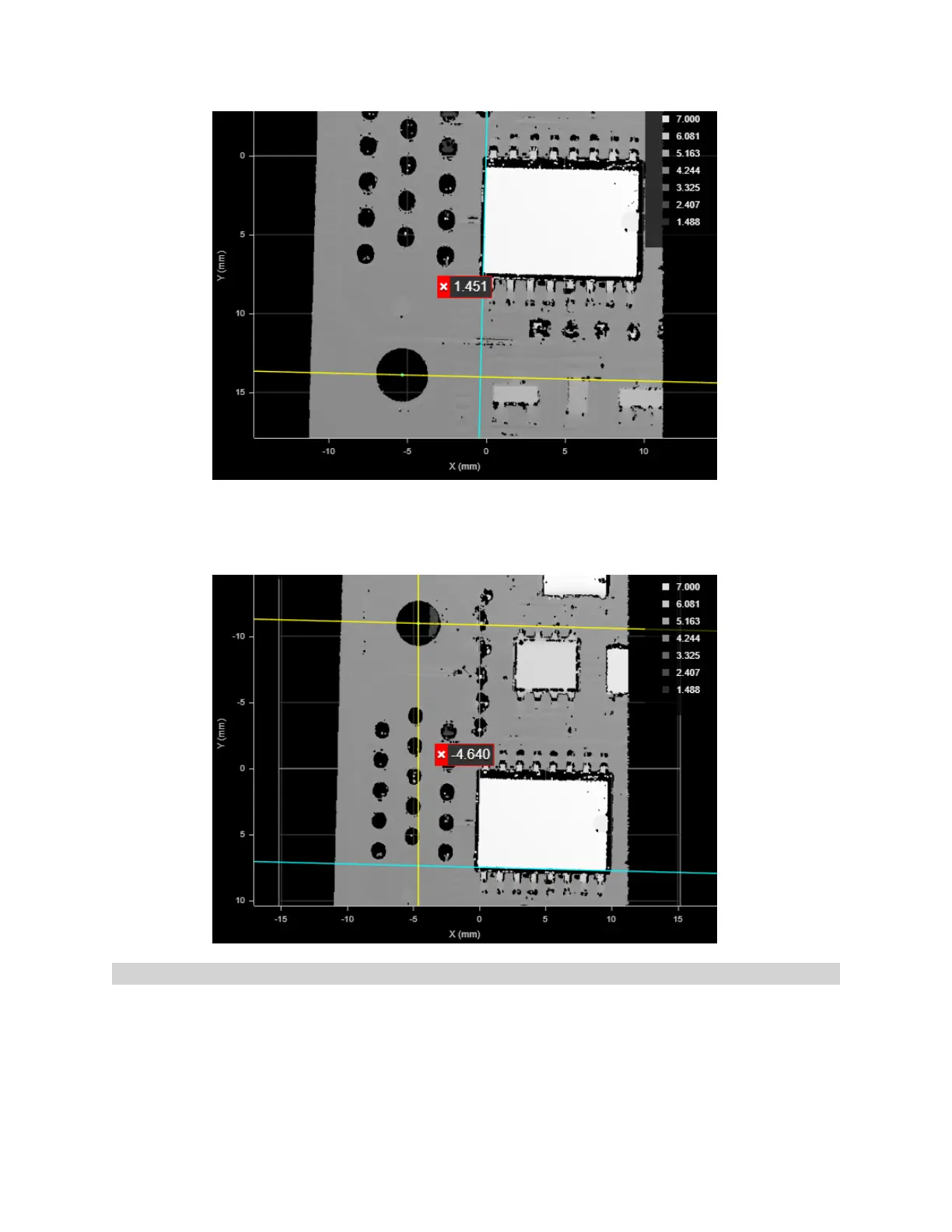

In the following, the tool generates a roughly horizontal line (yellow) parallel to the input line (cyan line
along the bottom edge of the large integrated circuit), passing through the input point (cyan dot at the
center of the hole).
Circle from Points
The Circle from points output type takes three point geometric features and fits a circle to those
points. The circle is always on the XYplane.
The X, Y, and Zmeasurements return the center of the circle. The X, Y, and Z Angle measurements return
a 0.000 value.
