Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 266
Measurement Illustration
X
Measures the X position of the location where the tangent
touches the edge, or intersect of the tangent and the line
fitted to the surface used by the measurement (see
Reference Side, below).
Z
Measures the Z position of the location where the tangent
touches the edge, or intersect of the tangent and the line
fitted to the surface used by the measurement (see
Reference Side, below).

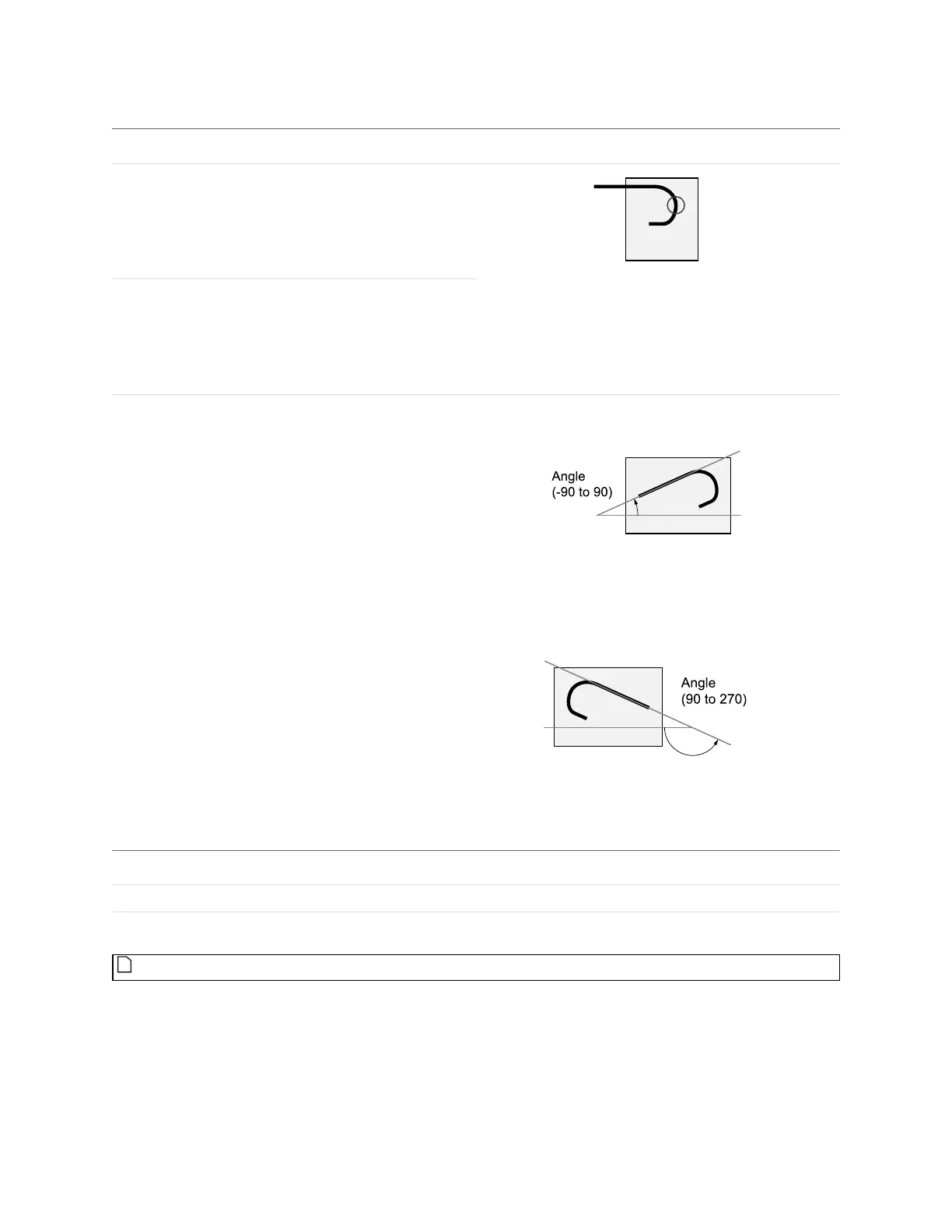

Angle
Measures the angle of the line fitted to the surface next to
the corner (see Reference Side, below), with respect to the
x-axis. Left edge angles are from -90 to 90. Right edge
angles are from 90 to 270.
Measurements
Type Description
Edge Point
The position of the edge.
Radius Center Point
The center of the radius.
Features
For more information on geometric features, see Geometric Features on page 206.
