Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 302

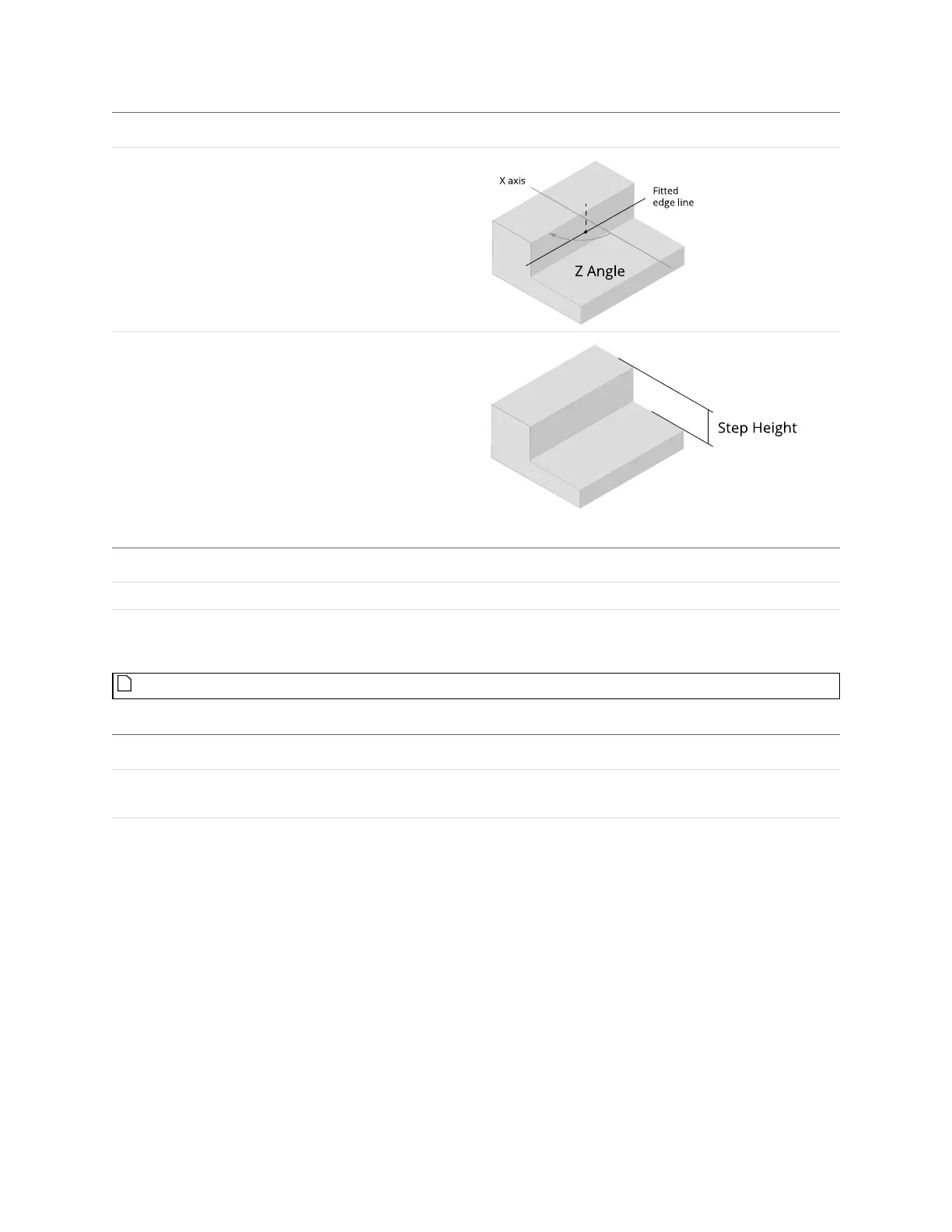

Measurement Illustration
ZAngle
Returns the rotation, around the Z axis, of the fitted edge
line. Rotating the measurement region has no impact on
the angle that is returned unless a different edge is
detected.
Useful for using minor variations in the rotation of an edge
on target as an anchor for other measurements. For more
information, see Measurement Anchoring on page 211.
Step Height
Returns the height of the step, calculated by averaging the
step heights of all of the path profiles.
(When Use Intensity is enabled, the value returned is the
difference in intensity.)
Type Description
Edge line
The fitted edge line.
Center Point
The intersection point of the fitted edge line and a line
through the center of the region at the path angle.
Features
For more information on geometric features, see Geometric Features on page 206.
Parameter Description
Source The sensor, or combination of sensors, that provides data for the tool's measurements.
For more information, see Source on page 201.
Parameters
