Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 337

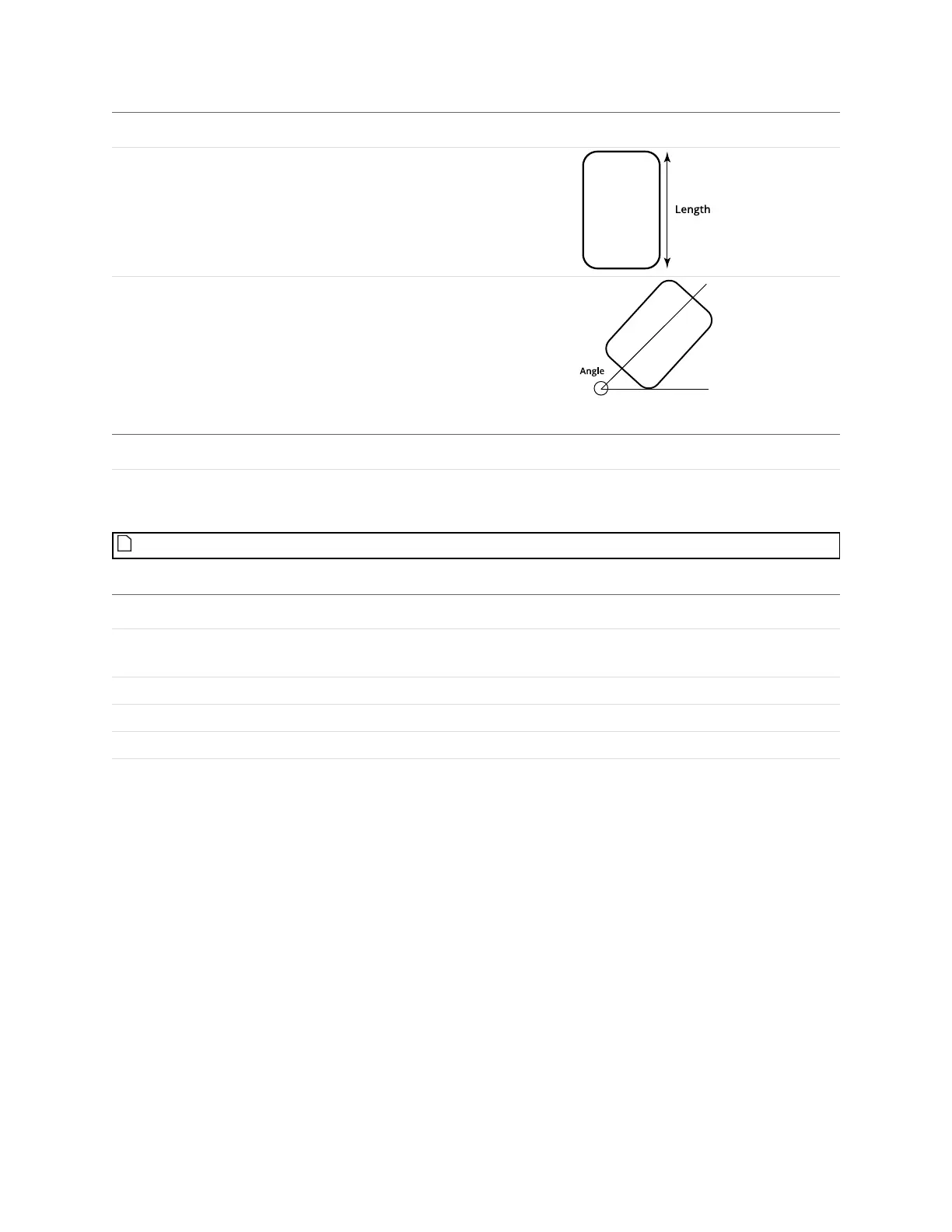

Measurement Illustration
Length
Determines the length of the opening.
Angle
Determines the angle (rotation) around the normal of the
alignment plane.
Type Description
Center Point
The center point of the opening. The Z position of the
center point is at the Z position of the surrounding surface.
Features
For more information on geometric features, see Geometric Features on page 206.
Parameter Description
Source The sensor, or combination of sensors, that provides data for the tool's measurements. For
more information, see Source on page 201.
Type Rounded Slot, Rectangle.
Nominal Width Nominal width of the opening.
Nominal Length Nominal length of the opening.
Parameters
