Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 348

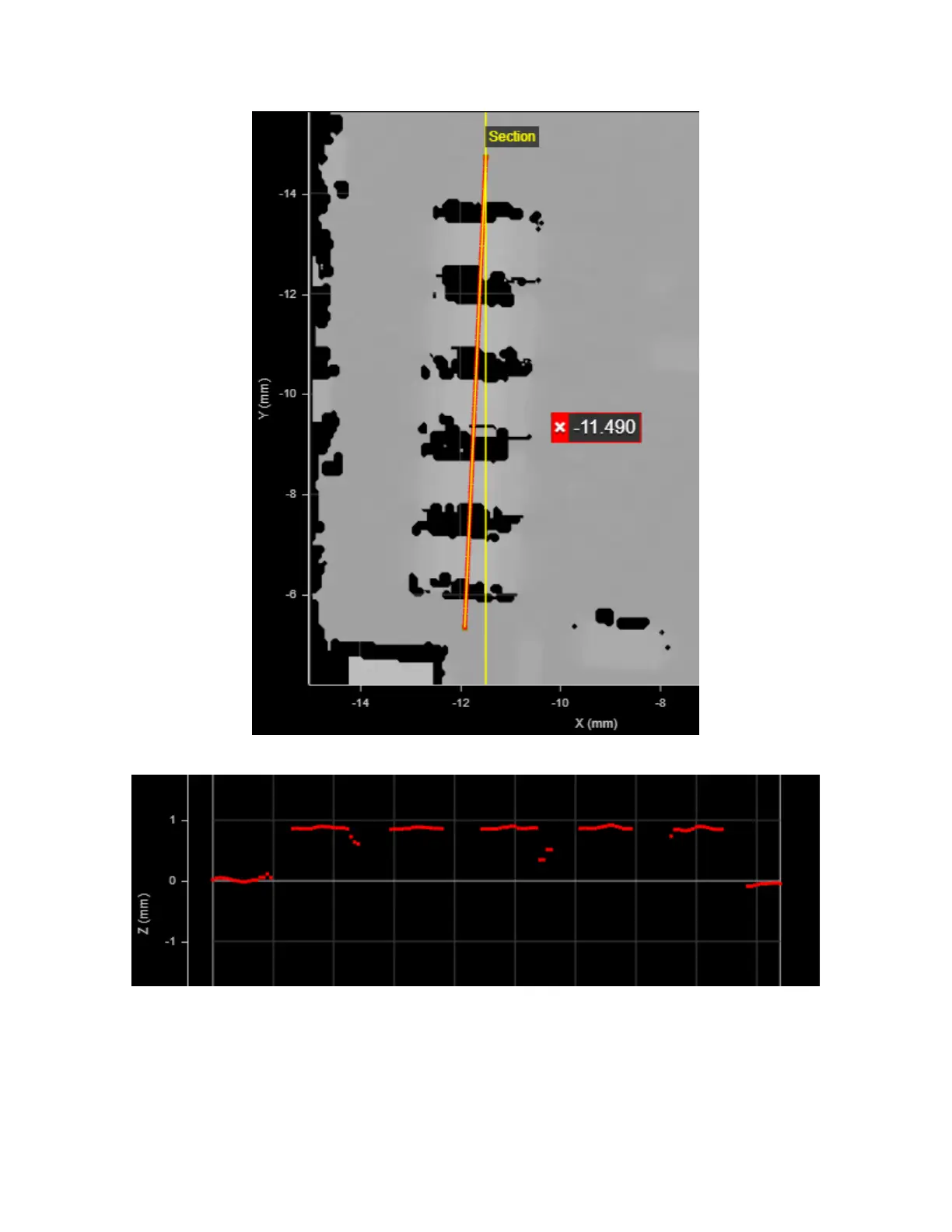

A section over a row of components
The resulting profile
Note that profiles extracted from surfaces start at the point defined as the X/YStart of the section.
Profiles are always displayed horizontally, with X increasing to the right. The origin of extracted profiles is
the beginning of the section, and not relative to the surface from which they are extracted.
