Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 377

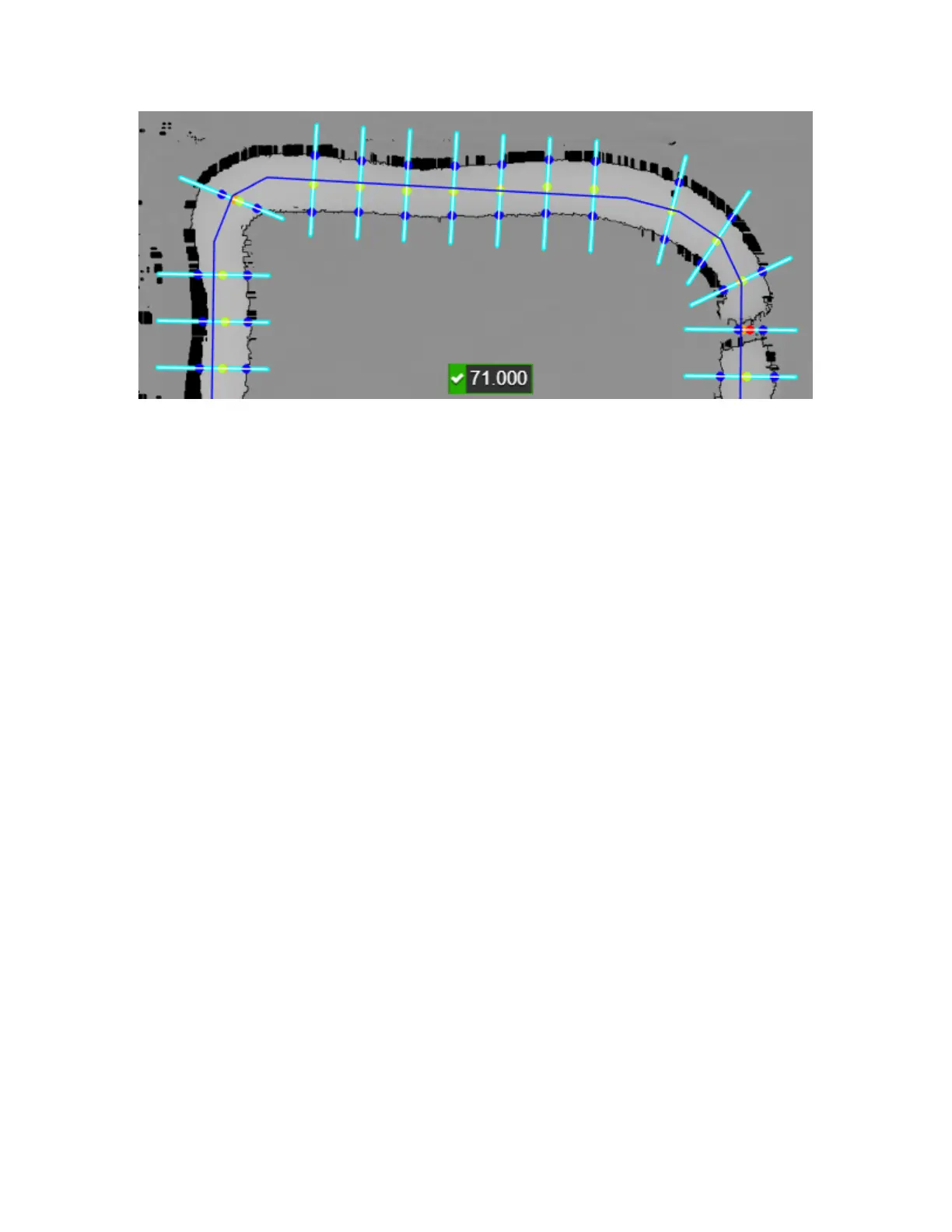

Track tool in data viewer, showing a track (lighter grey), path (dark blue line), rulers running
perpendicular to the track (white lines centered on light blue dots).
Dots of other colors provide additional information (see below).
When you enable Show Measurement Results, the Track tool displays dots on the rulers to provide
the following information (see also the images below):
l Light blue dots:The data points in the ruler profile. When you enable Show Path and Rulers, the
tool displays a white line centered on these dots to indicate the location of the ruler.
l Dark blue dotes:The detected sides of the track. These represent the width of the track under that
ruler.
l Green dots:Center points on rulers that pass the criteria set in the tool. These count toward the "OK
Count" measurement.
l Red dots:Center points on rulers that fail at least one of the criteria set in the tool. These count
toward the "NG Count" measurement.
l Orange dots:The peak (highest)point on the ruler. If the center point (green or red)is the same as
the peak point, the tool only shows the center point.
