Gocator Line Profile Sensors: User Manual
Getting Started • 39
Older revisions of Master 810 and 2410 network controllers use a different configuration for the DINrail
clip holes.
To install the DINrail clips:
1. Remove the 1Urack mount brackets.

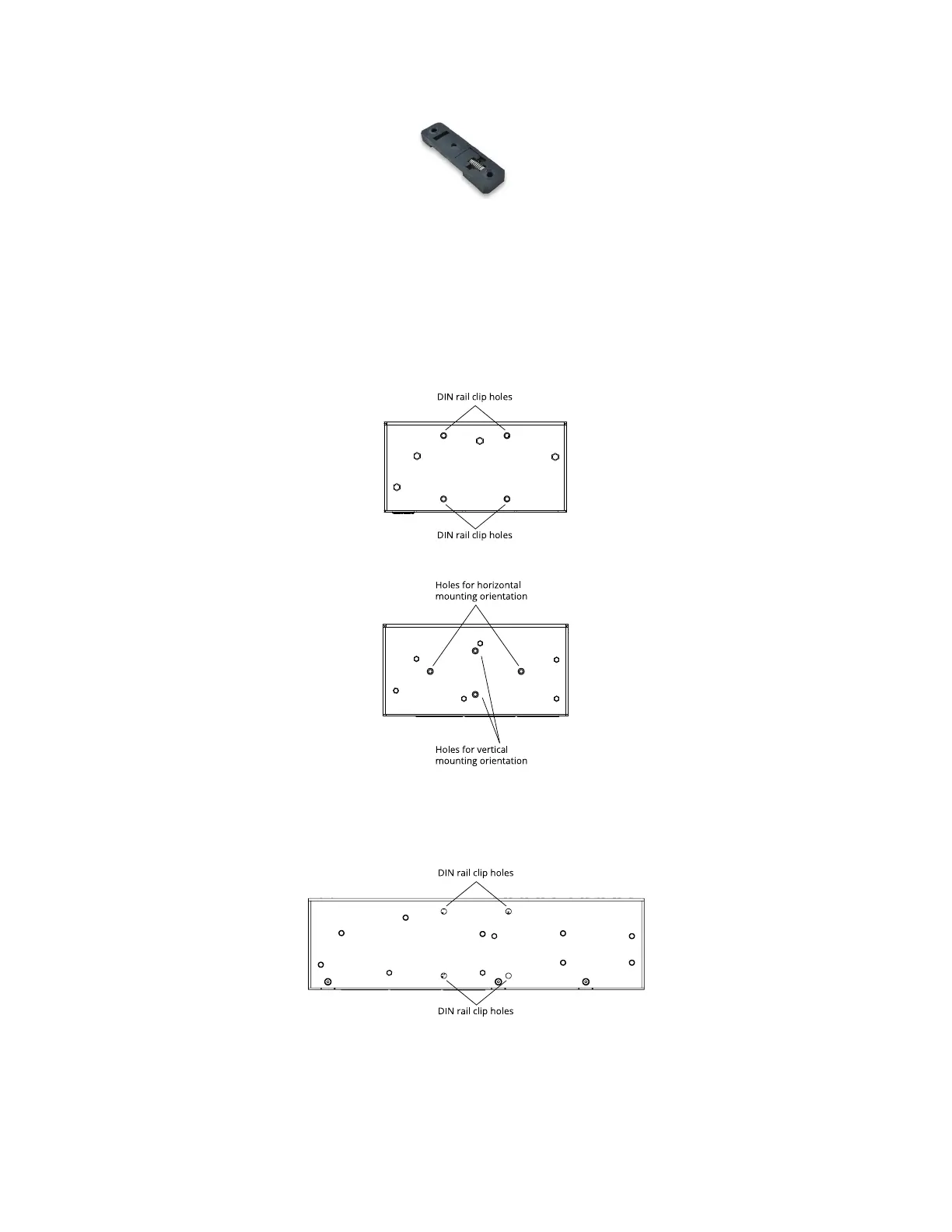

2. Locate the DINrail mounting holes on the back of the Master (see below).
Master 810:
Current revision
Older revision
Master 2410:
Current revision
