LMI Technologies Gocator 2500 Series User Manual

Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 391

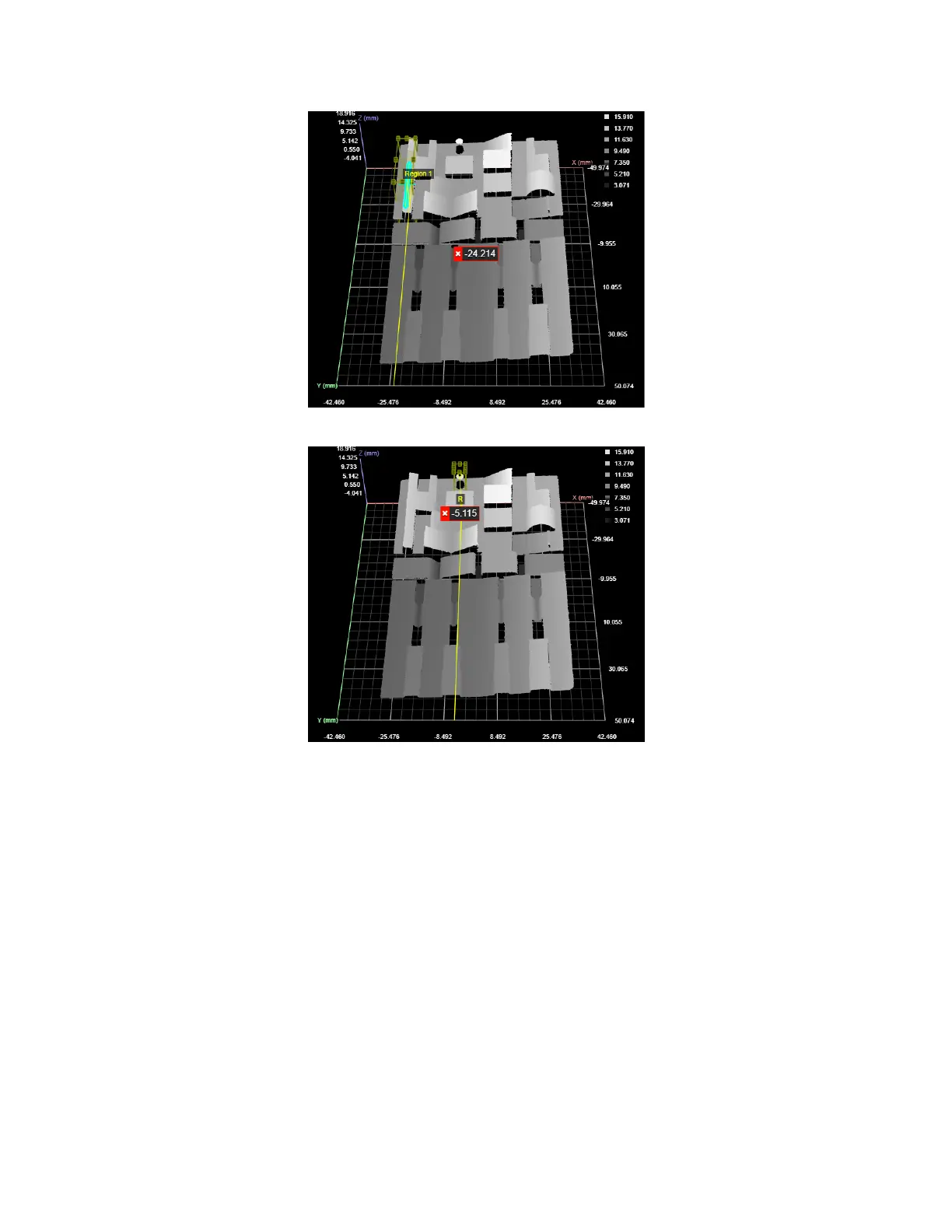

A Surface Edge tool, with the region set to the left edge of a raised surface (upper left of data viewer).
A Surface Position tool (maximum Z), with the region set to the raised point near the top of the data viewer.
Furthermore, in the sections below, two types of data are shown:the original (input)scan data and the
transformed data. When the tool displays the original data, it overlays indicators of the new,
transformed coordinate system on the data.
