Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 415

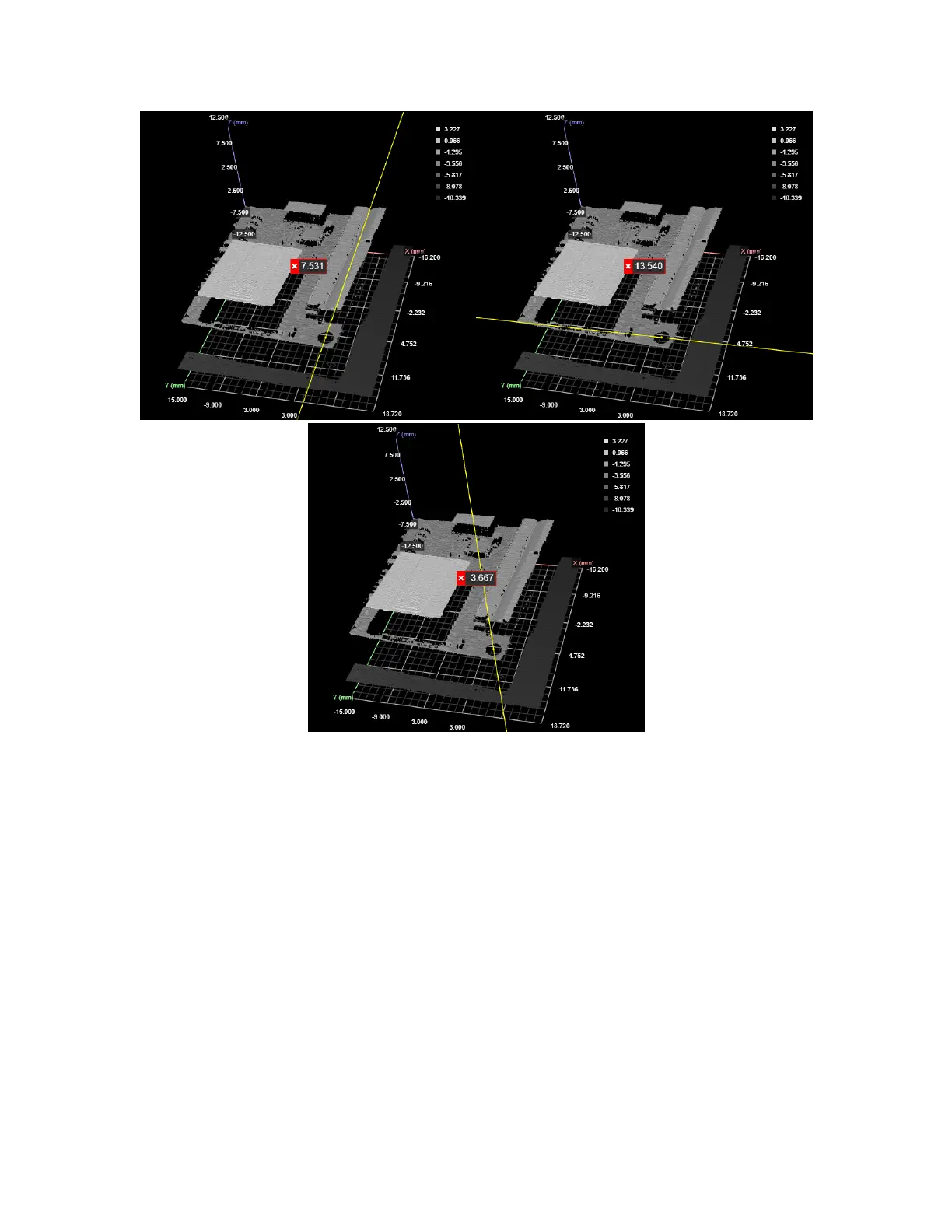

Positional measurements of a point
For line output, the X, Y, and Zmeasurements return the midpoint of the line. The Z Angle measurement
returns the angle of the line around the Zaxis. The X angle is always 0.000, and the Yangle is always
180.000.
These outputs are useful if the tool takes features generated by another Feature Create tool as input, on
which you want to perform measurements in the second Feature Create tool. Also, this can be useful if
you have developed GDKtools that only generate geometric features (no measurements):you can use
this tool to extract those measurements.
Gocator compares the measurement value with the values in Min and Max to yield a decision. For more
information on decisions, see Decisions on page 208.
See Adding and Configuring a Measurement Tool on page 198 for instructions on how to add
measurement tools.
