Gocator Line Profile Sensors: User Manual
How Gocator Works • 71
geometric features (for example, creating a line from two point geometric features). You can then
perform measurements on those features directly in the tool or in other Feature measurement tools.
You can also use angle measurements on the newly created features for anchoring.
You enable geometric feature output on a tool’s Features tab:

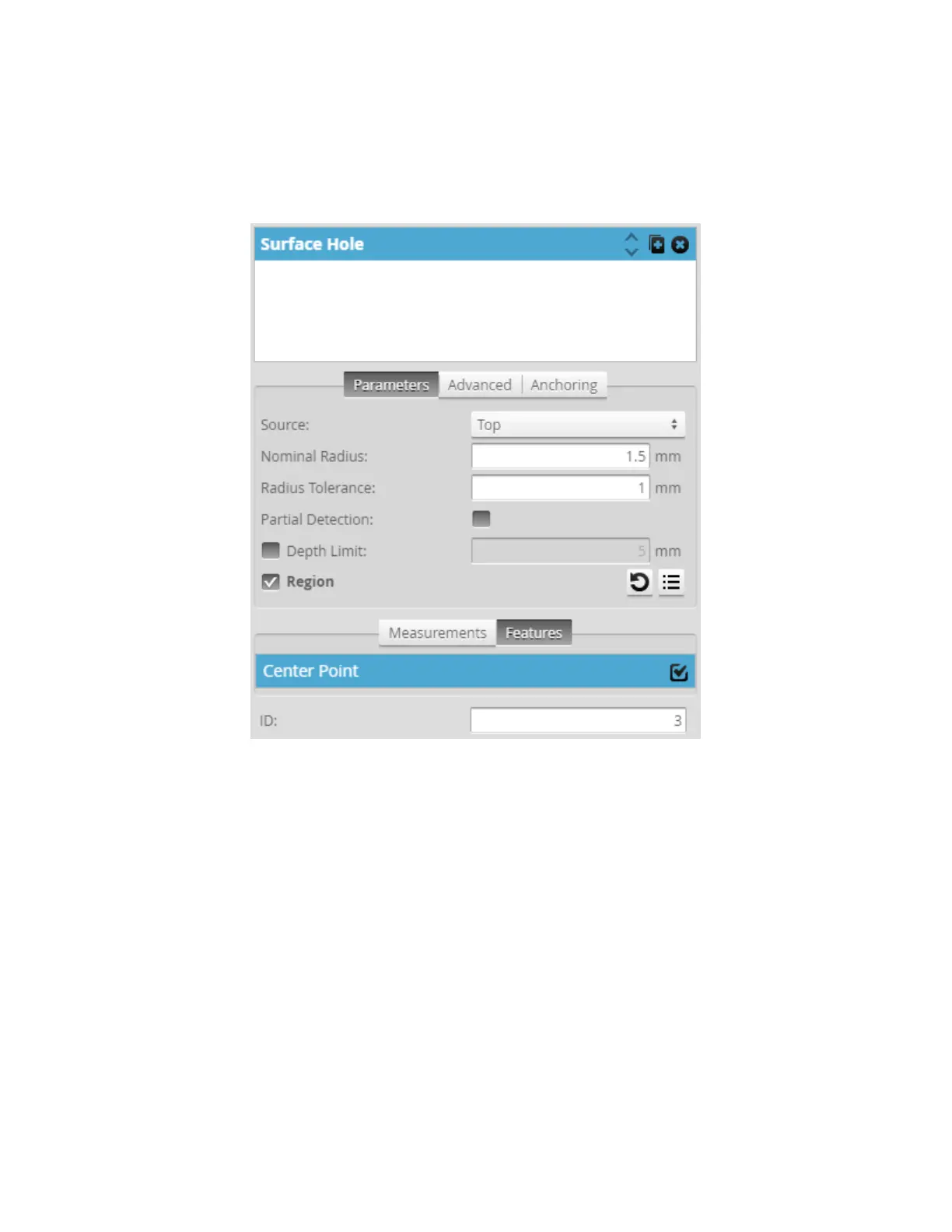

Center Point geometric feature of a Surface Hole tool enabled on Features tab
You enable geometric feature inputs on a Feature tool’s Parameters tab:
