Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 98

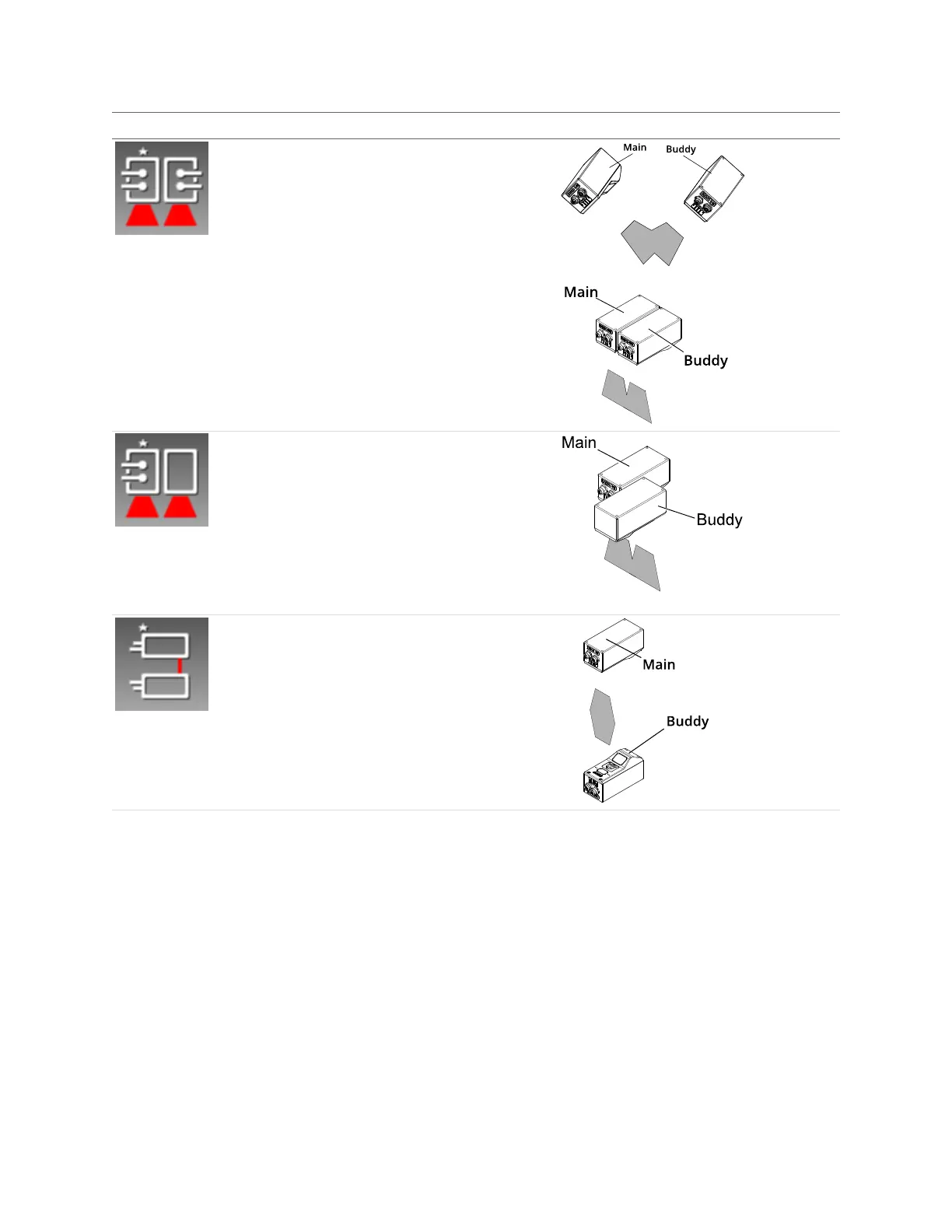

Layout Type Example
Wide
Sensors are mounted in Left (Main) and
Right (Buddy) positions. This allows for a
larger combined field of view. Sensors may
be angled around the Yaxis to avoid
occlusions.
Reverse
Sensors are mounted in a left-right layout
as with the Wide layout, but the Buddy
sensor is mounted such that it is rotated
180 degrees around the Z axis to prevent
occlusion along the Y axis.
Sensors should be shifted along the Yaxis
so that the laser lines align.
Opposite
Sensors are mounted in Top (Main) and
Bottom (Buddy) positions for a larger
combined measurement range and the
ability to perform Top/Bottom differential
measurements.
