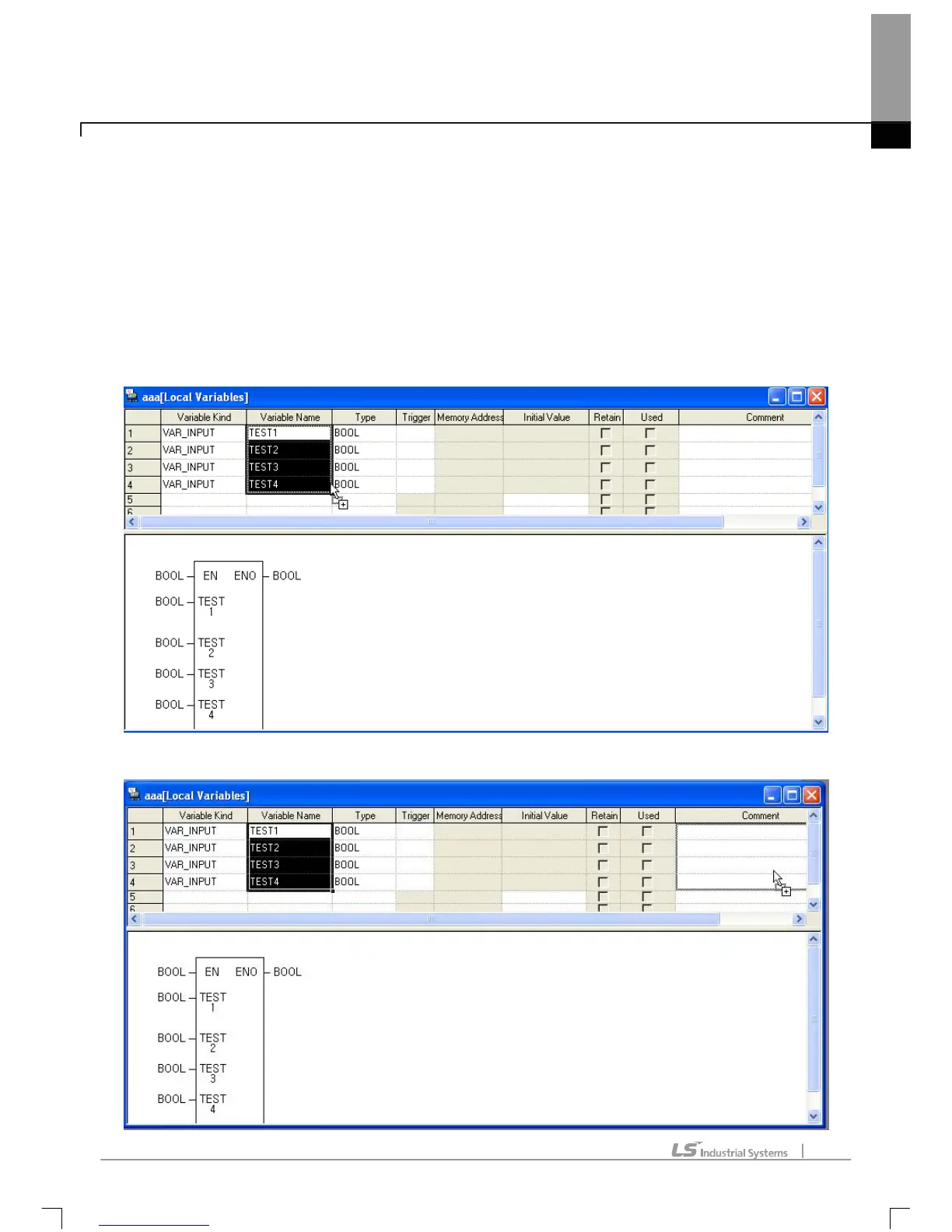

4.8.6 Drag & Drop

It is used to copy the selected items to paste on different positions.

[Steps]

1. Select the area to drag and drop.

2. The mouse cursor will change to the state available for drag and drop.

3. With the left mouse button being pressed, drag and drop the selected items onto a position to paste on.
