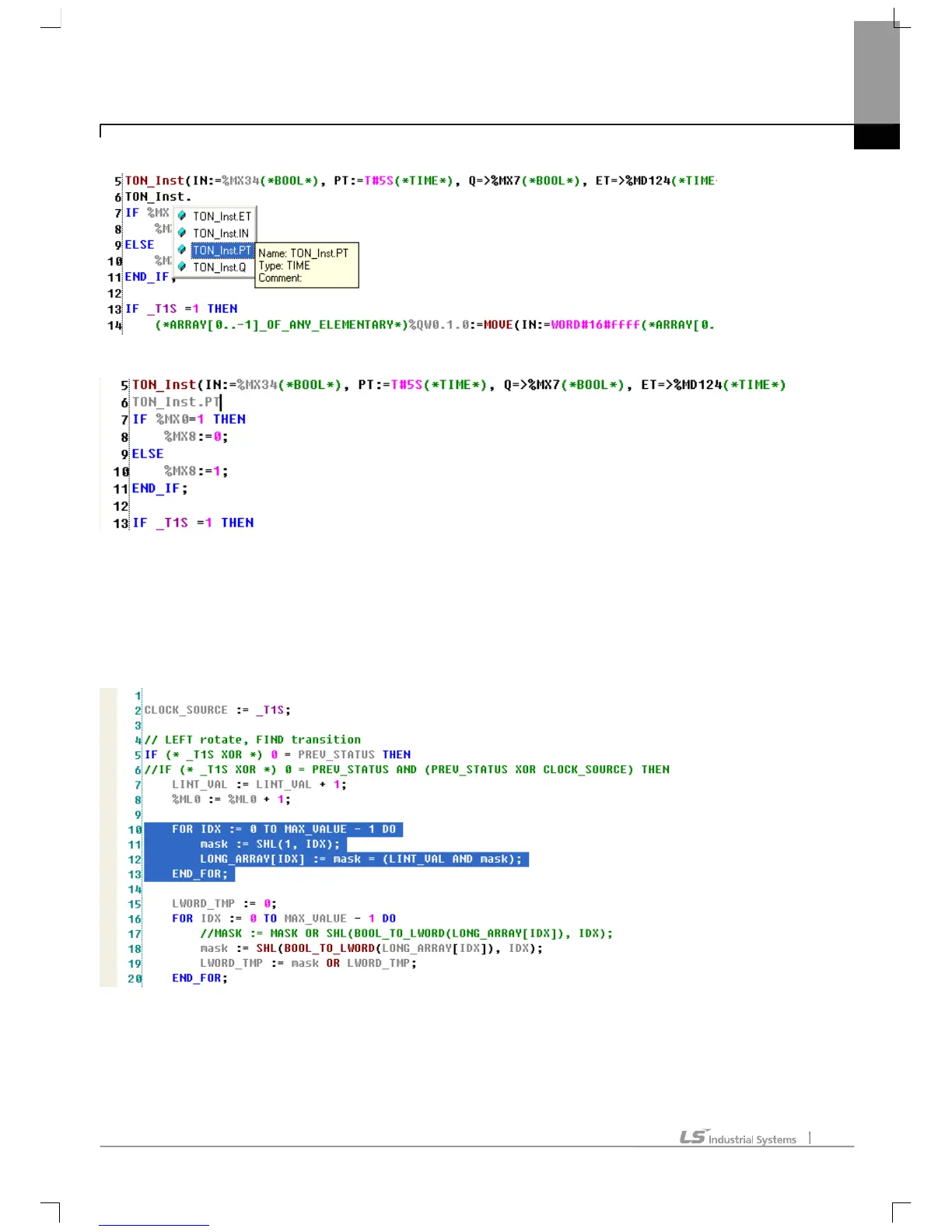

Chapter 17 ST Edition

17-21

2. Select member variable to input.

3. Press ‘Enter’ or double –click.

17.5.4 Setting/Removing Block Mask

Sets or removes the Block Mask area. The Block Mask area is not executed.

Block Mask area is indicated by symbol “(*” and “*)”.

1) Setting Block Mask

1. Select area to set Block Mask.
