LS Industrial Systems XG5000 User Manual

Chapter 17 ST Edition
17-11

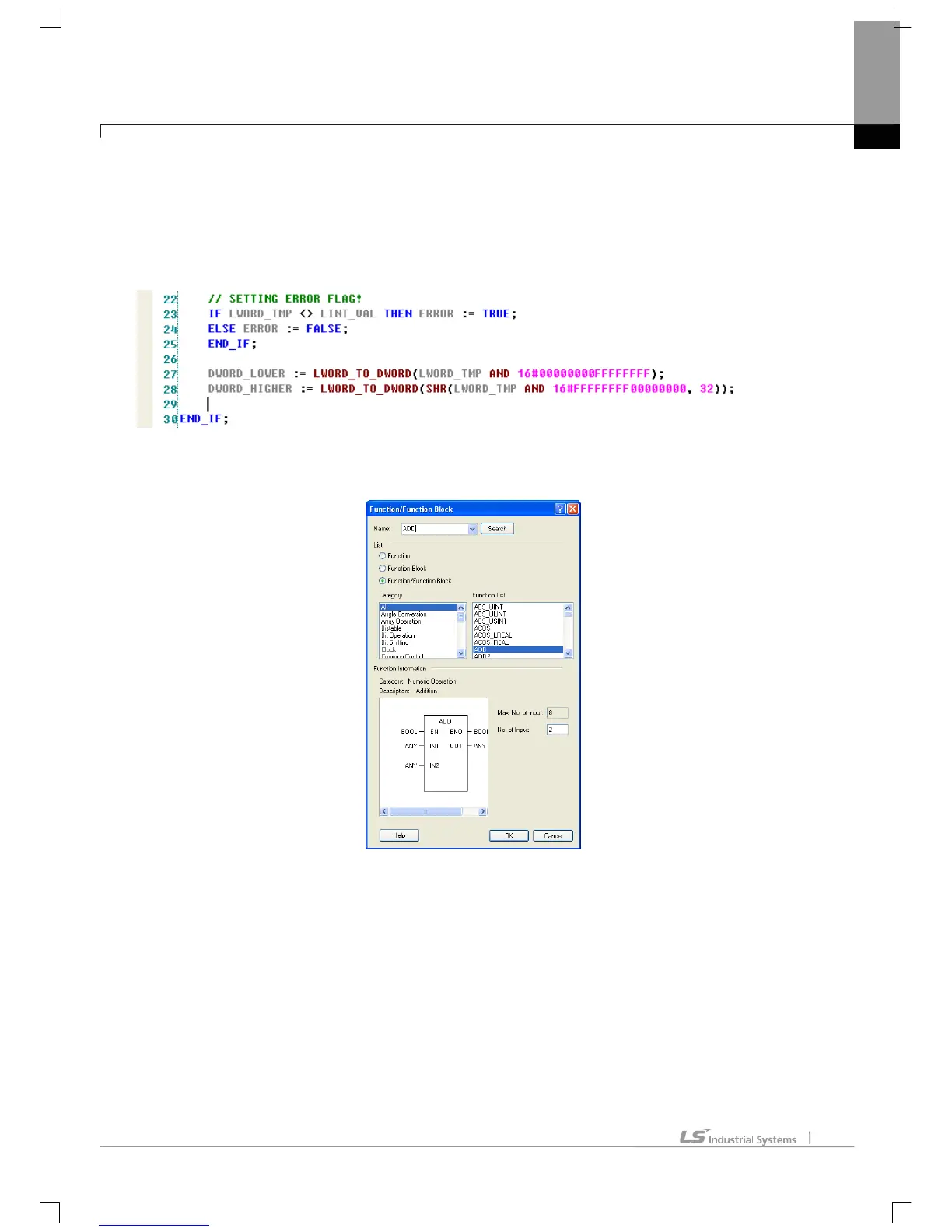

17.3.5 Inserting Function/Function Block
Inserts Function/Function Block at the cursor location.
[Step]
1. Move the cursor to insert.
2. Select [Edit] – [Function/Function Block].
[Dialog box]
[Description of dialog box]
a. Name: inputs name of Function (Block) to use.
b. Search: searches Function (Block) about the inputted name.
c. List: it is used to sort Function, Function Block .
d. Category: indicates category of Function (Block).
e. Function List: displays list of Function (Block) in the selected category.
f. Function Information: displays information of Function (Block). In case of Function, it is available to set properties about input
parameter. In case of Function Block, it is available to set instance name and instance class.
g. OK: applies them and closes window.
h. Cancel: closes window without application.
