Chapter 10 Online

10-19

10.8 Clear PLC

It deletes programs, respective parameter, comment, and memory and latch area in PLC.

[Steps]

1. Select [Online]-[Connect] to connect to PLC.

2. Select [Online]-[Clear PLC].

3. Select items to delete and then click Clear to start Clear PLC.

10.8.1 Clear Item

It deletes the contents of the project saved in PLC.

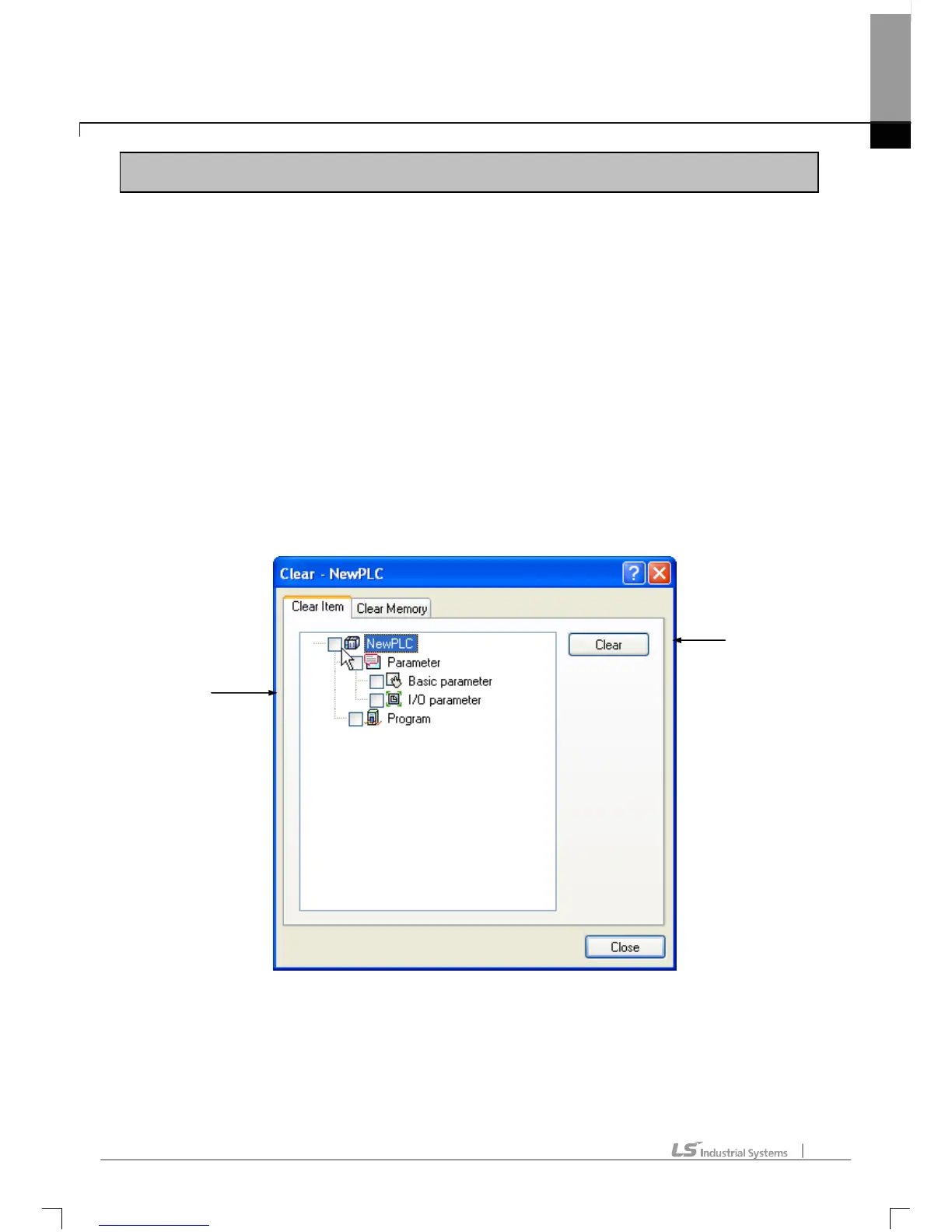

[Dialog Box]

[Description of Dialog Box]

a. List of items to select: shows the items saved in PLC.

b. Clear: deleted the selected items.
