Chapter 5 LD Edit
5-41
Notes
- It may increase or decrease one by one in [View]-[Toolbox]
- The number of contact to set is 9 ~ 32.
- The number of contact points minimally set in LD program used for SFC action and transition is 5.
5.3.9 LD Screen Properties
It is used to designate the properties of View LD Screen. In the screen properties, the options of device,
variable and comment view can be set while magnification and the number of contact points can be set
simultaneously. In addition, the same properties for the entire LD screen can be also set.
[Steps]
1. Select [View]-[LD Properties] on the menu.
2. Change the LD screen properties and click OK.

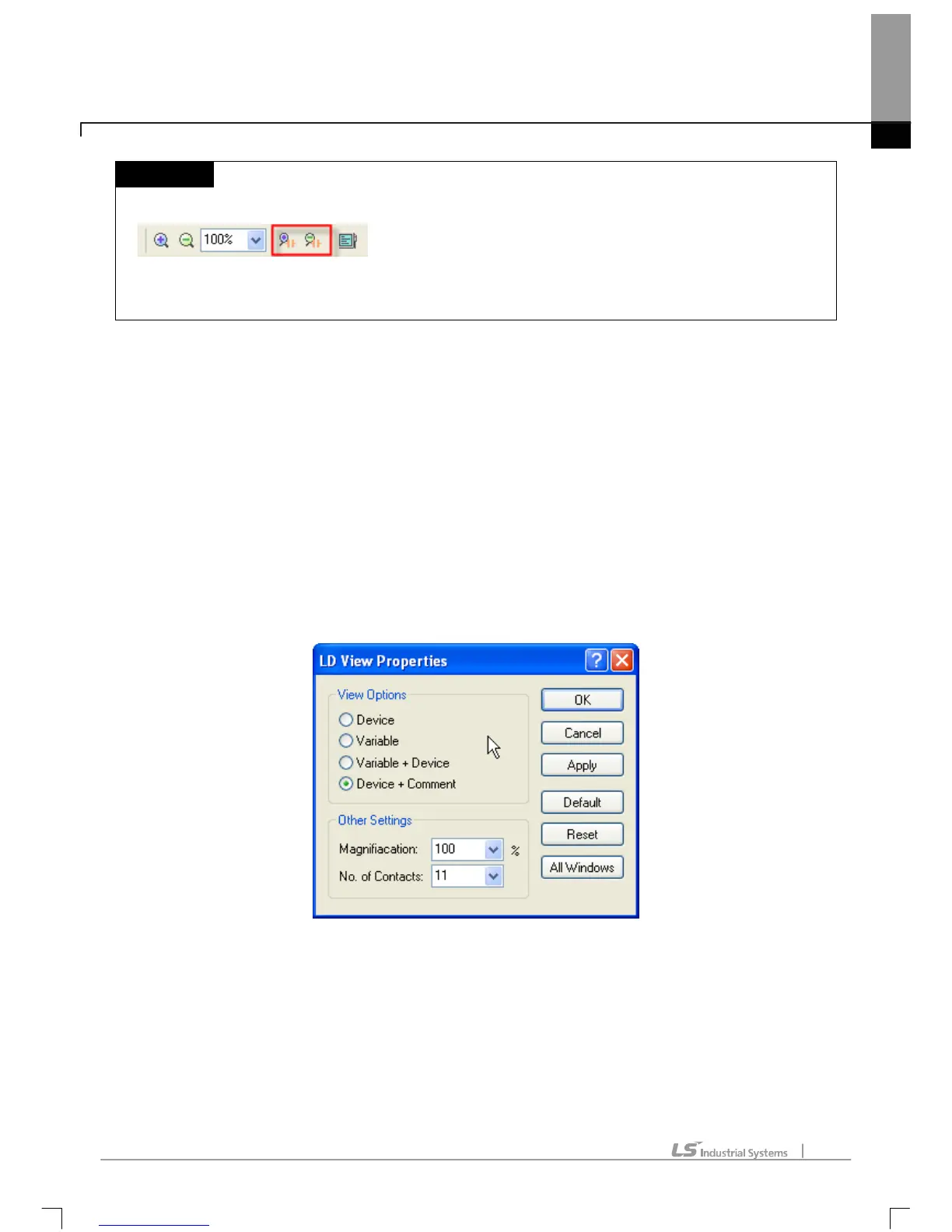

[Dialog Box]
[Comment of Dialog Box]
