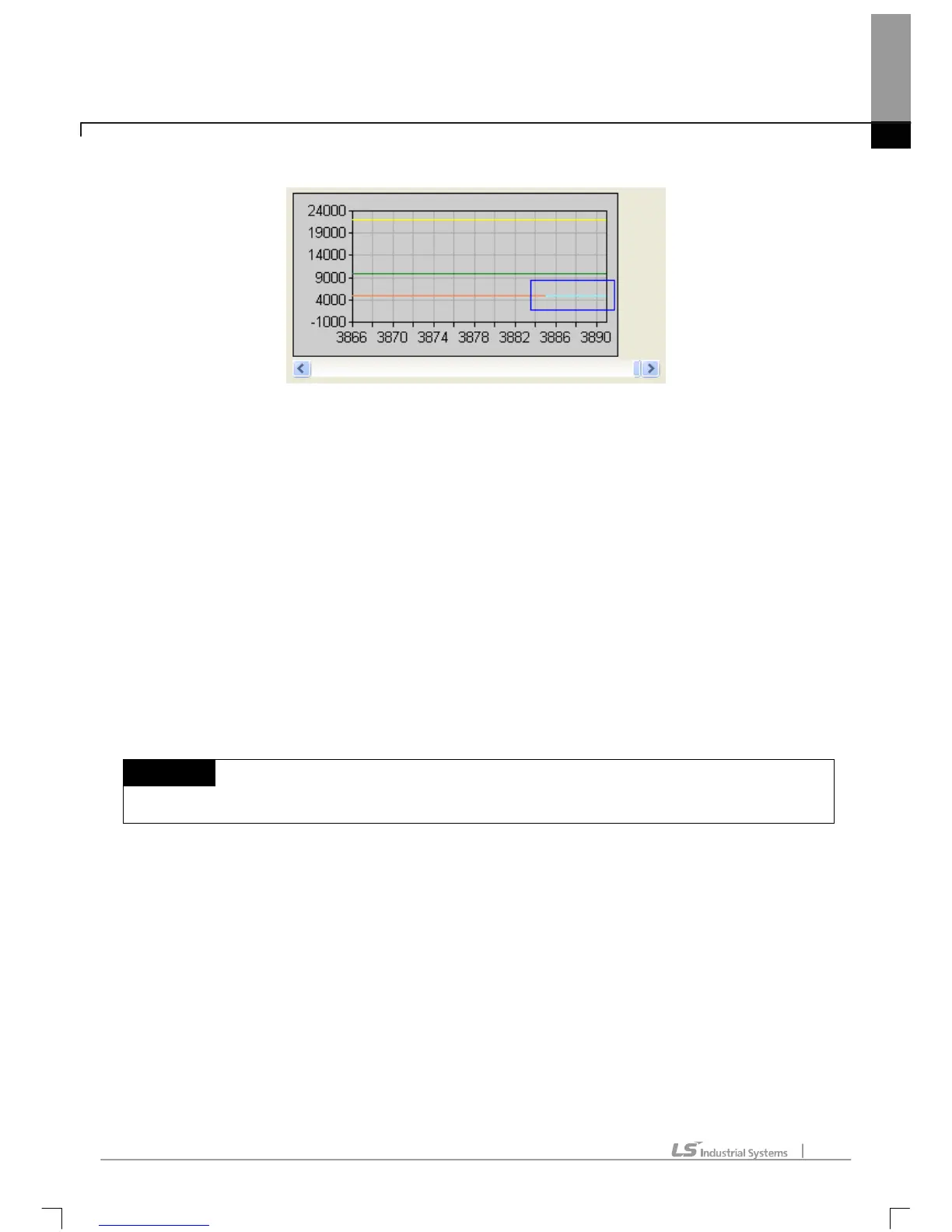

Check the change of graph color
4) Graph initialization
Delete accumulated graph and draw again
[Sequence]
Select [Graph]-[Graph Initialization]
Check graph is renewed from time line 0
11.9.16 Edit function
1) Cell copy
It is used to execute copy of cell unit among detail setting value of PID monitor
[Sequence]
Select cell to copy and after pressing the right button of mouse, select [Cell Copy]
Note
Since copy of bit data is not possible, [Cell Copy] menu is not activated.
2) Cell Paste
It is used to paste value with cell unit among detail setting value of PID monitor
[Sequence]
Select cell to copy and after pressing the right button of mouse, select [Cell Copy]
Select [Cell Paste] after pressing the right button of mouse at cell you want to paste
