Chapter 5 LD Edit
5-27
5.2.11 Insert Extended Function
It is used to insert the extended function such as insert/call subroutine and program end.
[Steps]
1. Move the cursor to the position to insert an extended function.
2. Select [Edit]-[Tools]-[Extended Function] on the menu.
3. Select an extended function to insert and click OK.

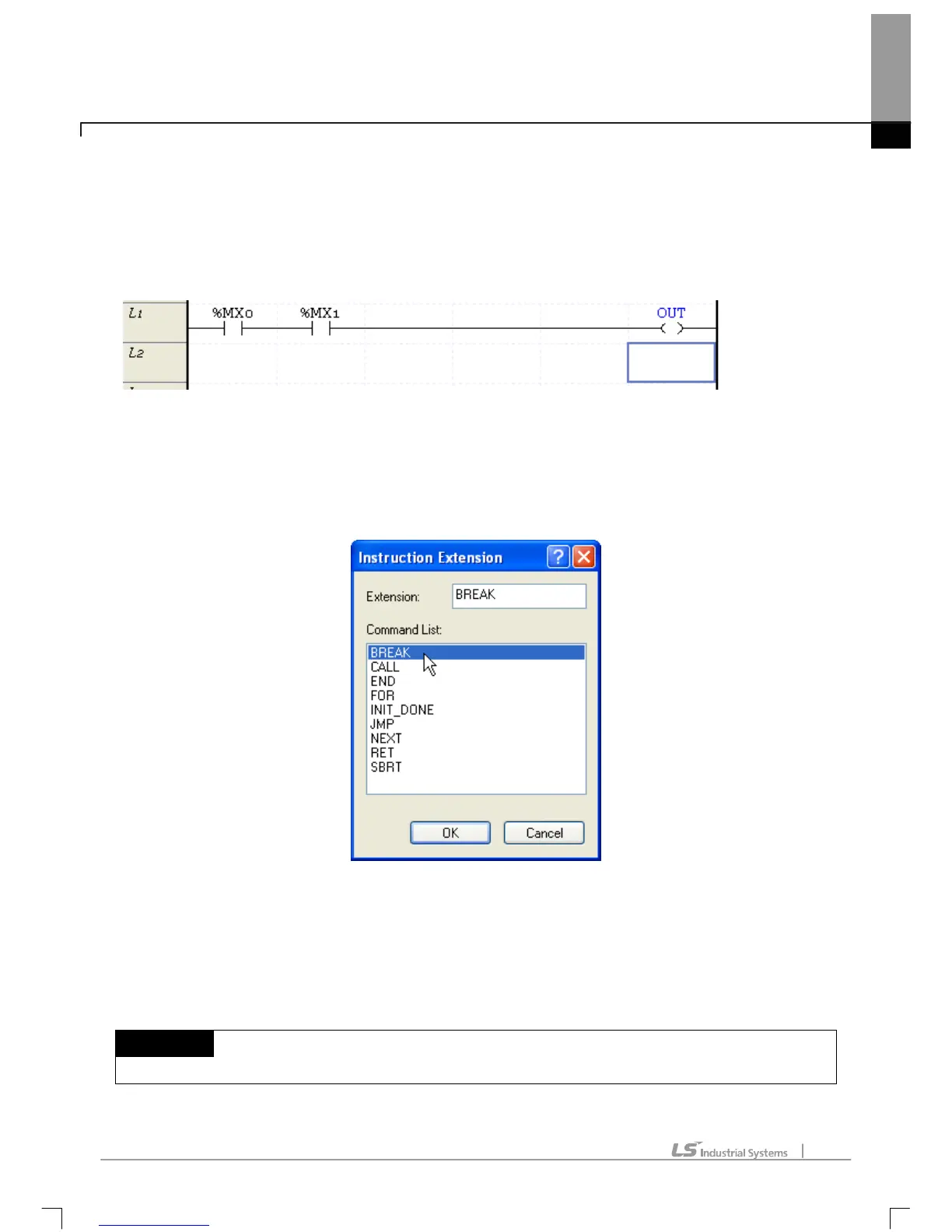

[Dialog Box]
[Comment of Dialog Box]
a. Extended Command: inputs an extended function or displays the input extended function.
b. List of Commands: displays the available extended function.
c. OK: applies a selected item and closes the Dialog Box.
d. Cancel: closes the Dialog Box.
Notes
- Extended commands, SBRT and RET can not be inserted at LD used in SFC Action and Transition.
