Chapter 19 Exclusive Functions for Event Input Module

19-9

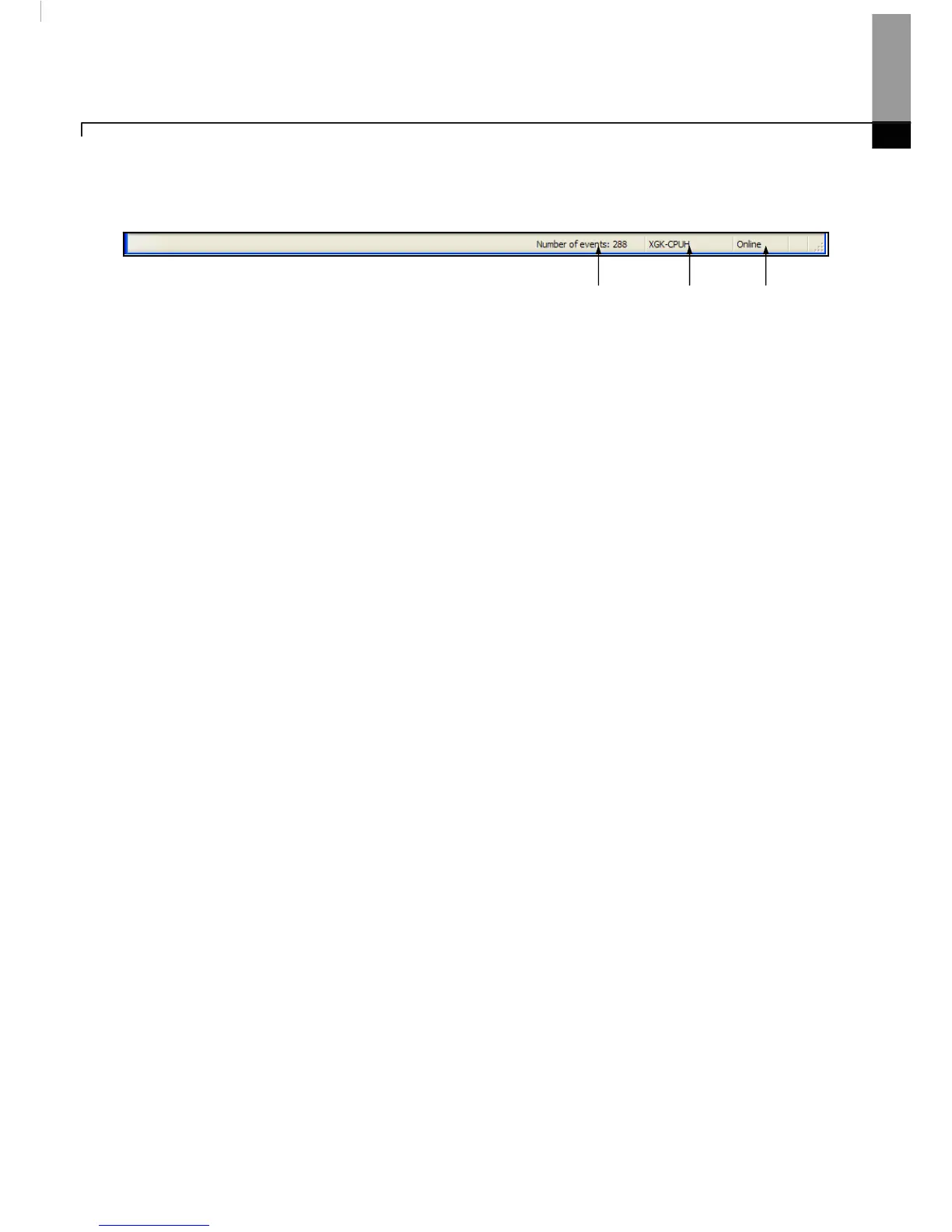

19.2.4 Status Bar

[Dialog]

[Dialog] description;

a. Event No.: show the number of the events in the event monitor window.

b. PLC name: show the name of the PLC connected with the SOE monitor.

c. Online: show the PLC connection status of the SOE monitor.

a b
