Learning to Perform Basic Operations
Press the [▲] key to change it to 2 (Potentiometer), and
then press the [ENT] key.
The new parameter value will flash.
Press the [ENT] key once again.
The Frq code is displayed again. The frequency input
has been configured for potentiometer.
Press the [▼] key 4 times.
Returns to the first code of the Operation group (0.00).
From here frequency setting values can be monitored.
Adjust the potentiometer to increase or decrease the
frequency reference to 10Hz.
Press the [RUN] key on the keypad.
The RUN indicator light flashes and the FWD indicator
light comes on steady. The current acceleration
frequency is displayed.
When the frequency reaches the reference (10Hz),
press the [STOP/RESET] key on the keypad.
The RUN indicator light flashes again and the current
deceleration frequency is displayed. When the frequency
reaches 0Hz, the RUN and FWD indicator lights turn off,
and the frequency reference (10.00Hz) is displayed
again.

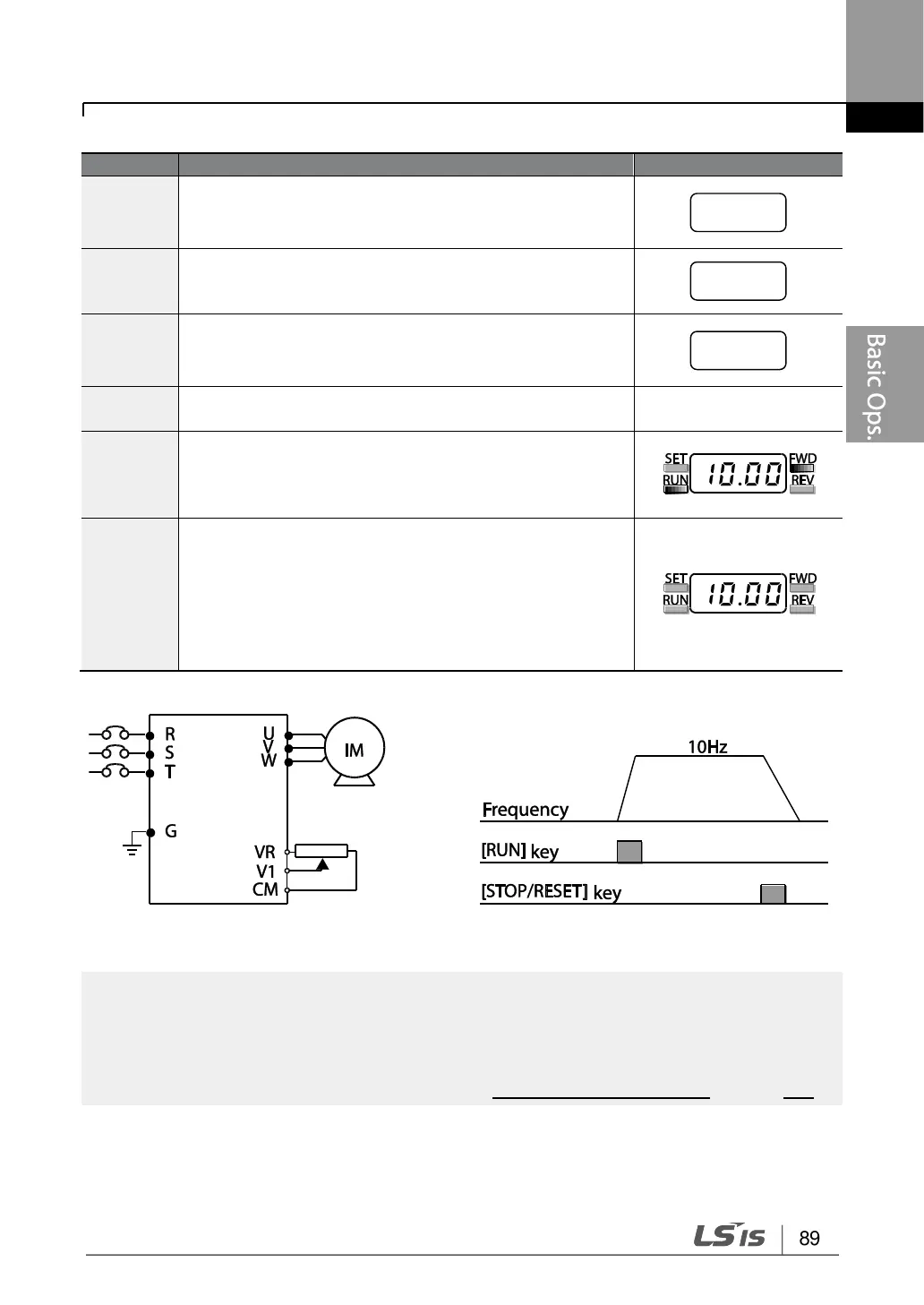

[Wiring Diagram] [Operation Pattern]
The instructions in the table are based on the factory default parameter settings. The inverter
may not work correctly if the default parameter settings are changed after the inverter is
purchased. In such cases, initialize all parameters to reset the factory default parameter settings
before following the instructions in the table (refer to 5.23 Parameter Initialization on page 223).
