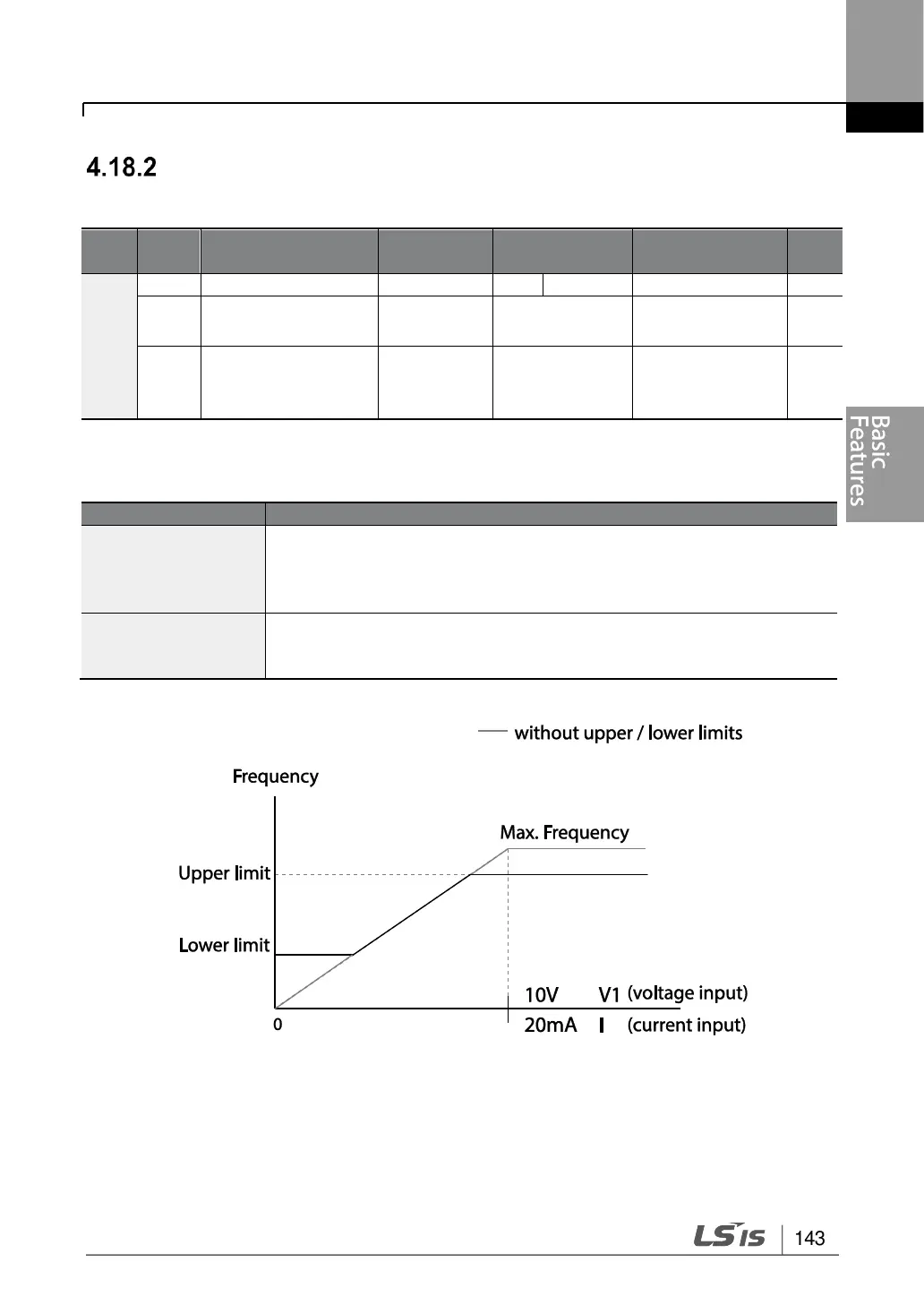

LSIS LSLV-S100 - Frequency Limit Using Upper and Lower Limit Frequency Values

143
Learning Basic Features
Frequency Limit Using Upper and Lower Limit Frequency
Values
Grou
p
Code
Name
LCD Display
Parameter
Setting
Setting Range
Unit
Ad
24
Frequency limit
Freq Limit
0
No
0–1
-
25
Frequency lower limit
value
Freq Limit Lo
0.50
0.0–maximum
frequency
Hz
26
Frequency upper
limit value
Freq Limit Hi
Maximum
frequency
minimum–
maximum
frequency
Hz
Frequency Limit Using Upper and Lower Limit Frequencies - Setting Details
Code
Description
Ad.24 Freq Limit
The initial setting is 0(No). Changing the setting to 1(Yes) allows the
setting of frequencies between the lower limit frequency (Ad.25) and the
upper limit frequency (Ad.26). When the setting is 0(No), codes Ad.25
and Ad.26 are not visible.
Ad.25 Freq Limit Lo,
Ad.26 Freq Limit Hi
Set an upper limit frequency to all speed unit parameters that are
expressed in Hz or rpm, except for the base frequency (dr.18).
Frequency cannot be set higher than the upper limit frequency.
