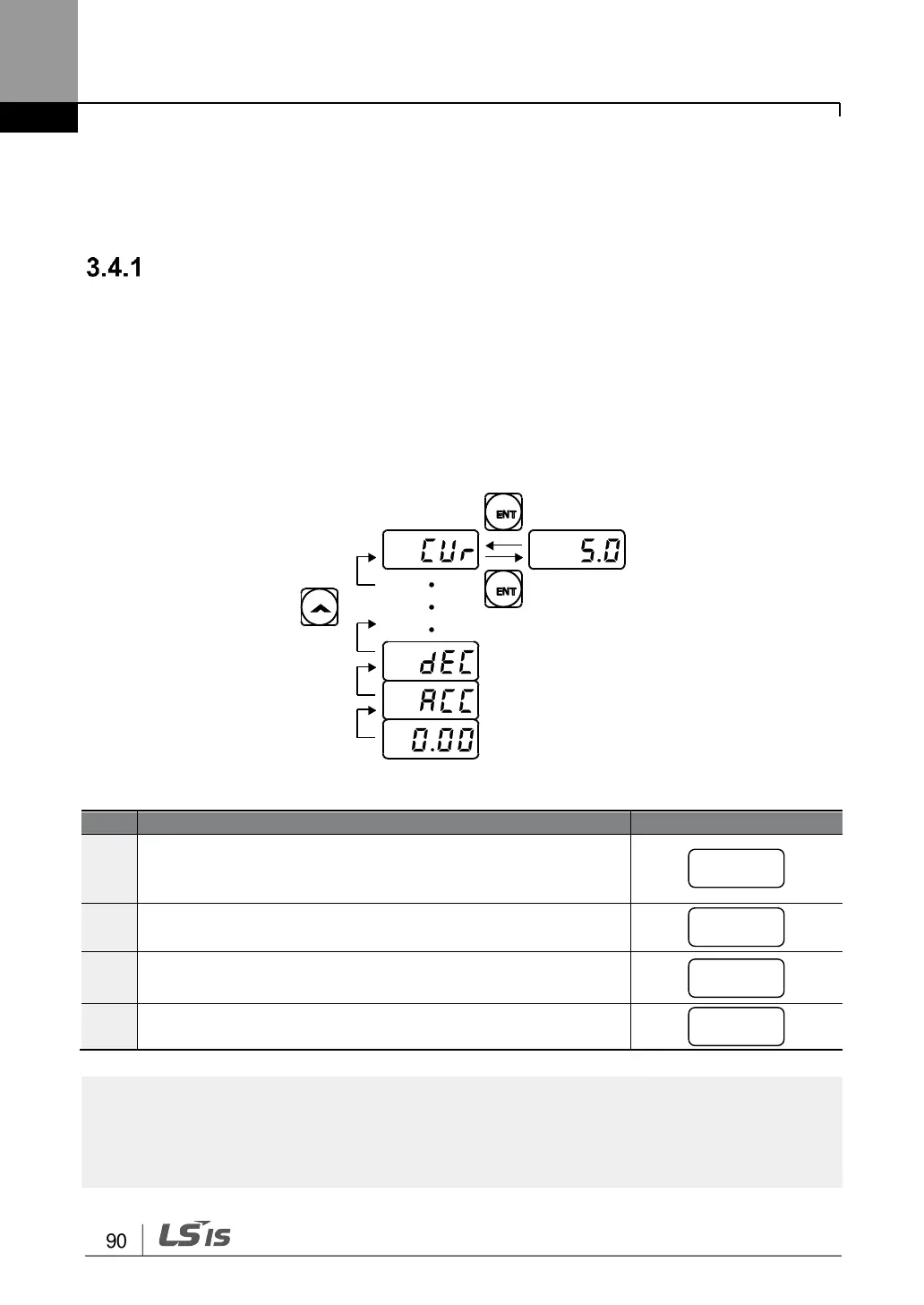

Learning to Perform Basic Operations
90
3.4 Monitoring the Operation
0.4-22kW Models
3.4.1.1 Output Current Monitoring
The following example demonstrates how to monitor the output current in the Operation
group using the keypad.
Step
Instruction
Keypad Display
1
Ensure that the first code of the Operation group is
selected, and the code 0.00 (Command Frequency) is
displayed.
2
Press the [] or [] key to move to the Cur code.
3
Press the [ENT] key.
The output current (5.0A) is displayed.
4
Press the [ENT] key again.
Returns to the Cur code.
Note
You can use the dCL (DC link voltage monitor) and vOL (output voltage monitor) codes in the
Operation group in exactly the same way as shown in the example above, to monitor each
function’s relevant values.
0.00
cur
5.0
cur
