LSIS LSLV-S100 User Manual

Learning to Perform Basic Operations
86
Frequency Setting (Keypad) and Operation (via Terminal
Input)
Step
Instruction
Keypad Display
1
Turn on the inverter.
-
2
Ensure that the first code of the Operation group is selected,
and code 0.00 (Command Frequency) is displayed, then
press the [ENT] key.
The first digit on the right will flash.
3
Press the [◀] key 3 times to go to the 10s place position.
The number ‘0’ at the 10s place position will flash.
4
Press the [▲] key to change it to 1, and then press the [ENT]
key.
The parameter value (10.00) will flash.
5
Press the [ENT] key once again to save changes.
A change of reference frequency to 10.00 Hz has been
completed.
6
Refer to the wiring diagram at the bottom of the table, and
close the switch between the P1 (FX) and CM terminals.
The RUN indicator light flashes and the FWD indicator light
comes on steady. The current acceleration frequency is
displayed.
7
When the frequency reference is reached (10Hz), open the
switch between the P1 (FX) and CM terminals.
The RUN indicator light flashes again and the current
deceleration frequency is displayed. When the frequency
reaches 0Hz, the RUN and FWD indicator lights turn off, and
the frequency reference (10.00Hz) is displayed again.

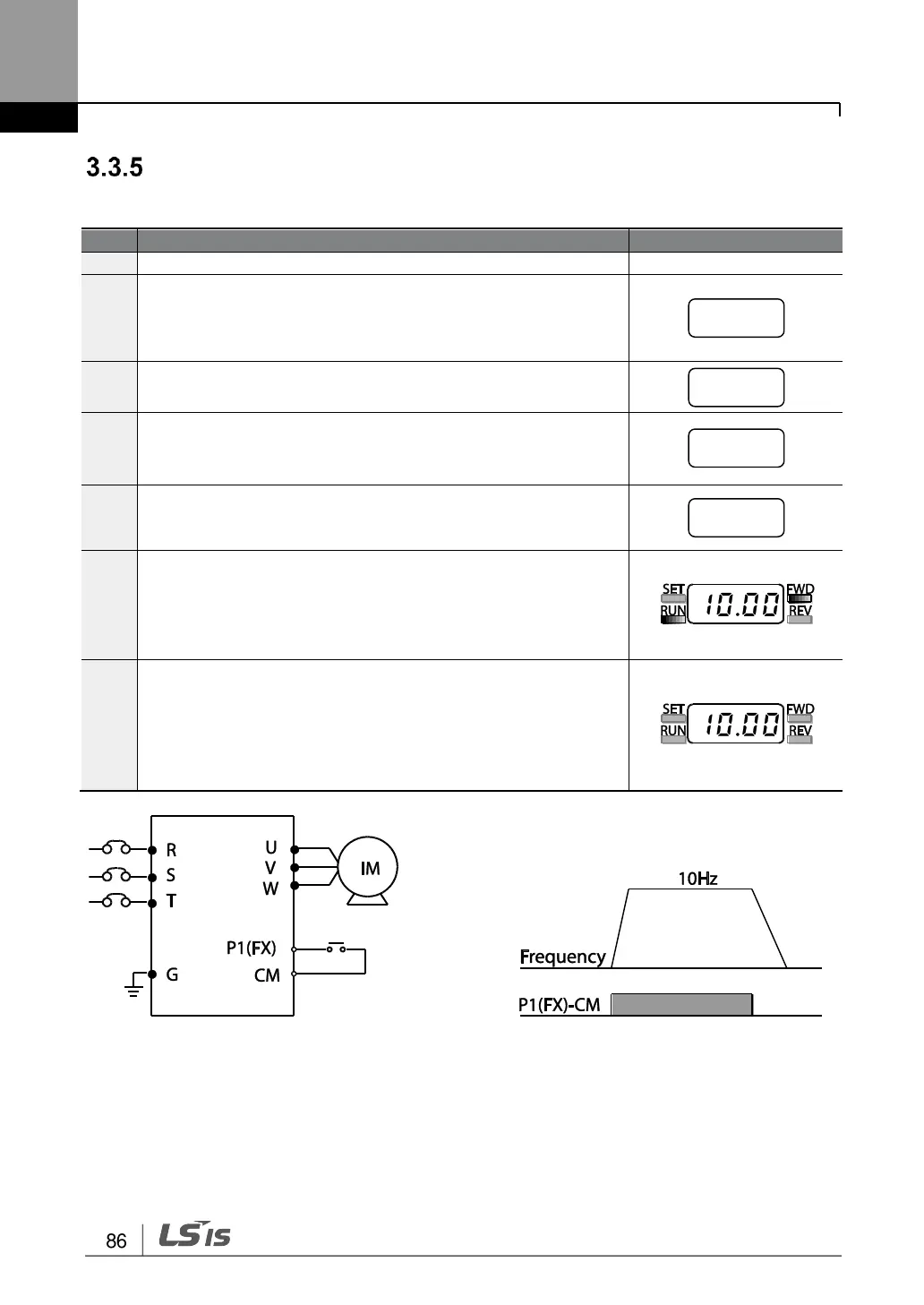

[Wiring Diagram] [Operation Pattern]
0.0)
)0.00
!),))
10.00
