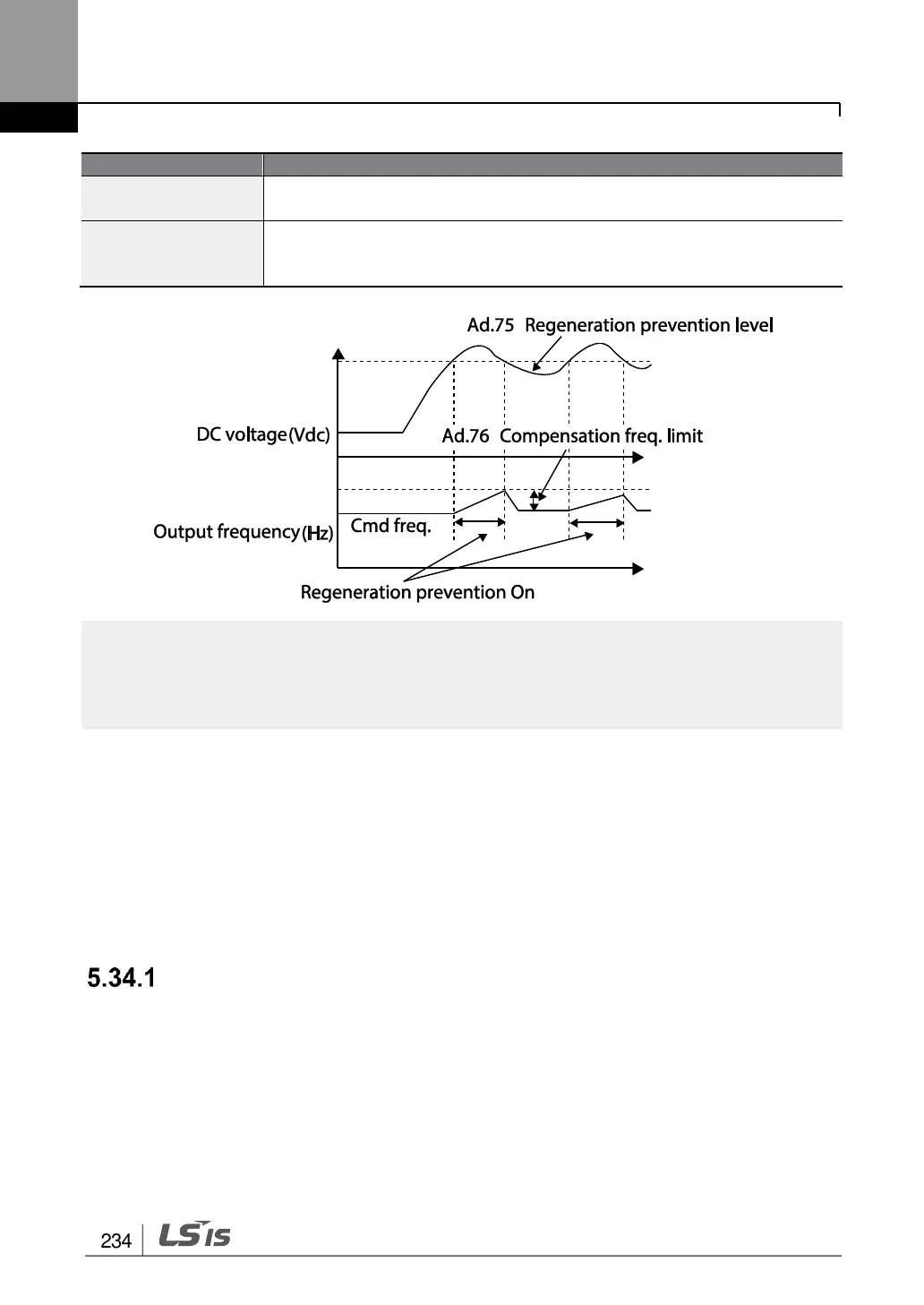

Learning Advanced Features
Set alternative frequency width that can replace actual operation
frequency during regeneration prevention.
Ad.77 RegenAvd
Pgain, Ad.78
RegenAvd Igain
To prevent regeneration zone, set P gain/I gain in the DC link voltage
supress PI controller.
Press regeneration prevention does not operate during accelerations or decelerations, but it only
operates during constant speed motor operation. When regeneration prevention is activated,
output frequency may change within the range set at Ad.76 (CompFreq Limit).
5.34 Analog Output
An analog output terminal provides output of 0–10V voltage, 4–20mA current, or 0–32kHz
pulse.
Voltage and Current Analog Output
An output size can be adjusted by selecting an output option at AO1, AO2 (Analog Output)
terminal. Set the analog voltage/current output terminal setting switch (SW3) to change the
output type (voltage/current).
