Learning to Perform Basic Operations
82

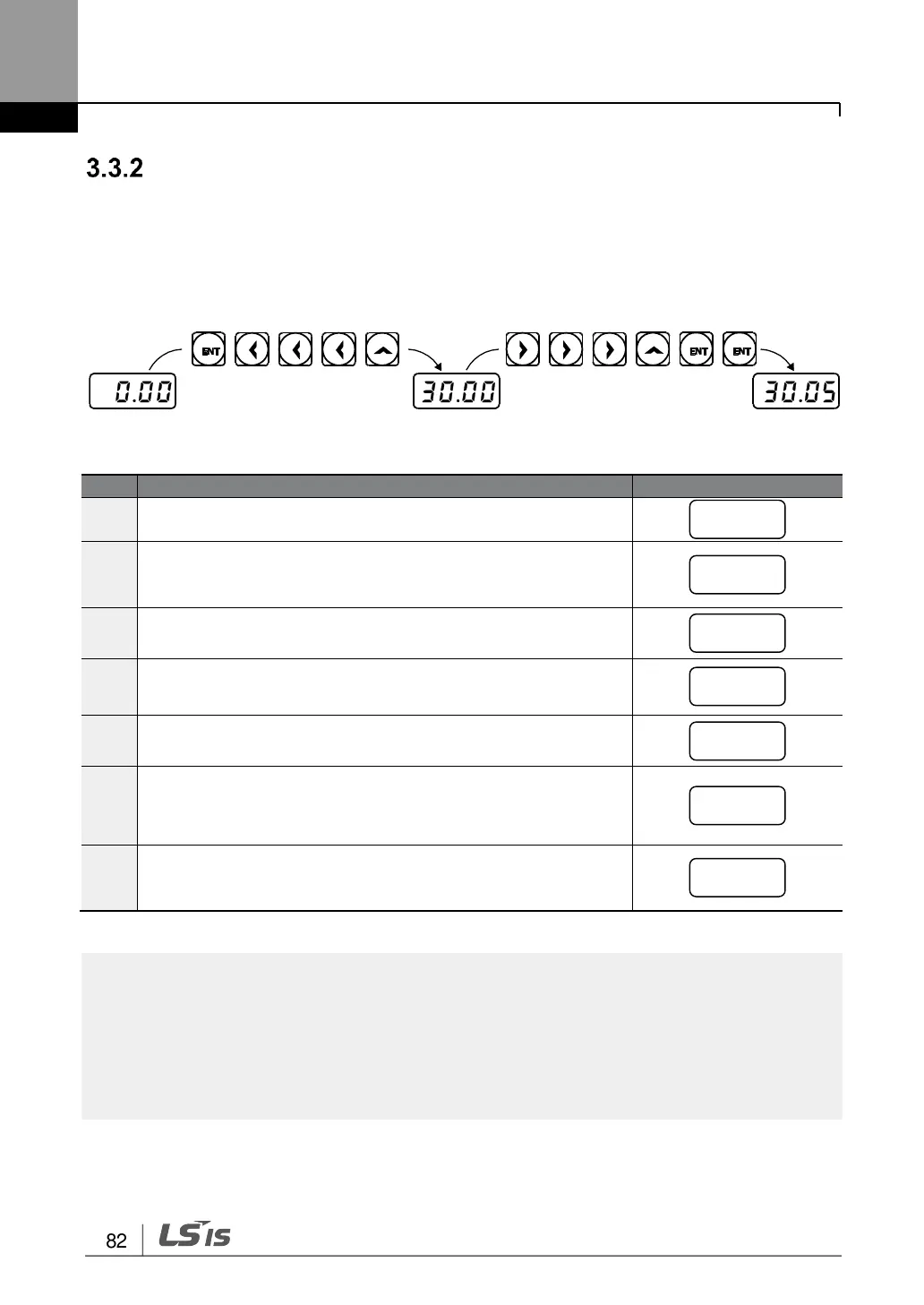

Frequency Reference Configuration (0.4-22kW models
only)
The following is an example to demonstrate configuring a frequency reference of 30.05 (Hz)
from the first code in the Operation group (0.00).
Step
Instruction
Keypad Display
1
Ensure that the first code of the Operation group is selected,
and the code 0.00 (Command Frequency) is displayed.
2
Press the [ENT] key.
The value, 0.00 will be displayed with the ‘0’ in the 1/100s
place value flashing.
3
Press the [◀] key 3 times to move to the 10s place value.
The ‘0’ at the 10s place value will start to flash.
4
Press the [▲] key to change it to ‘3,’ the 10s place value of
the target frequency, ‘30.05.’
5
Press the [▶] key 3 times.
The ‘0’ at the 1/100s place position will flash.
6
Press the [▲] key to change it to ‘5,’ the 1/100 place value of
the target frequency, ‘30.05,’ and then press the [ENT] key.
The parameter value will flash on the display.
7
Press the [ENT] key once again to save changes.
Flashing stops. The frequency reference has been configured
to 30.05 Hz.
Note
• A flashing number on the display indicates that the keypad is waiting for an input from the
user. Changes are saved when the [ENT] key is pressed while the value is flashing.
Changes will be canceled if any other key is pressed.
• The S100 inverter keypad display can display up to 4 digits. However, 5-digit figures can be
used and are accessed by pressing the [◀] or [▶] key, to allow keypad input.
0.00
0.0)
)0.00
#0.00
30.0)
#),)%
30.05
