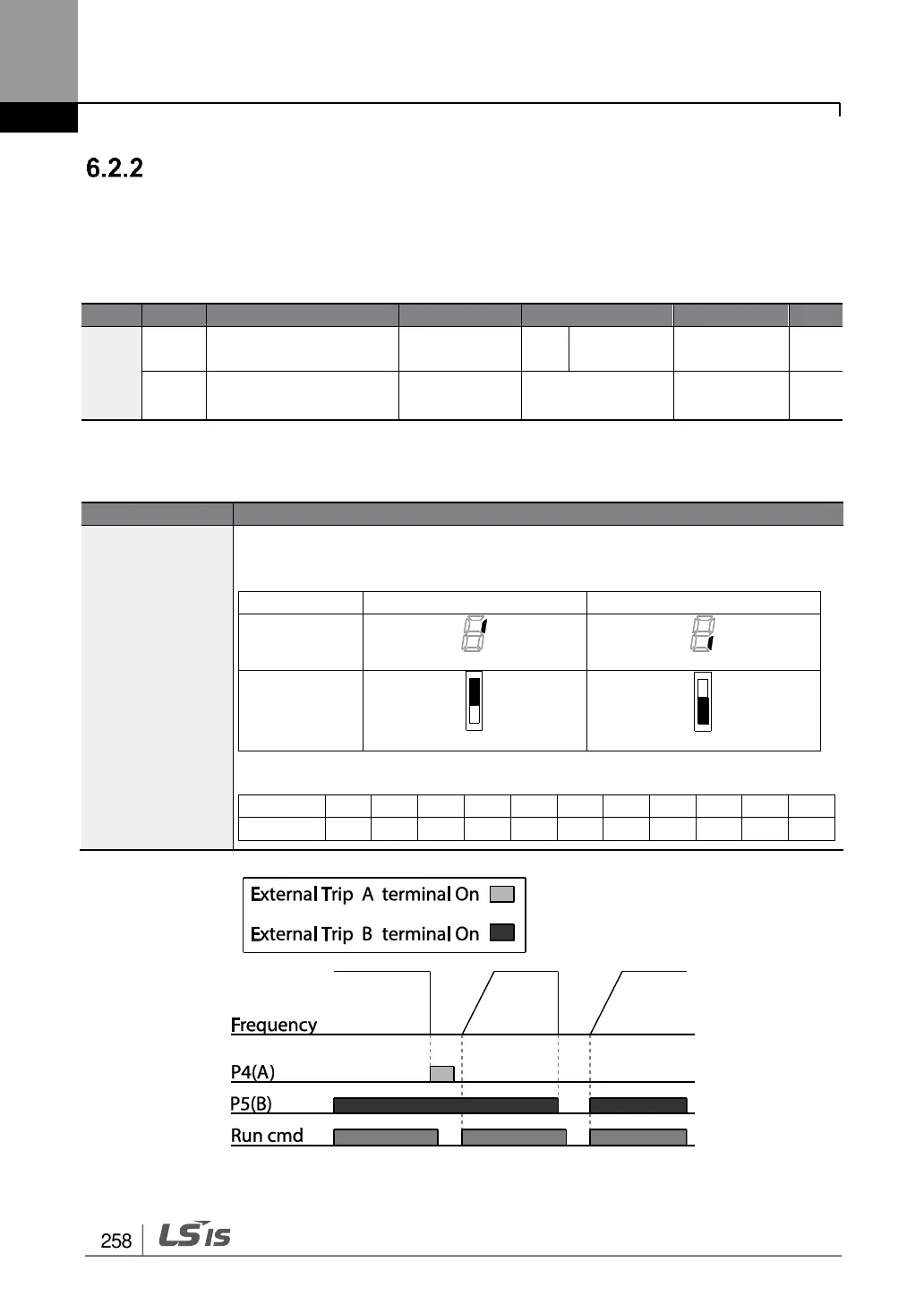

Learning Protection Features
External Trip Signal
Set one of the multi-function input terminals to 4 (External Trip) to allow the inverter to stop
operation by using external signals.
Group
Code
Name
LCD Display
Parameter Setting
Setting range
Unit
In
65-71
Px terminal setting
options
Px Define
(Px: P1-P7)
4
External
Trip
-
-
87
Multi-function input
contact selction
DI NC/NO Sel
0000000
-
bit
External Trip Signal Setting Details
Code
Description
In.87 DI NC/NO
Sel
Selects the type of input contact. If the mark of the switch is at the bottom (0),
it operates as an A contact (Normally Open). If the mark is at the top (1), it
operates as a B contact (Normally Closed).
Item
Bit On
Bit Off
Keypad
LCD loader
The corresponding terminals for each bit are as follows:
Bit
11
10
9
8
7
6
5
4
3
2
1
Terminal
P7
P6
P5
P4
P3
P2
P1
