Learning Advanced Features
237

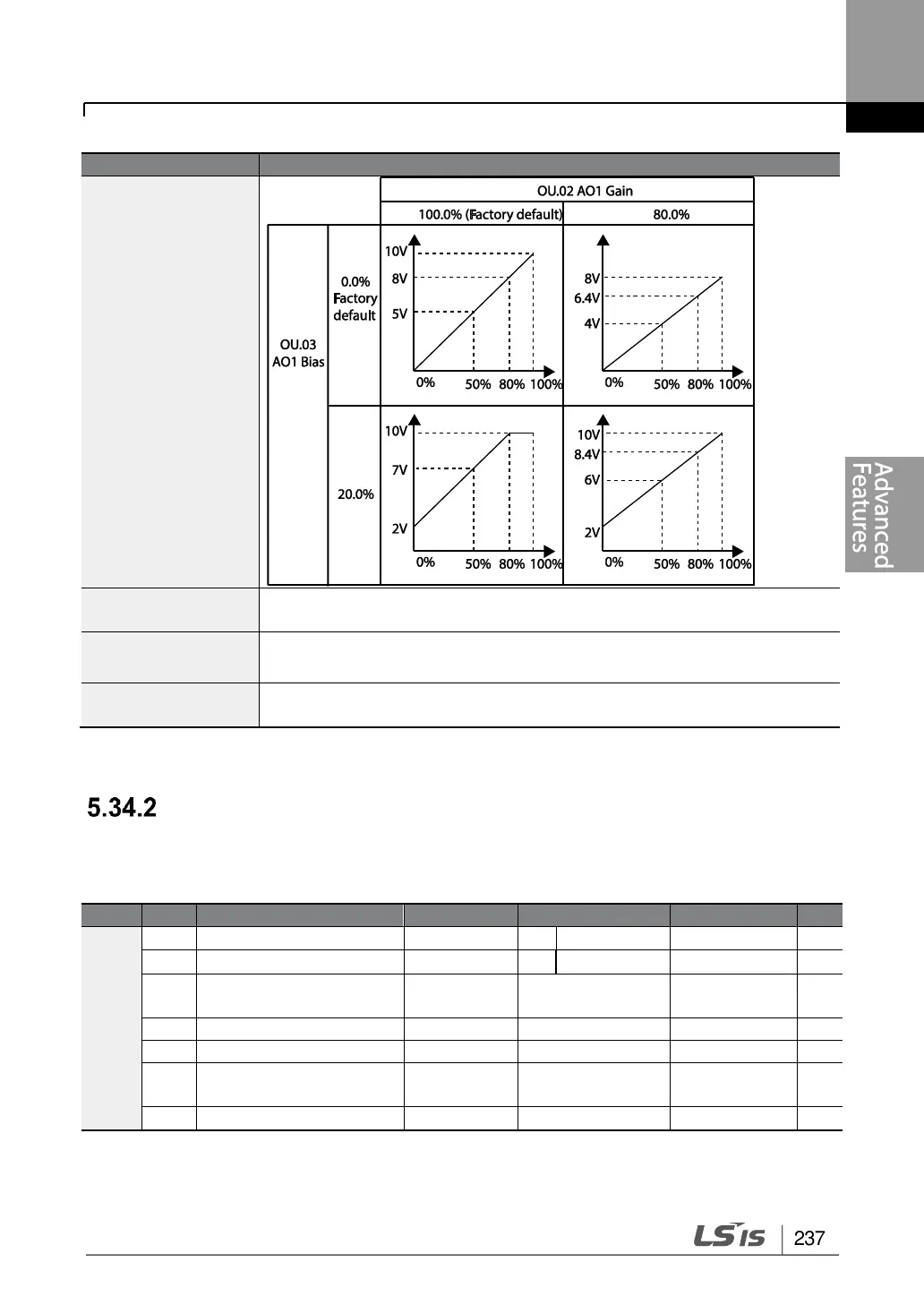

Code
Description
OU.04 AO1 Filter,
OU.10 AO2 Filter
Set filter time constant on analog output.
OU.05 A01 Const %,
OU.11 A02 Const %
If analog output at OU.01 (AO1 Mode) is set to 15(Constant), the analog
voltage output is dependent on the set parameter values (0–100%).
OU.06 AO1 Monitor,
OU.12 AO2 Monitor
Monitors analog output value. Displays the maximum output voltage as a
percentage (%) with 10V as the standard.
Analog Pulse Output
Output item selection and pulse size adjustment can be made for the TO (Pulse Output)
terminal.
Group
Code
Name
LCD Display
Parameter Setting
Setting Range
Unit
OU
33
Multi-function output 1
Q1 define
39
TO
0–38
-
61
Pulse output setting
TO Mode
0
Frequency
0–15
-
62
Pulse output gain
TO Gain
100.0
-1000.0–
1000.0
%
63
Pulse output bias
TO Bias
0.0
-100.0-100.0
%
64
Pulse output filter
TO Filter
5
0–10000
ms
65
Pulse output constant
output2
TO Const %
0.0
0.0-100.0
%
66
Pulse output monitor
TO Monitor
0.0
0.0–1000.0
%
