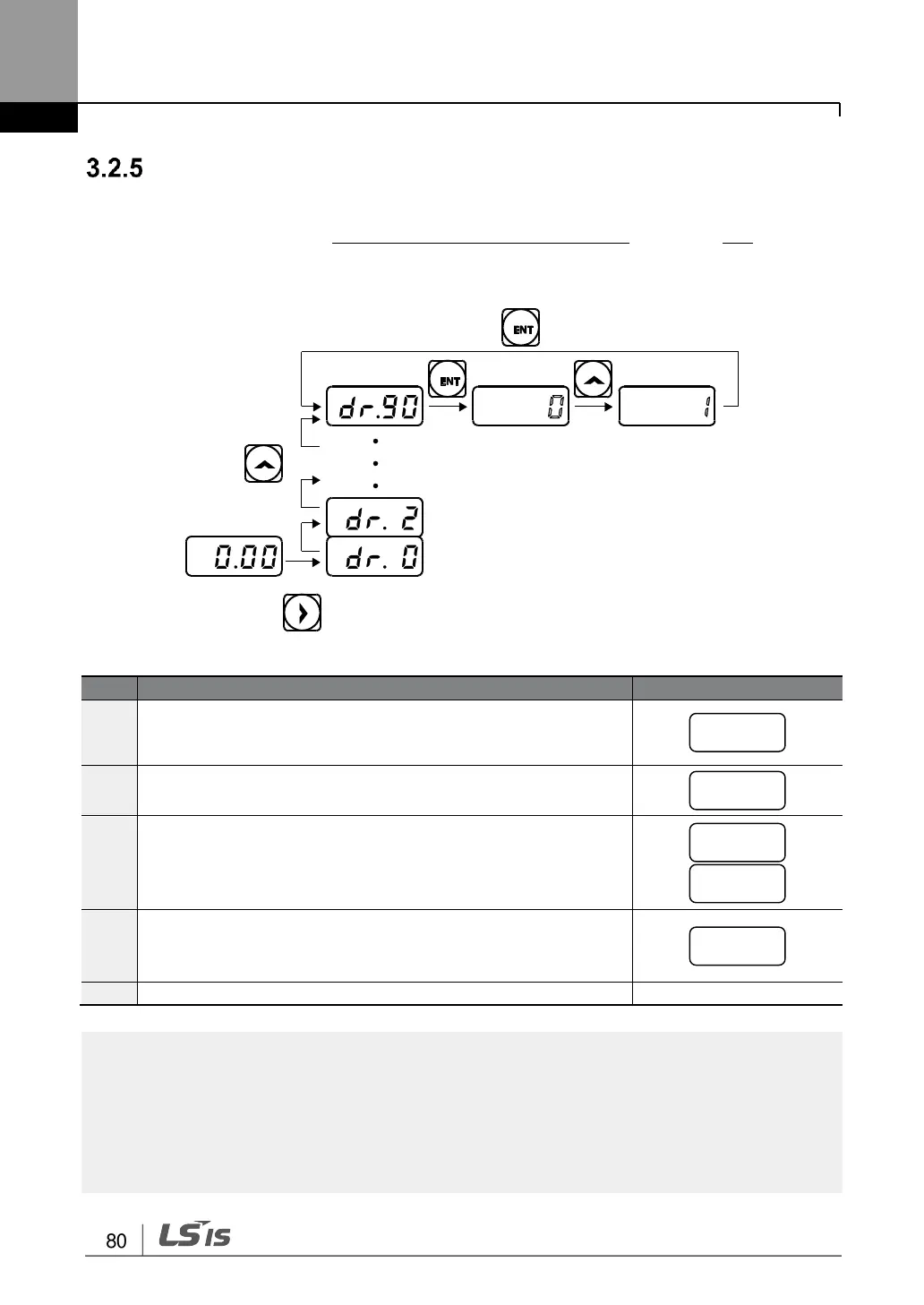

Configuring the [ESC] Key (0.4-22kW models only)
The [ESC] key is a multi-functional key that can be configured to carry out a number of
different functions. Refer to 4.6 Local/Remote Mode Switching on page 120 for more
information about the other functions of the [ESC] key. The following example shows how to
configure the [ESC] key to perform a jog operation.
Step
Instruction
Keypad Display
1
Ensure that you are currently at the first code of the Operation
group, and that code 0.00 (Command Frequency) is
displayed.
2
Press the [▶] key.
You have moved to the initial code of the Drive group (dr.0).
3
Press the [▲] or [▼] key to select code 90 (ESC key
configuration), and then press the [ENT] key.
Code dr.90 currently has an initial parameter value of, 0
(adjust to the initial position).
4
Press the [▲] key to modify the value to 1 (Jog key) and then
press the [ENT] key.
The new parameter value will flash.
5
Press the [ENT] key again to save changes.
-
Note
• If the code dr. 90 (ESC key configuration) is set to 1 (JOG Key) or 2 (Local/Remote), the
SET indicator will flash when the [ESC] key is pressed.
• The factory default setting for code dr. 90 is 0 (move to the initial position). You can navigate
back to the initial position (code 0.00 of the Operation group) immediately, by pressing the
[ESC] key while configuring any codes in any groups.
0.00
dr.0
)
dr.90
!
