LSIS LSLV-S100 User Manual

119
Learning Basic Features
Terminal Block as a Command Input Device (Run and
Rotation Direction Commands)
Multi-function terminals can be selected as a command input device. This is configured by
setting the drv (command source) code in the Operation group to 2(Fx/Rx-2). Select 2
terminals for run and rotation direction commands, and then select the relevant codes (2 of
the 5 multi-function terminal codes, In.65–71 for P1–P7) to 1(Fx) and 2(Rx) respectively.
This application uses an Fx input as a run command, and an Rx input to change a motor’s
rotation direction (On-Rx, Off-Fx).
Group
Code
Name
LCD Display
Parameter Setting
Setting
Range
Unit
Operation
Drv
Command source
Cmd Source*
2
Fx/Rx-2
0–5
-
In
65–71
Px terminal
configuration
Px Define (Px:
P1 – P7)
1
Fx
0–54
-
2
Rx
* Displayed under DRV-06 on the LCD keypad.

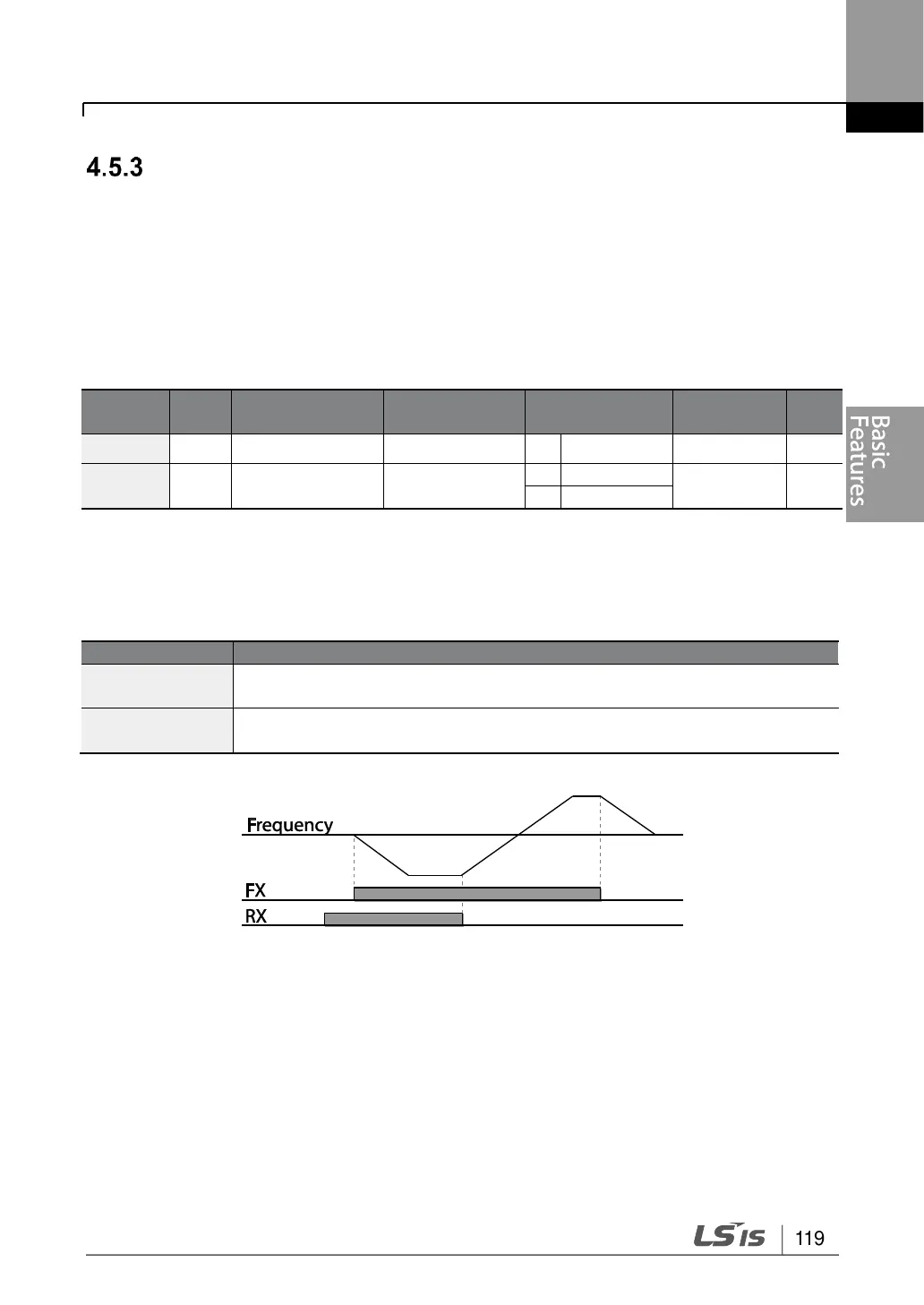

Run Command and Fwd/Rev Change Command Using Multi-function Terminal –
Setting Details
Code
Description
Operation group
drv Cmd Source
Set to 2(Fx/Rx-2).
In.65–71 Px
Define
Assign a terminal for run command (Fx).
Assign a terminal for changing rotation direction (Rx).
