Learning Basic Features
Acc/Dec Time Based on Operation Frequency – Setting Details
Code
Description
bA.08
Ramp T Mode
Set the parameter value to 1 (Delta Freq) to set Acc/Dec times based on
Maximum frequency.
Configuration
Description
0
Max Freq
Set the Acc/Dec time based on Maximum
frequency.
1
Delta Freq
Set the Acc/Dec time based on Operation
frequency.

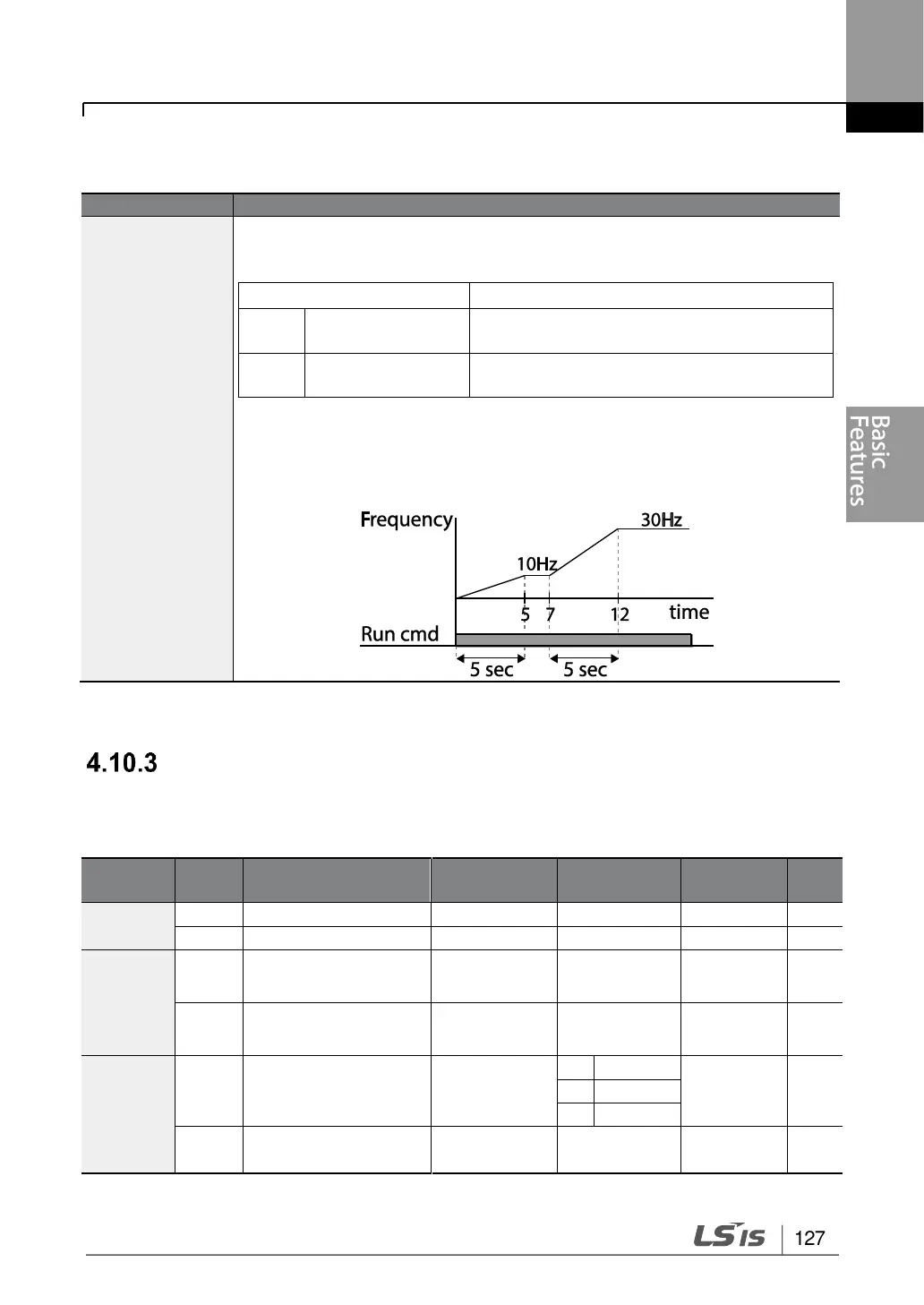

If Acc/Dec times are set to 5 seconds, and multiple frequency references are
used in the operation in 2 steps, at 10Hz and 30 Hz, each acceleration stage
will take 5 seconds (refer to the graph below).
Multi-step Acc/Dec Time Configuration
Acc/Dec times can be configured via a multi-function terminal by setting the ACC
(acceleration time) and dEC (deceleration time) codes in the Operation group.
Group
Code
Name
LCD Display
Parameter
Setting
Setting
Range
Unit
Operation
ACC
Acceleration time
Acc Time
20.0
0.0–600.0
sec
dEC
Deceleration time
Dec Time
30.0
0.0–600.0
sec
bA
70–82
Multi-step
acceleration time1–7
Acc Time 1–7
x.xx
0.0–600.0
sec
71–83
Multi-step
deceleration time1–7
Dec Time 1–7
x.xx
0.0–600.0
sec
In
65–71
Px terminal
configuration
Px Define
(Px: P1–P7)
11
XCEL-L
0–54
-
12
XCEL-M
49
XCEL-H
89
Multi-step command
delay time
In Check
Time
1
1–5000
ms
