Learning Basic Features
Configuring Acc/Dec Time Switch Frequency
You can switch between two different sets of Acc/Dec times (Acc/Dec gradients) by
configuring the switch frequency without configuring the multi-function terminals.
Group
Code
Name
LCD Display
Parameter
Setting
Setting
Range
Unit
Operation
ACC
Acceleration time
Acc Time
10.0
0.0–600.0
sec
dEC
Deceleration time
Dec Time
10.0
0.0–600.0
sec
bA
70
Multi-step
acceleration time1
Acc Time-1
20.0
0.0–600.0
sec
71
Multi-step
deceleration time1
Dec Time-1
20.0
0.0–600.0
sec
Ad
60
Acc/Dec time
switch frequency
Xcel Change
Frq
30.00
0–Maximum
frequency
Hz

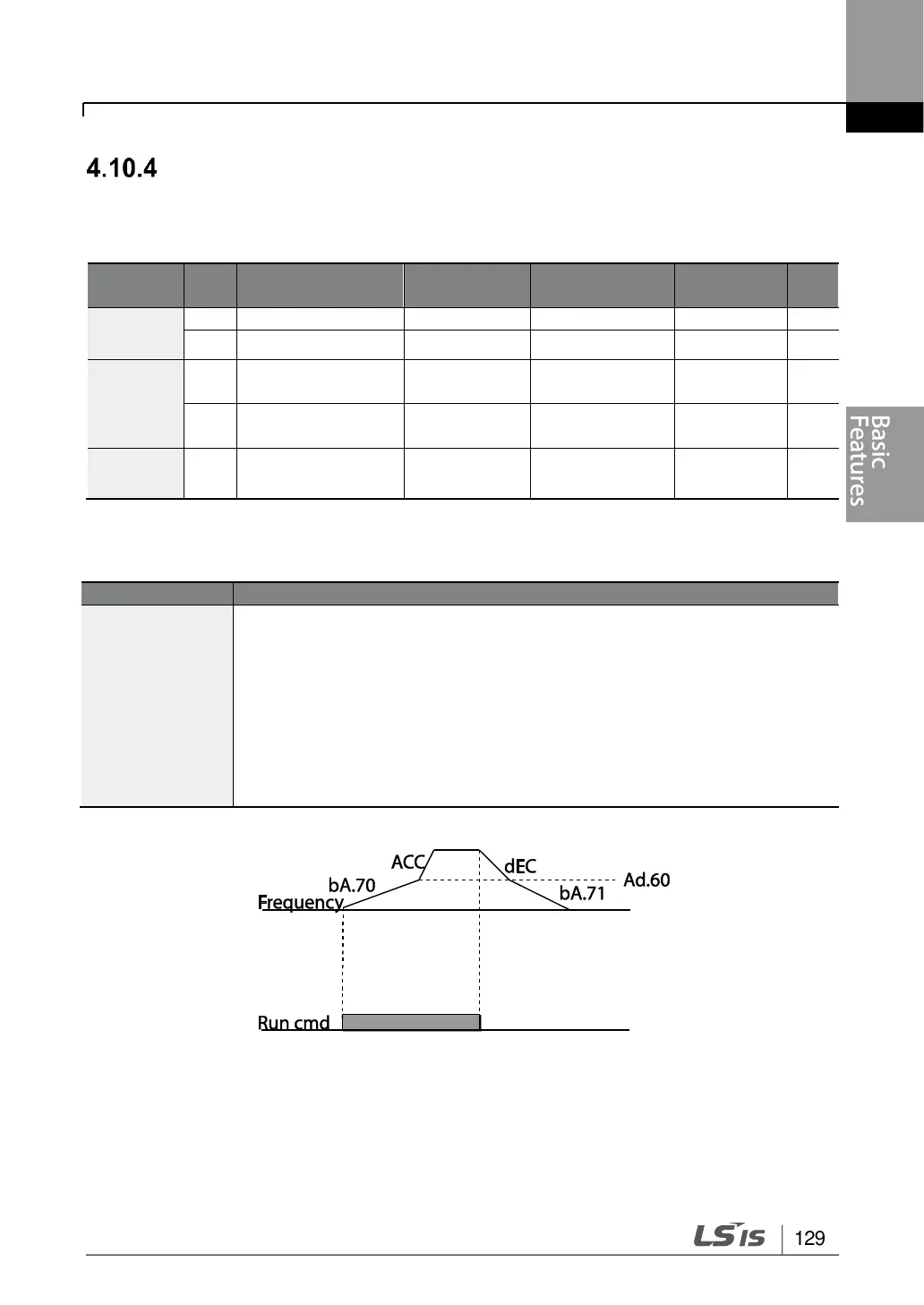

Acc/Dec Time Switch Frequency Setting Details
Code
Description
Ad.60
Xcel Change Fr
After the Acc/Dec switch frequency has been set, Acc/Dec gradients
configured at bA.70 and 71 will be used when the inverter’s operation
frequency is at or below the switch frequency. If the operation frequency
exceeds the switch frequency, the configured gradient level, configured for
the ACC and dEC codes, will be used.
If you configure the P1–P7 multi-function input terminals for multi-step
Acc/Dec gradients (XCEL-L, XCEL-M, XCEL-H), the inverter will operate
based on the Acc/Dec inputs at the terminals instead of the Acc/Dec switch
frequency configurations.
