Learning Basic Features
Acc/Dec Time Setup via Multi-function Terminals – Setting Details
Code
Description
bA. 70–82
Acc Time 1–7
Set multi-step acceleration time1–7.
bA.71–83
Dec Time 1–7
Set multi-step deceleration time1–7.
In.65–71
Px Define (P1–P7)
Choose and configure the terminals to use for multi-step Acc/Dec time
inputs.
Configuration
Description
11
XCEL-L
Acc/Dec command-L
12
XCEL-M
Acc/Dec command-M
49
XCEL-H
Acc/Dec command-H
Acc/Dec commands are recognized as binary code inputs and will
control the acceleration and deceleration based on parameter values
set with bA.70–83.

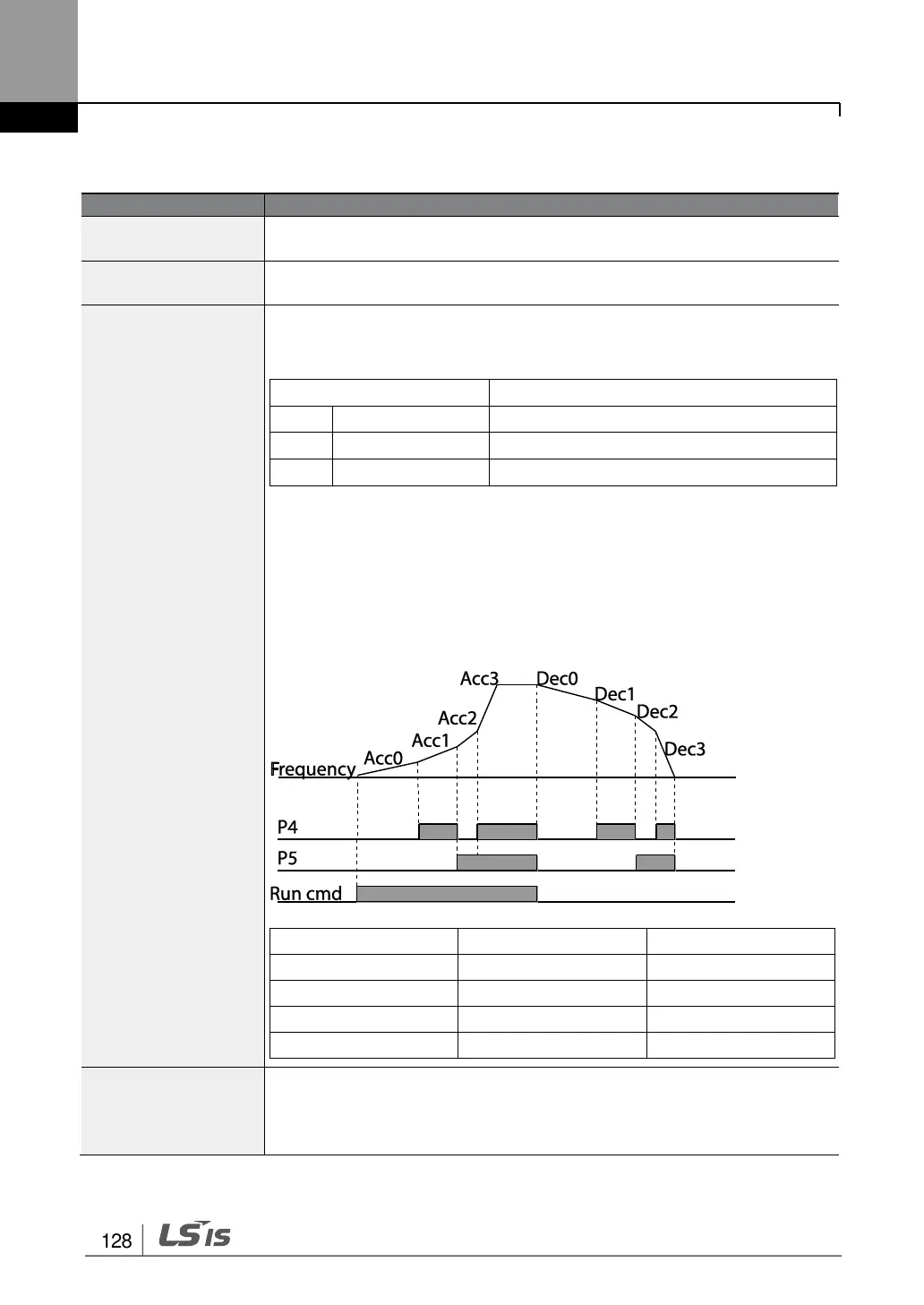

If, for example, the P4 and P5 terminals are set as XCEL-L and XCEL
respectively, the following operation will be available.
Acc/Dec time
P5
P4
0
-
-
1
-

2

-
3


In.89 In Check Time
Set the time for the inverter to check for other terminal block inputs. If
In.89 is set to 100ms and a signal is supplied to the P4 terminal, the
inverter searches for other inputs over the next 100ms. When the time
expires, the Acc/Dec time will be set based on the input received at P4.
