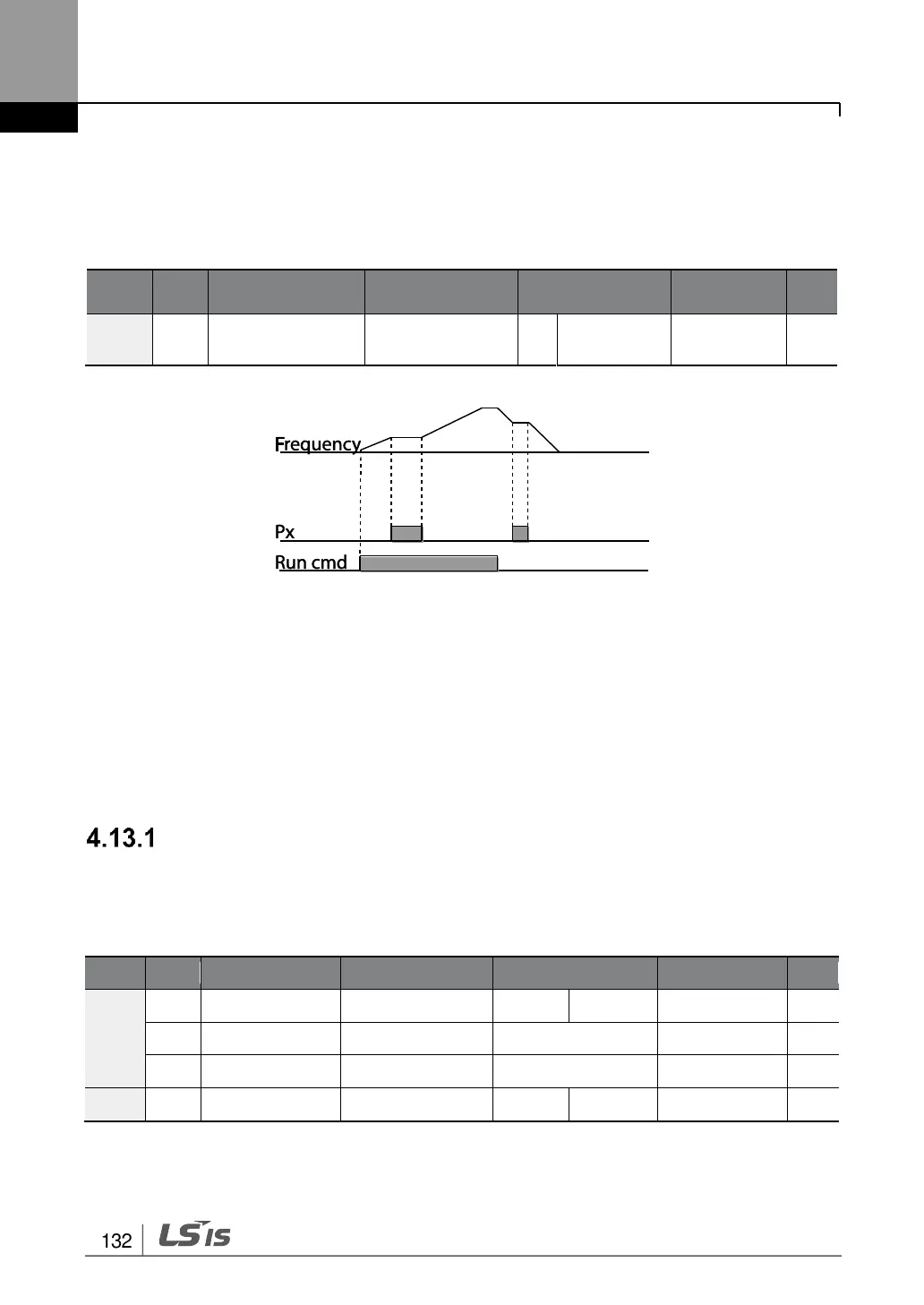

LSIS LSLV-S100 User Manual

132
Learning Basic Features
4.12 Stopping the Acc/Dec Operation
Configure the multi-function input terminals to stop acceleration or deceleration and operate
the inverter at a fixed frequency.
Group
Code
Name
LCD Display
Parameter Setting
Setting
Range
Unit
In
65–
71
Px terminal
configuration
Px Define
(Px: P1– P7)
25
XCEL Stop
0–54
-
4.13 V/F(Voltage/Frequency) Control
Configure the inverter’s output voltages, gradient levels and output patterns to achieve a
target output frequency with V/F control. The amount of of torque boost used during low
frequency operations can also be adjusted.
Linear V/F Pattern Operation
A linear V/F pattern configures the inverter to increase or decrease the output voltage at a
fixed rate for different operation frequencies based on V/F characteristics. A linear V/F
pattern is partcularly useful when a constant torque load is applied.
Group
Code
Name
LCD Display
Parameter Setting
Setting Range
Unit
dr
09
Control mode
Control Mode
0
V/F
0–4
-
18
Base frequency
Base Freq
60.00
30.00–400.00
Hz
19
Start frequency
Start Freq
0.50
0.01–10.00
Hz
bA
07
V/F pattern
V/F Pattern
0
Linear
0–3
-
