Learning Basic Features

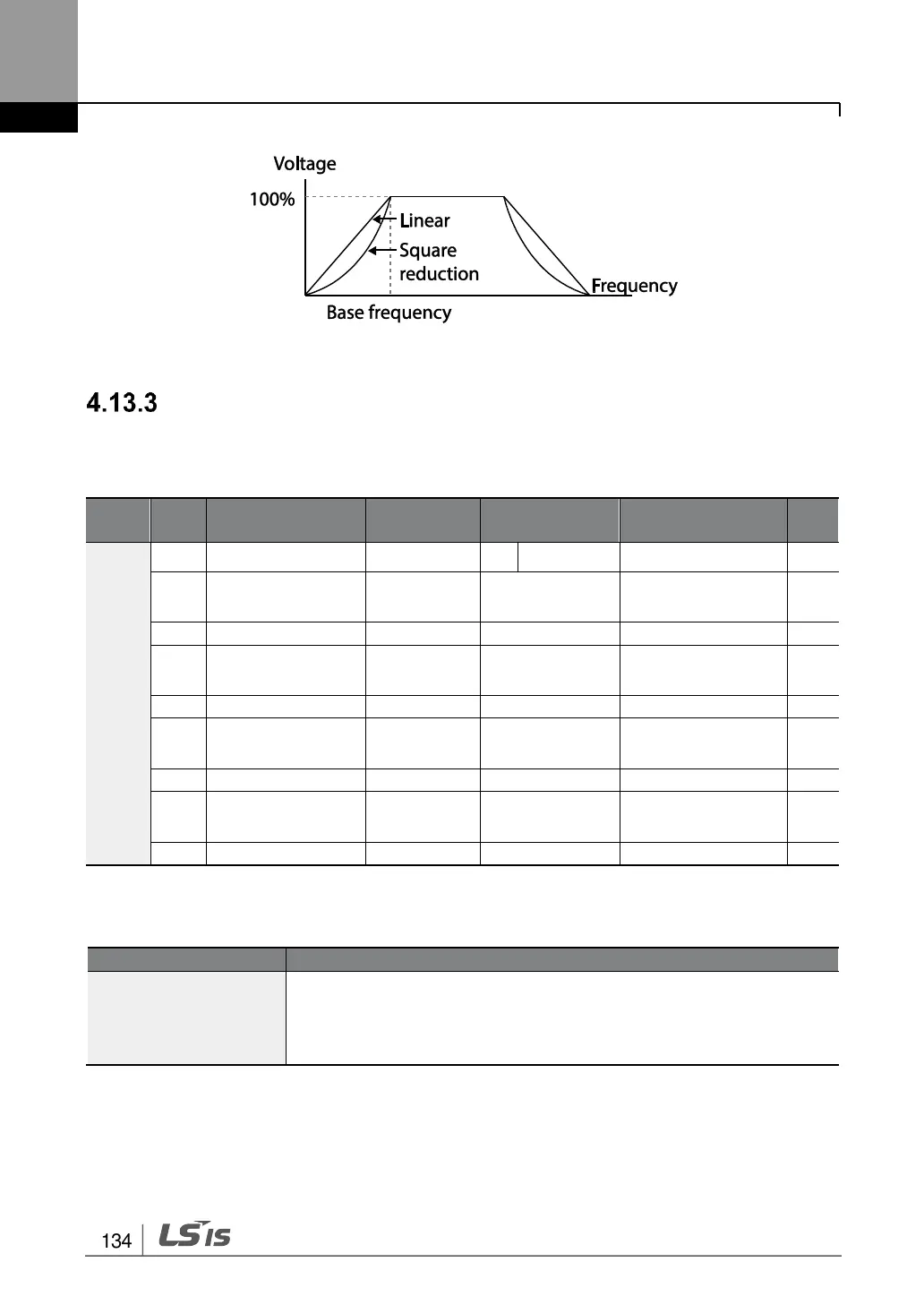

User V/F Pattern Operation
The S100 inverter allows the configuration of user-defined V/F patterns to suit the load
characteristics of special motors.
Group
Code
Name
LCD Display
Parameter
Setting
Setting Range
Unit
bA
07
V/F pattern
V/F Pattern
2
User V/F
0–3
-
41
User Frequency1
User Freq 1
15.00
0–Maximum
frequency
Hz
42
User Voltage1
User Volt 1
25
0–100
%
43
User Frequency2
User Freq 2
30.00
0–Maximum
frequency
Hz
44
User Voltage2
User Volt 2
50
0–100
%
45
User Frequency3
User Freq 3
45.00
0–Maximum
frequency
Hz
46
User Voltage3
User Volt 3
75
0–100
%
47
User Frequency4
User Freq 4
Maximum
frequency
0–Maximum
frequency
Hz
48
User Voltage4
User Volt 4
100
0–100%
%
User V/F pattern Setting Details
Code
Description
bA.41 User Freq 1–
bA.48 User Volt 4
Set the parameter values to assign arbitrary frequencies (User Freq
1–4) for start and maximum frequencies. Voltages can also be set to
correspond with each frequency, and for each user voltage (User Volt
1–4).
