Learning Advanced Features
245

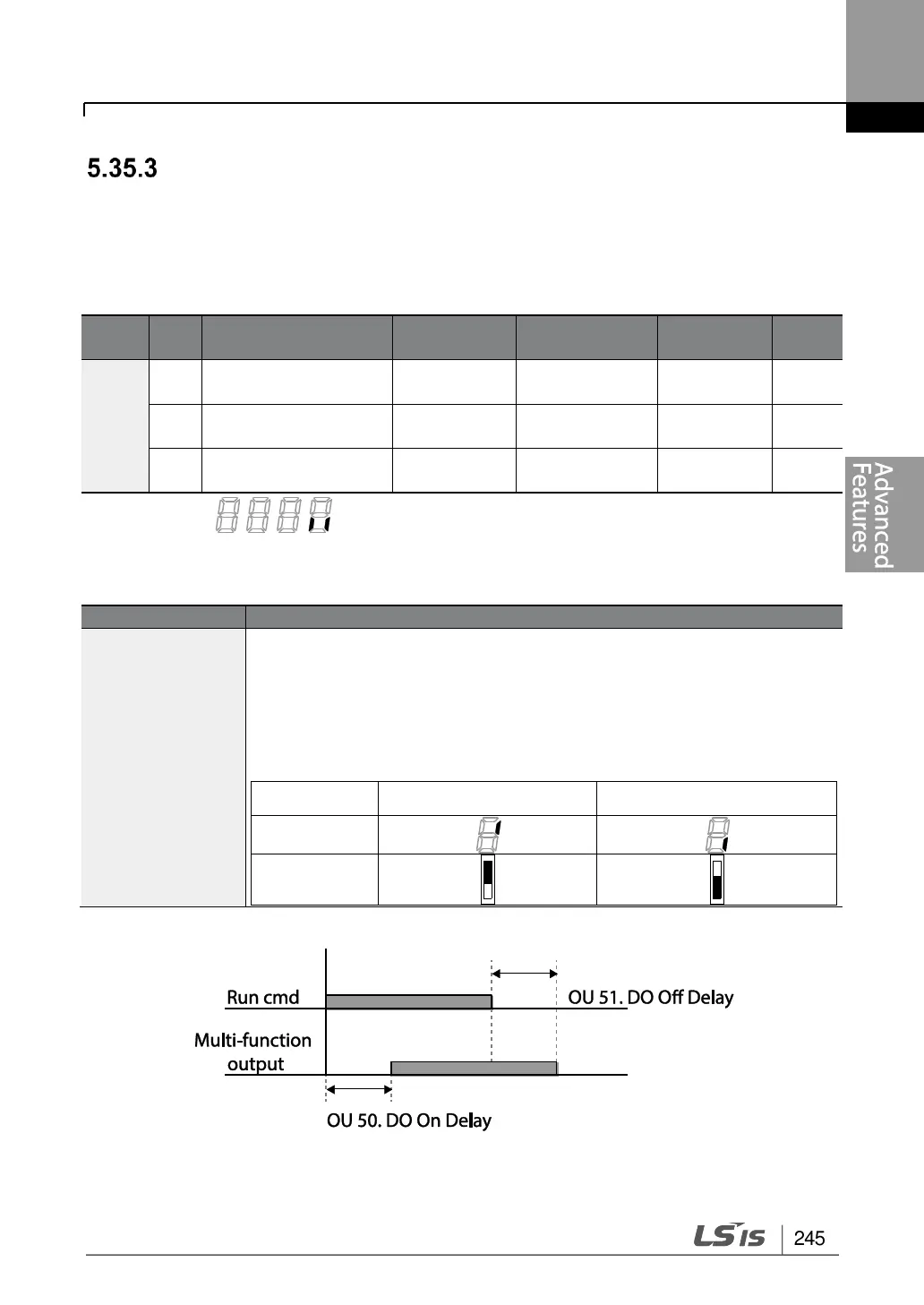

Multi-function Output Terminal Delay Time Settings
Set on-delay and off-delay times separately to control the output terminal and relay
operation times. The delay time set at codes OU.5051 applies to multi-function output
terminal (Q1) and relay (Relay), except when the multi-function output function is in fault trip
mode.
Group
Code
Name
LCD Display
Parameter
Setting
Setting
Range
Unit
OU
50
Multi-function output
On delay
DO On Delay
0.00
0.00100.00
s
51
Multi-function output
Off delay
DO Off Delay
0.00
0.00100.00
s
52
Select multi-function
output terminal
DO NC/NO
Sel
00*
0011
bit
* Displayed as on keypad.
Output Terminal Delay Time Setting Details
Code
Description
OU.52 DO NC/NO
Sel
Select terminal type for relay and multi-function output terminal. An
additional three terminal type selection bits at the terminal block will be
added when an expansion I/O is added. By setting the relevant bit to 0, it
will operate A terminal (Normally Open), and setting it to 1 will operate B
terminal (Normally Closed). Shown below in the table are Relay 1 and Q1
settings starting from the right bit.
Item
bit on
bit off
Keypad
LCD keypad
