Choose the terminals to setup as multi-step inputs, and then set the relevant
codes (In.65–71) to 7(Speed-L), 8(Speed-M), or 9(Speed-H).
Provided that terminals P3, P4 and P5 have been set to Speed-L, Speed-M
and Speed-H respectively, the following multi-step operation will be
available.

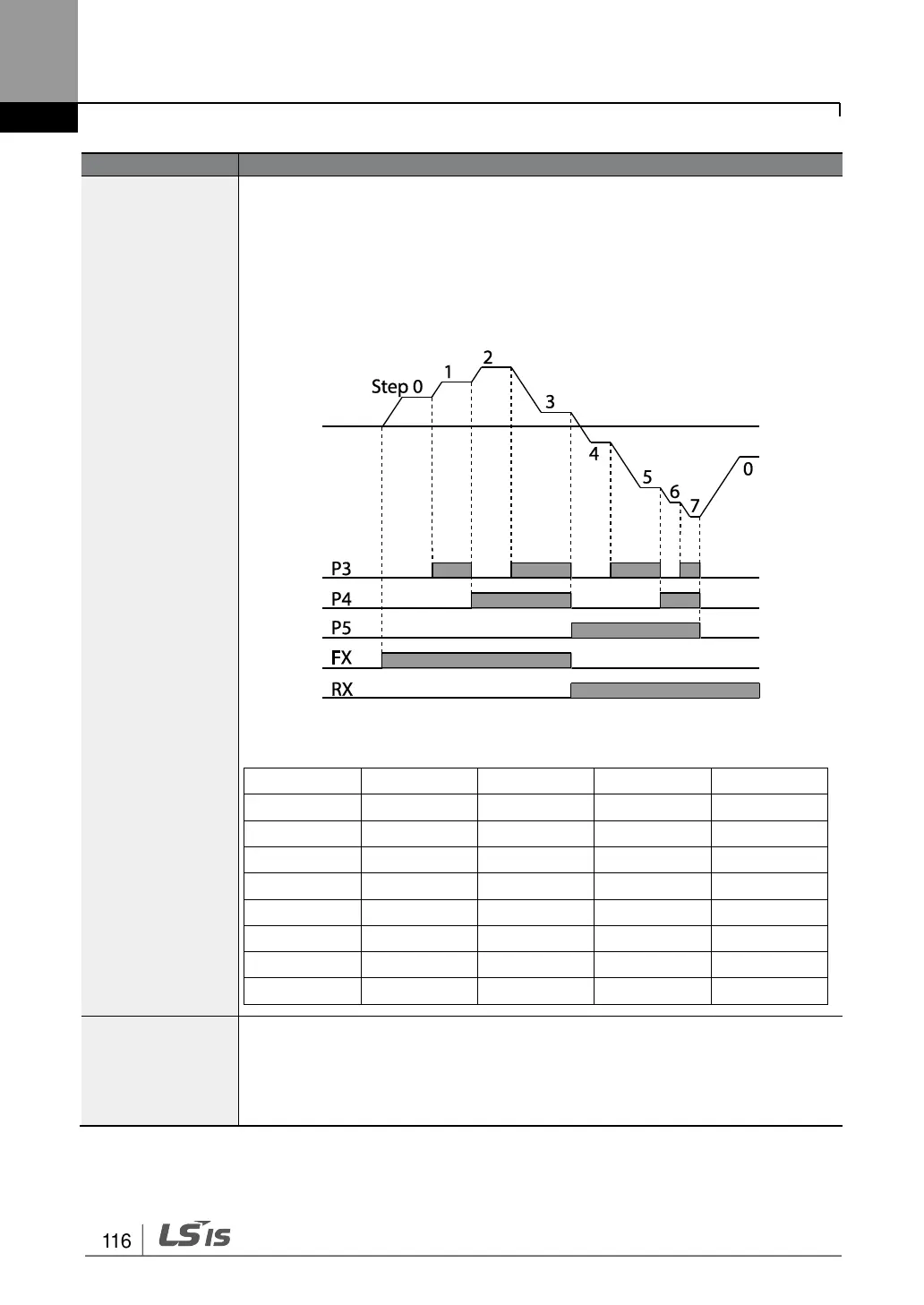

[An example of a multi-step operation]
Set a time interval for the inverter to check for additional terminal block
inputs after receiving an input signal.
After adjusting In.89 to 100ms and an input signal is received at P5, the
inverter will search for inputs at other terminals for 100ms, before
proceeding to accelerate or decelerate based on P5’s configuration.
