[Example 1]
[Example 2]

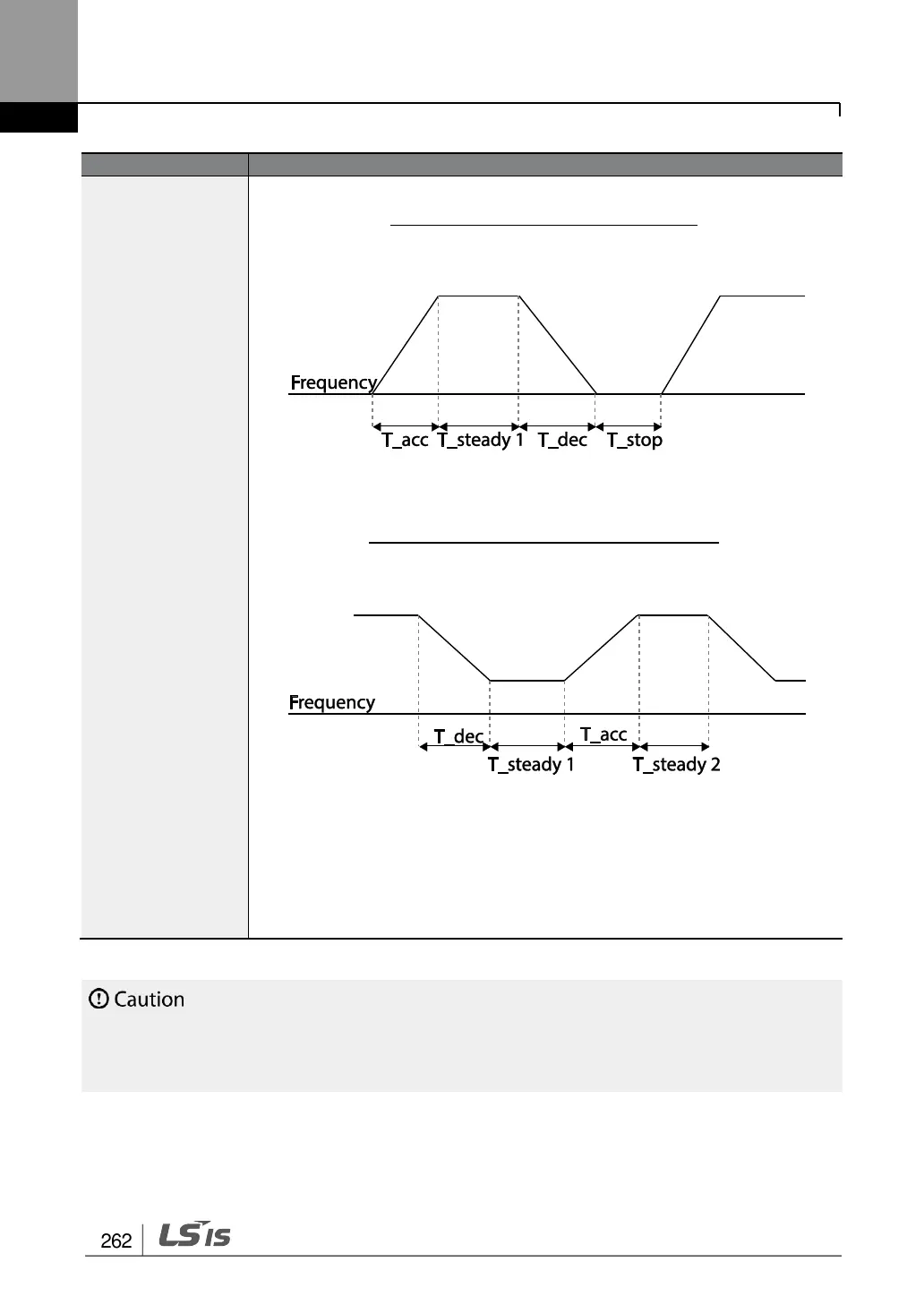

• T_acc: Acceleration time to set frequency
• T_steady: Constant speed operation time at set frequency
• T_dec: Deceleration time to a frequency lower than constant speed
operation or the stop time from constant speed operation frequency
• T_stop: Stop time until operation resumes
Do not set the braking resistor to exceed the resistor’s power rating. If overloaded, it can
overheat and cause a fire. When using a resistor with a heat sensor, the sensor output can be
used as an external trip signal for the inverter’s multi-function input.
