LSIS LSLV-S100 - Terminal Screw Specification

408

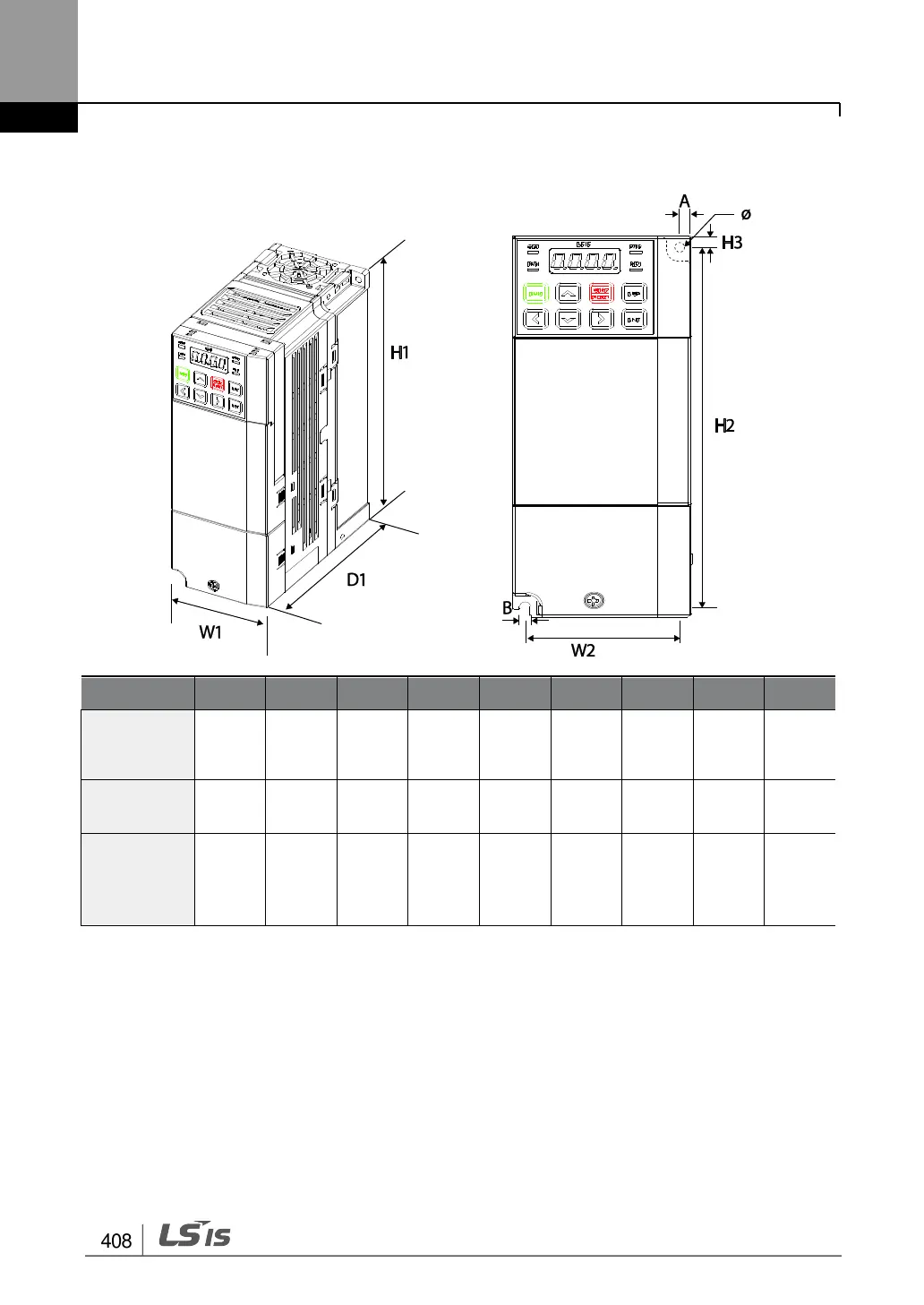

Technical Specification
0.8kW-1.5kW(Single Phase 200V), 1.5kW-2.2kW(3-Phase 400V) EMC filter Type
Items
W1
W2
H1
H2
H3
D1
A
B
Φ
0004S100-1,
0008S100-2,
0008S100-4
68
(2.68)
61.1
(2.41)
128
(5.04)
119
(4.69)
5
(0.20)
128
(5.04)
3.5
(0.14)
4
(0.16)
4
(0.16)
0004S100-2,
0004S100-4
68
(2.68)
61.1
(2.41)
128
(5.04)
119
(4.69)
5
(0.20)
123
(4.84)
3.5
(0.14)
4
(0.16)
4.2
(0.17)
004S100-1,
004S100-4,
008S100-4
EMC Type
68
(2.68)
63.5
(2.50)
180
(7.09)
170.5
(6.71)
5
(0.20)
130
(5.12)
4.5
(0.18)
4.5
(0.18)
4.2
(0.17)
Units: mm (inches)
