LSIS LSLV-S100 User Manual

Installing the Inverter
52
Step 7 Selecting the brake unit (30-75kW models only)
Select the brake unit as following:
UL form
Capacity of applied motor
Braking unit
Non UL type
(A type)
30-37kW
SV037DBH-4
45-55kW
SV075DBH-4, SV075DB-4
75kW
Non UL type
(B type)
30-37kW
LSLV0370DBU-4LN
LSLV0370DBU-4HN
45-75kW
LSLV0750DBU-4LN
UL type
30-37kW
SV370DBU-4U
45-55kW
SV550DBU-4U
75kW
SV750DBU-4U
Step 8 Re-assembling the Covers and Routing Bracket
After completing the wiring and basic configurations, re-assemble the control terminal cover,
cable routing bracket, and front cover respectively. Note that the assembly procedure may
vary according to the product group or frame size of the product.

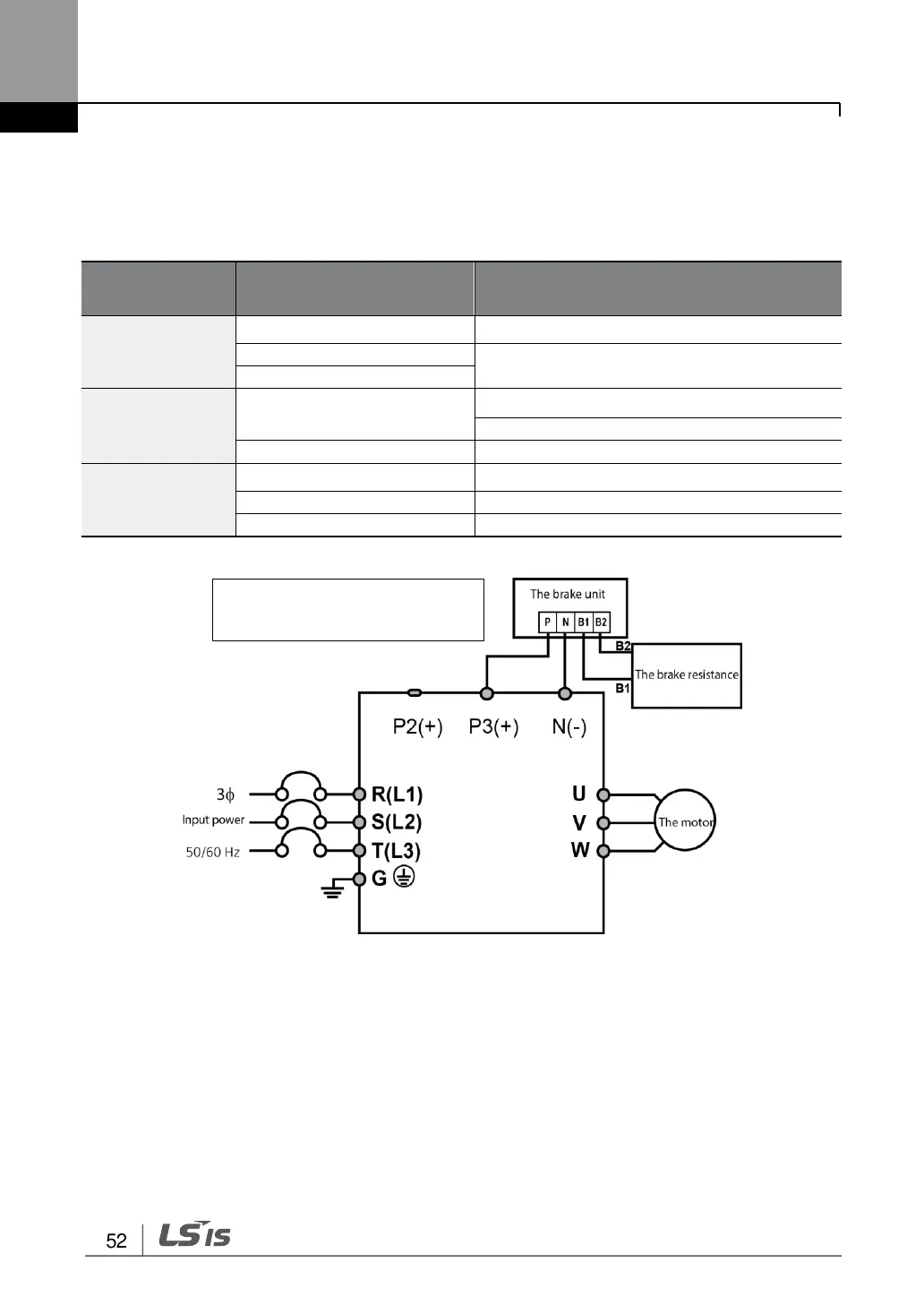

Brake unit and Brake
resistance
Wiring Connection
