Learning to Perform Basic Operations
3.1.4.2 30-75kW Models

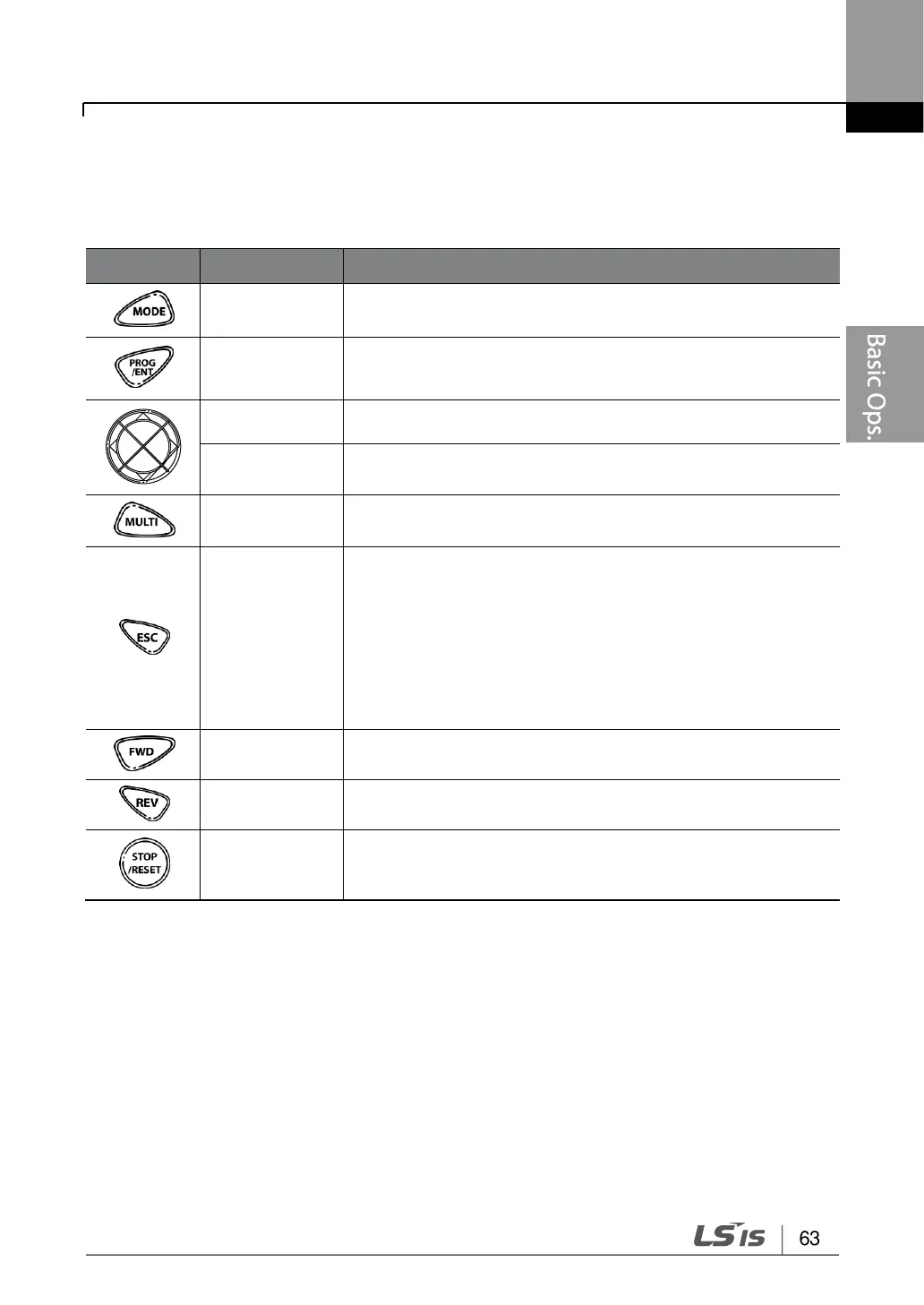

The following table lists the names and functions of the LCD’s operation keys.
Key
Name
Description
[MODE] Key
Used to switch between modes.
[PROG / Ent]
Key
Used to select, confirm, or save a parameter value.
[UP] key
[DOWN] key
Switch between codes or increase or decrease parameter
values.
[LEFT] key
[RIGHT] key
Switch between groups or move the cursor during parameter
setup or modification.
[MULTI] Key
Used to perform special functions, such as user code
registration.
[ESC] Key
Used to cancel an input during parameter setup.
• Pressing the [ESC] key before pressing the [PROG / ENT]
key reverts the parameter value to the previously set value.
• Pressing the [ESC] key while editing the codes in any
function group makes the keypad display the first code of
the function group.
• Pressing the [ESC] key while moving through the modes
makes the keypad display Monitor mode.
[FWD] Key
Used to operate the motor in the forward direction.
[REV] Key
Used to operate the motor in the reversed direction.
[STOP/RESET]
Key
Used to stop motor operation.
Used to reset the inverter following fault or failure condition.
