Learning to Perform Basic Operations
• Information about the first item in Monitor mode
(Frequency) is displayed.
• Information about the first item in Monitor mode
(Frequency) disappears and the cursor appears to the
left of the first item.

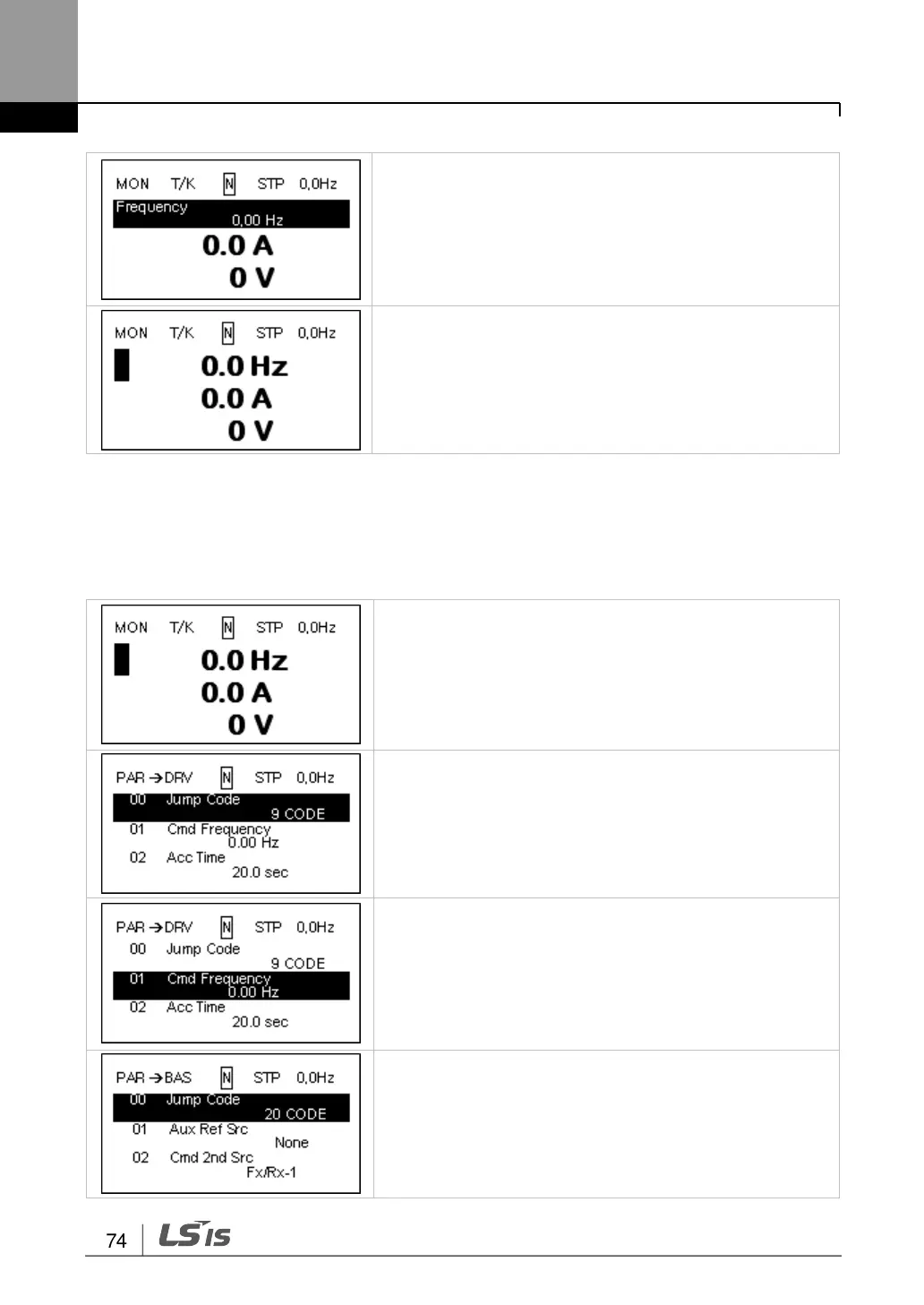

Code Navigation in Parameter mode
The following examples show you how to move through codes in different function groups
(Drive group and Basic group) in Parameter mode. In parameter mode, press the [▲] or [▼]
key to move to the desired functions.
• When the power is on, monitor mode is displayed.
• Drive group (DRV) in Parameter mode is displayed. If
any other group is displayed, press the [MODE] key
until the Drive group is displayed, or press the [ESC]
key.
• Press the [▼] key to move to the second code (DRV-
01) of Drive group.
• Basic group is displayed.
• Press the [▲] or [▼] key to move to the desired codes
and configure the inverter functions.
