3.7.5 Replacing PF Speed Reduction Pulley 114
3.7 Replacing PF section VJ628XE-M-00

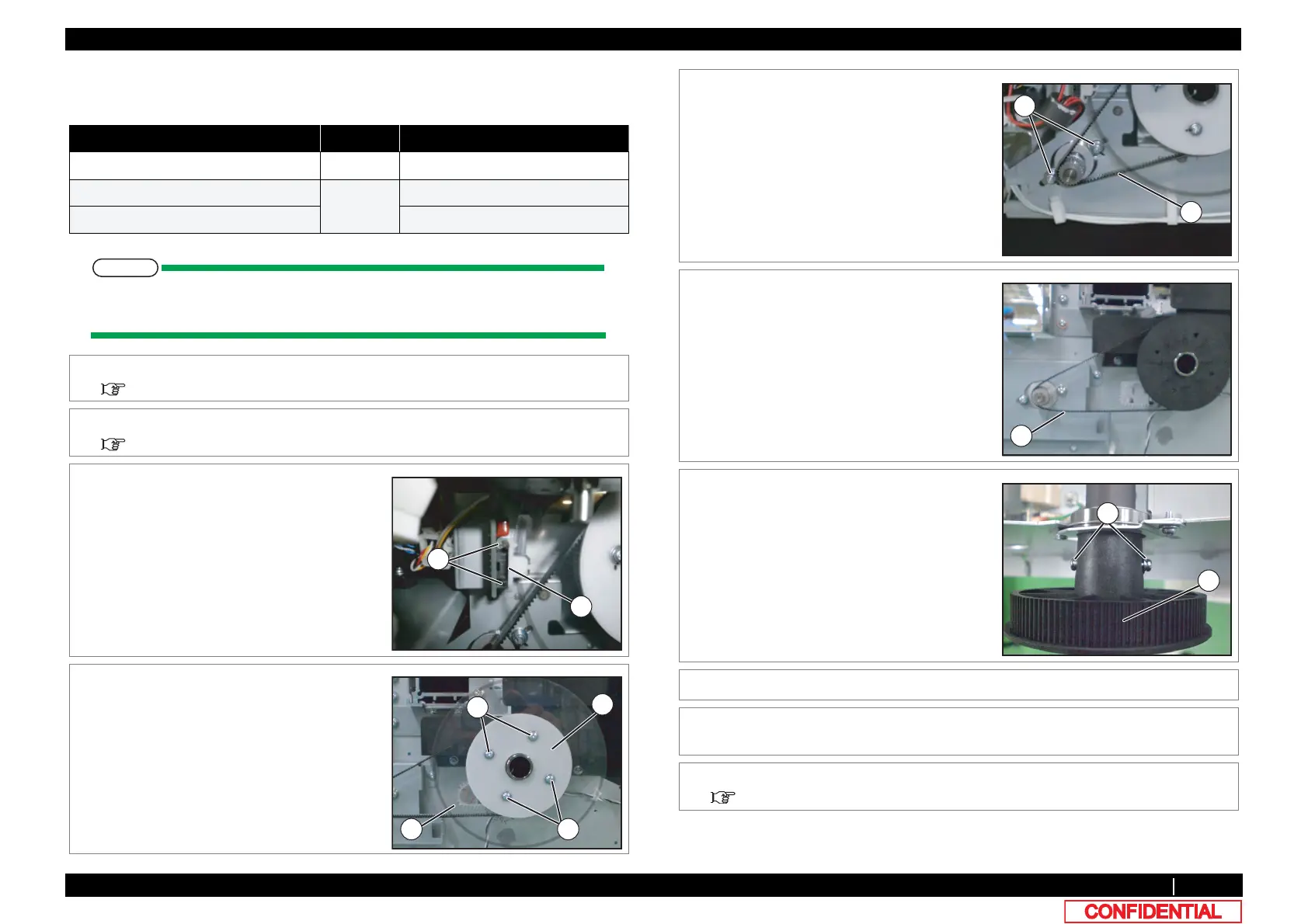

3.7.5 Replacing PF Speed Reduction Pulley
● Tools & Jigs & Maintenance part
NOTE
This section describes the procedure to replace the maintenance part, Speed
Reduction Pulley Assy.In this section, it is reffered to as PF Speed Reduction Pulley.
Name No. Remarks
Speed Reduction Pulley Assy DF-49051 Exploded View PF Motor
Phillips screwdriver No.2 Generic
products
-
Tension gauge
Max:40N(4,080gf）
1 Remove L Side Cover.
3.2.2 Removing Side Cover
2 Remove CR Motor.
3.6.1 Replacing CR Motor
3 Remove the screws (2 pieces) retaining PF
Encoder.
A : PF Encoder
B : Tapping screw M2ｘ8
4 Remove PF Encoder.
5 Remove the screws (4 pieces) retaining ENC
Holder.
A : ENC Holder
B : Tapping screw M3ｘ8P Tight cup
C : PF Encoder Scale
A
B
A
B
BC
6 Loosen the screws (2 pieces) retaining PF
Motor.
A : Pan-head screw with spring washer and
flat washer M4ｘ8
B : X Speed Reduction Belt
7 Remove X Speed Reduction Belt.
A : X Speed Reduction Belt
8 Remove the screws (2 pieces) retaining PF
Speed Reduction Pulley.
A : Pan-head screw with spring washer and
flat washer M3ｘ8
B : PF Speed Reduction Pulley
9 PF Speed Reduction Pulley
10 To reassemble unit, reverse the removal
procedure.
11 Perform various adjustments.
4.2 Adjustment Item
B
A
A
A
B
