4.7.2 Head Alignment (Vertical Slant) 235
4.7 Head Adjustment VJ628XE-M-00

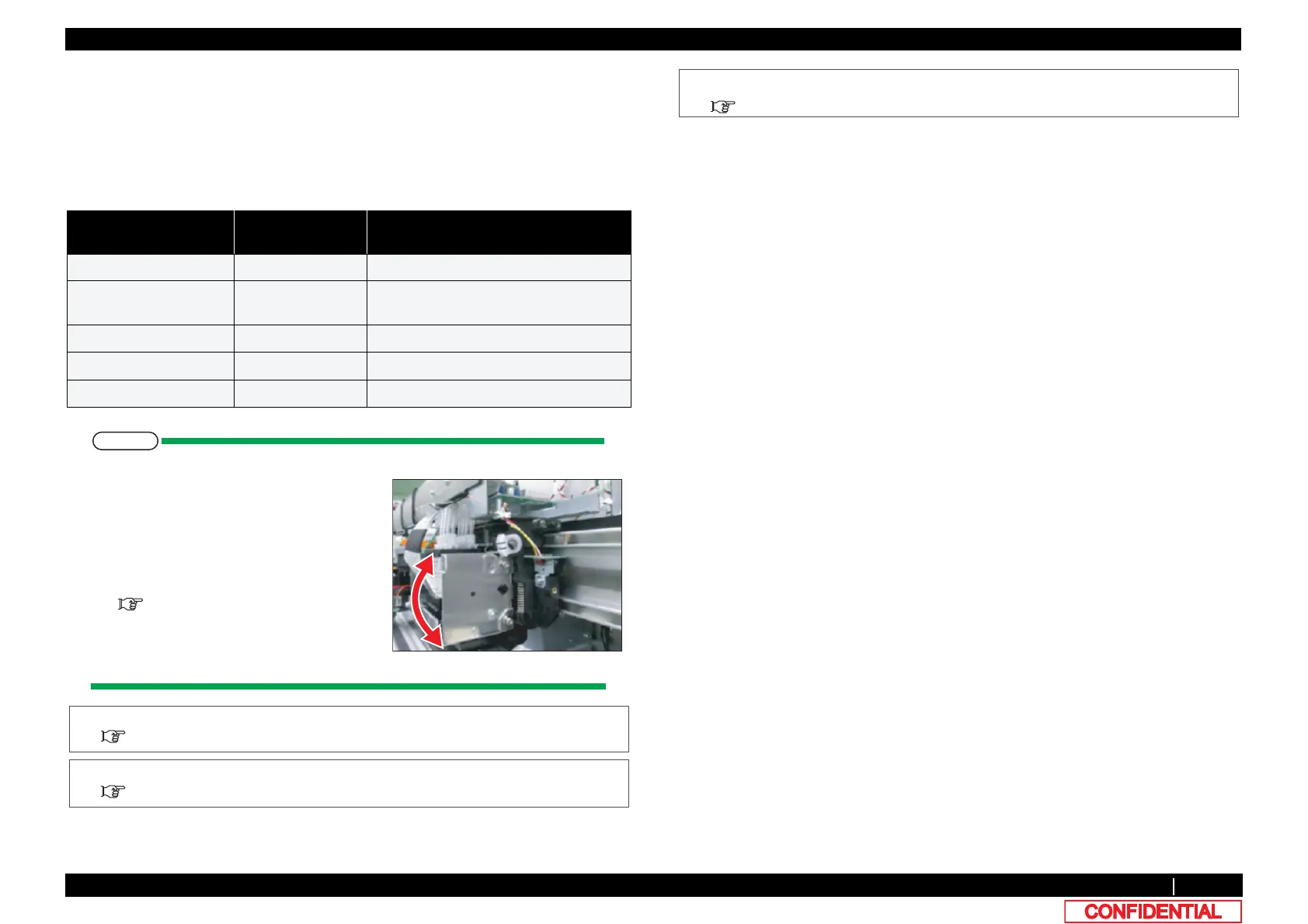

4.7.2 Head Alignment (Vertical Slant)
This section describes the procedure to adjust the head slant (Vertical Slant).
After operation such as head replacement, you might need to adjust the head slant. When
needed, adjust the head slant following the steps below. After an operation such as head
replacement, adjust the head slant following the steps below.
● Tools & Jigs
Name Maintenance Part
No.
Remarks
Phillips screwdriver No.2 Generic products -
Hex Wrench
(2.5mm)
Generic products -
Loupe Generic products -
dedicated media - MUTOH recommended media
Penlight Generic products for check the adjustment pattern
• Using the adjustment pattern when
setting 8 colors.
• Adjustment procedure is the same as 4
color setting and 5 color setting.
•
Adjust the horizontal height of the head
alignment before adjusting the vertical
alignment slant of head alignment.
"5.6.4Head Slant Check Menu
• In this procedure, the print head will be
aligned in the directions (vertical slant)
shown below.
1 Remove R Side Cover.
"3.2.2Removing Side Cover
2 Release Carriage lock.
"3.8.1Releasing Carriage Lock
3 Remove Carriage cover.
"3.8.2Removing Carriage Cover
To Next Page
