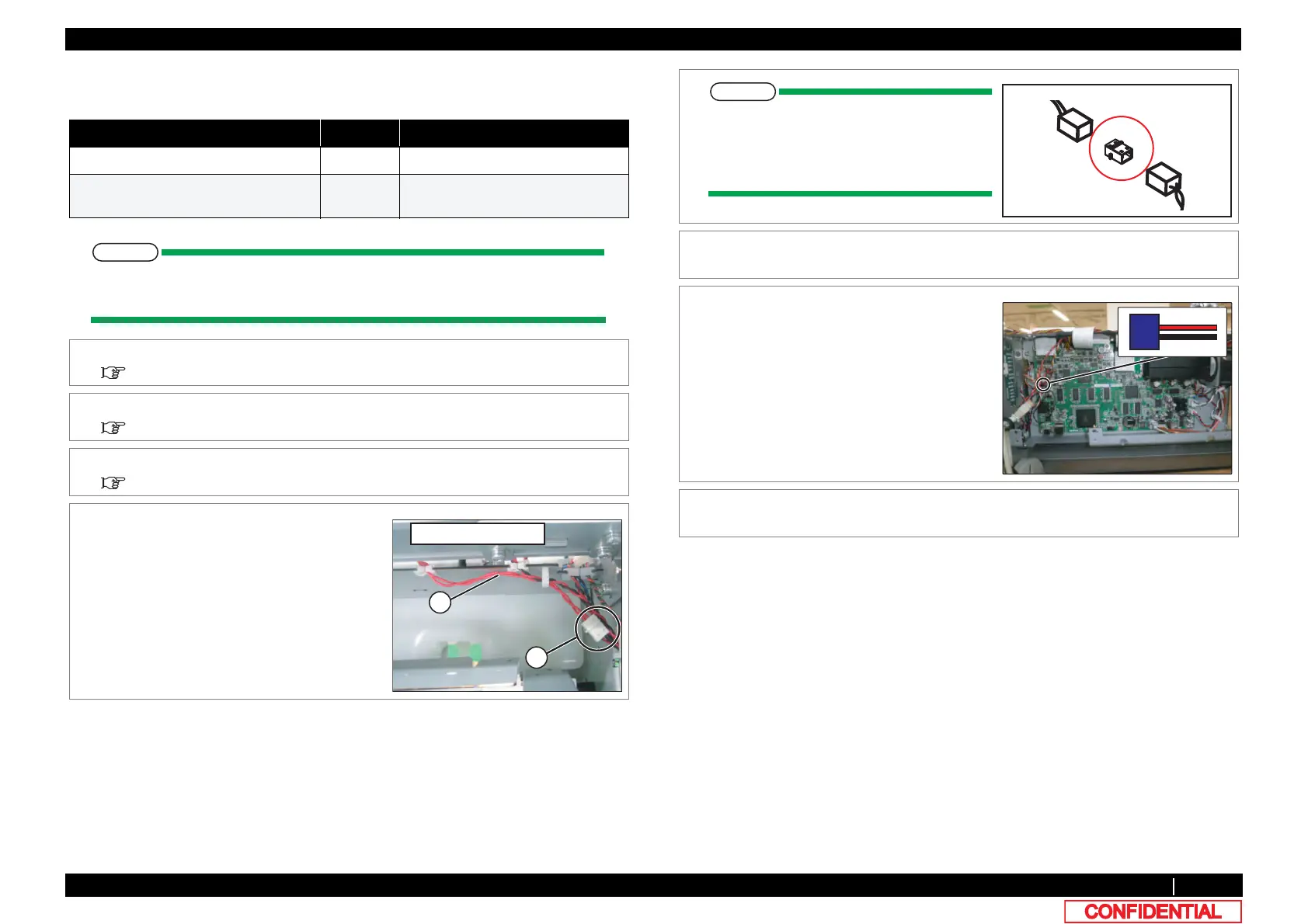

3.10.4 Replacing Wiper Solenoid Cable 160
3.10 Replacing Maintenance VJ628XE-M-00
3.10.4 Replacing Wiper Solenoid Cable
● Tools & Jigs & Maintenance part
In this section describes the procedure to replace the maintenance part, Wiper SOL
Cable Assy. In this section, it is referred to as Wiper solenoid cable.
Name No. Remarks
Wiper SOL Cable Assy DG-44723 Exploded View Maintenance
Phillips screwdriver No.2 Generic
products
-
1 Removing R Side Cover.
3.2.2 Removing Side Cover
2 Move Carriage to the opposite side of Platen.
3.8.1 Releasing Carriage Lock
3 Remove Top Cover.
3.2.1 Removing Top Cover
4 Remove Wiper Solenoid Relay Cable from
Wiper Solenoid.
A : the cable of Wiper Solenoid
B : Connecting point
B
A
DCEMUKFGQH/CKPVGPCPEG
Wiper solenoid and Wiper solenoid Cable
are connected in the post header
assembly. Please do not lose the post
header assembly.
5 Remove the Wiper solenoid cable from the
clamps on the path.
6 Remove the Wiper solenoid cable from the
Main board Assy.
7 To reassemble unit, reverse the removal
procedure.
J29
To Next Page
