MUTOH Valuevet VJ-628X - Replacing PF Encoder Scale

3.7.3 Replacing PF Encoder Scale 112
3.7 Replacing PF section VJ628XE-M-00

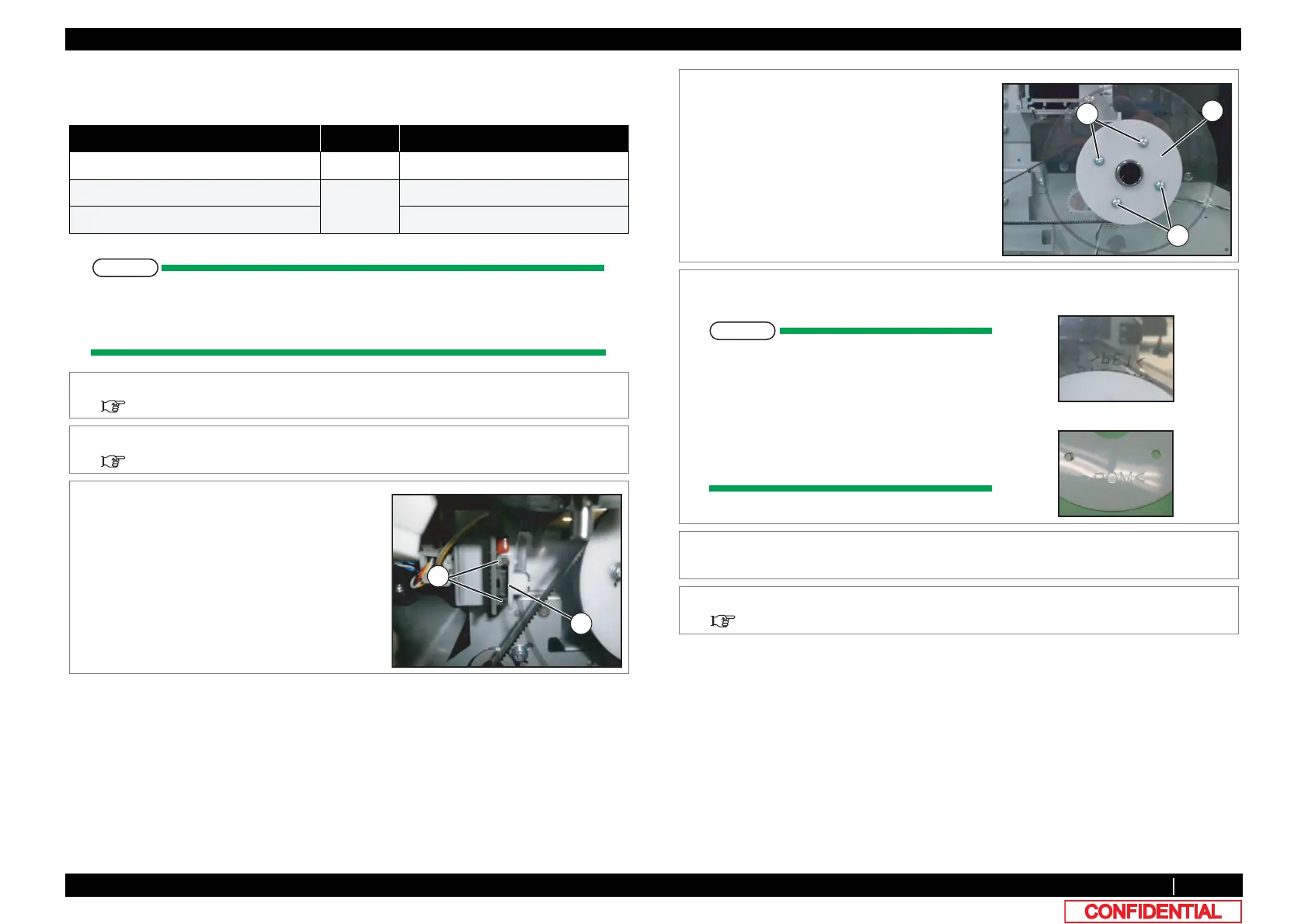

3.7.3 Replacing PF Encoder Scale
● Tools & Jigs & Maintenance part
NOTE
This section describes the procedure to replace the maintenance part,PF ENC Scale
Assy.
n this section, it is reffered to as PF Encoder Scale.
Name No. Remarks
PF ENC Scale Assy DF-49028 Exploded View PF Motor
Phillips screwdriver No.2 Generic
products
-
Phillips screwdriverNo.1 -
1 Removing L Side Cover.
3.2.2 Removing Side Cover
2 Remove CR Motor.
3.6.1 Replacing CR Motor
3 Remove the screws (2 pieces) retaining PF
Encoder.
A : PF Encoder
B : Tapping screw M2ｘ8
4 Remove PF Encoder.
A
B
5 Remove the screws (4 pieces) retaining ENC
Holder.
A : ENC Holder
B : Tapping screw M3ｘ8P Tight cup
6 Replace PF Encoder Scale.
NOTE
When handling PF Encoder scale. be
careful with the following.
• Do NOT damage or bend PF Encoder
scale or touch its outer circumference.
• Make sure that slit mounting flange has
NO remaining double-sided tape.
7 To reassemble unit, reverse the removal
procedure.
8 Perform various adjustments.
4.2 Adjustment Item
A
B
B
Make sure that the letters >PET<
can be seen reversely when installed.
Make sure that the letters >POM<
can be seen when installed.
