3.4.2 Replacing Scroller Holder Roller Assy 73
3.4 Replacing Frame section VJ628XE-M-00

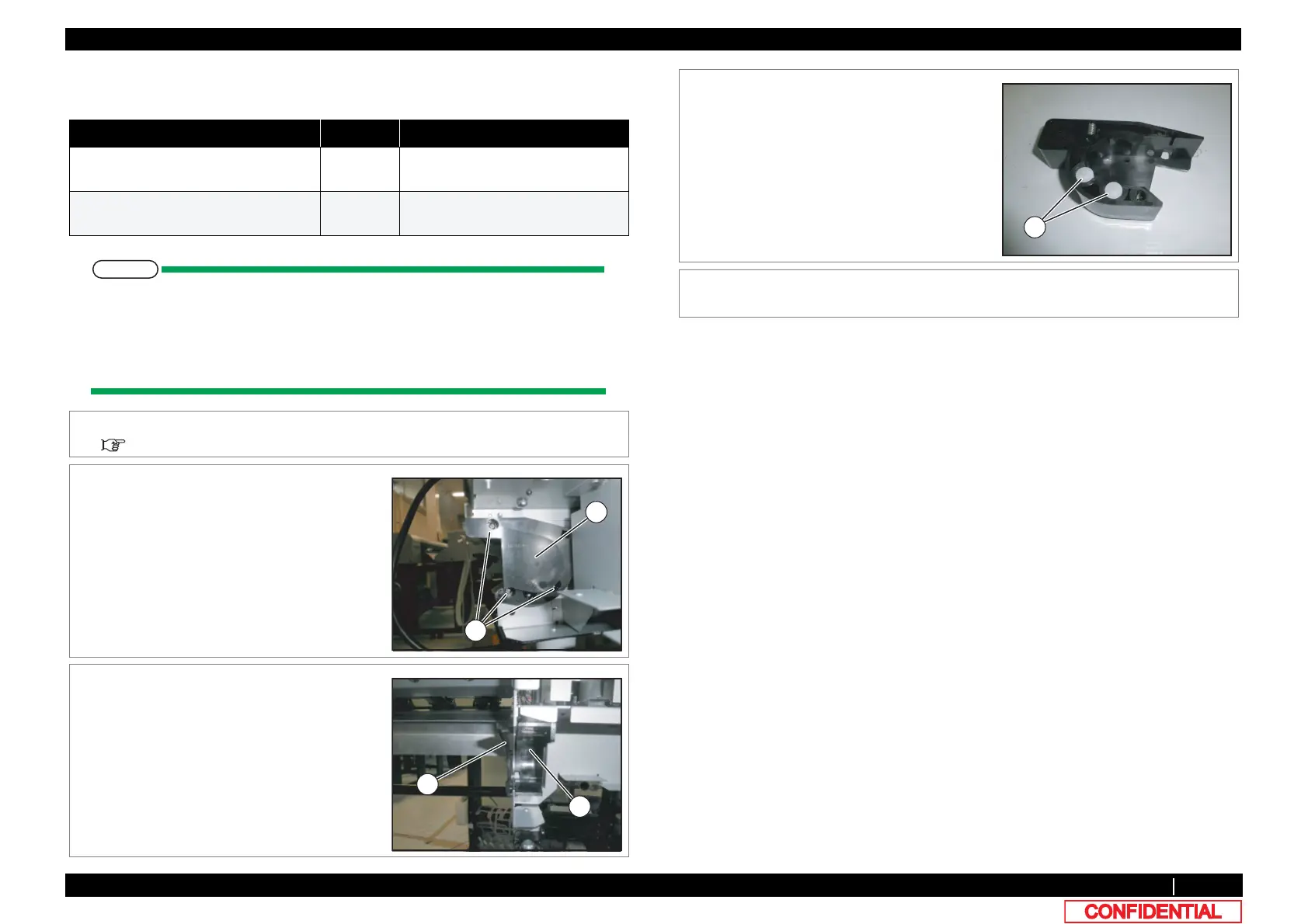

3.4.2 Replacing Scroller Holder Roller Assy
● Tools & Jigs & Maintenance part
㨀㧵㧼
• This section describes the procedure to replace the maintenance part, Scroller
Holder Roller Assy.
In this section, it is referred to as Scroller Holder Roller.
• The replacement procedure is common to both R side and L side.This section
describes the procedure to replace L.
Name No. Remarks
Scroller Holder Roller Assy DG-44698 Exploded View Frame R•Heater
Exploded View Frame L•Scroller
Phillips screwdriver No.2 Generic
products
-
1 Removing L Side Cover.
3.2.2 Removing Side Cover
2 Remove the screws (3 pieces) retaining
Scroller Holder L.
A : P tight pan M3x12 Ni-3
B : Scroller Holder L
3 Remove Scroller Holder Cover L.
4 Remove Scroller Holder L.
A : Scroller Holder Cover L
B : Scroller Holder L
A
B
A
B
5 Replace Scroller Holder Rollers.
6 To reassemble unit, reverse the removal
procedure.
A
