3.7.6 Replacing PF Motor Cable 115
3.7 Replacing PF section VJ628XE-M-00

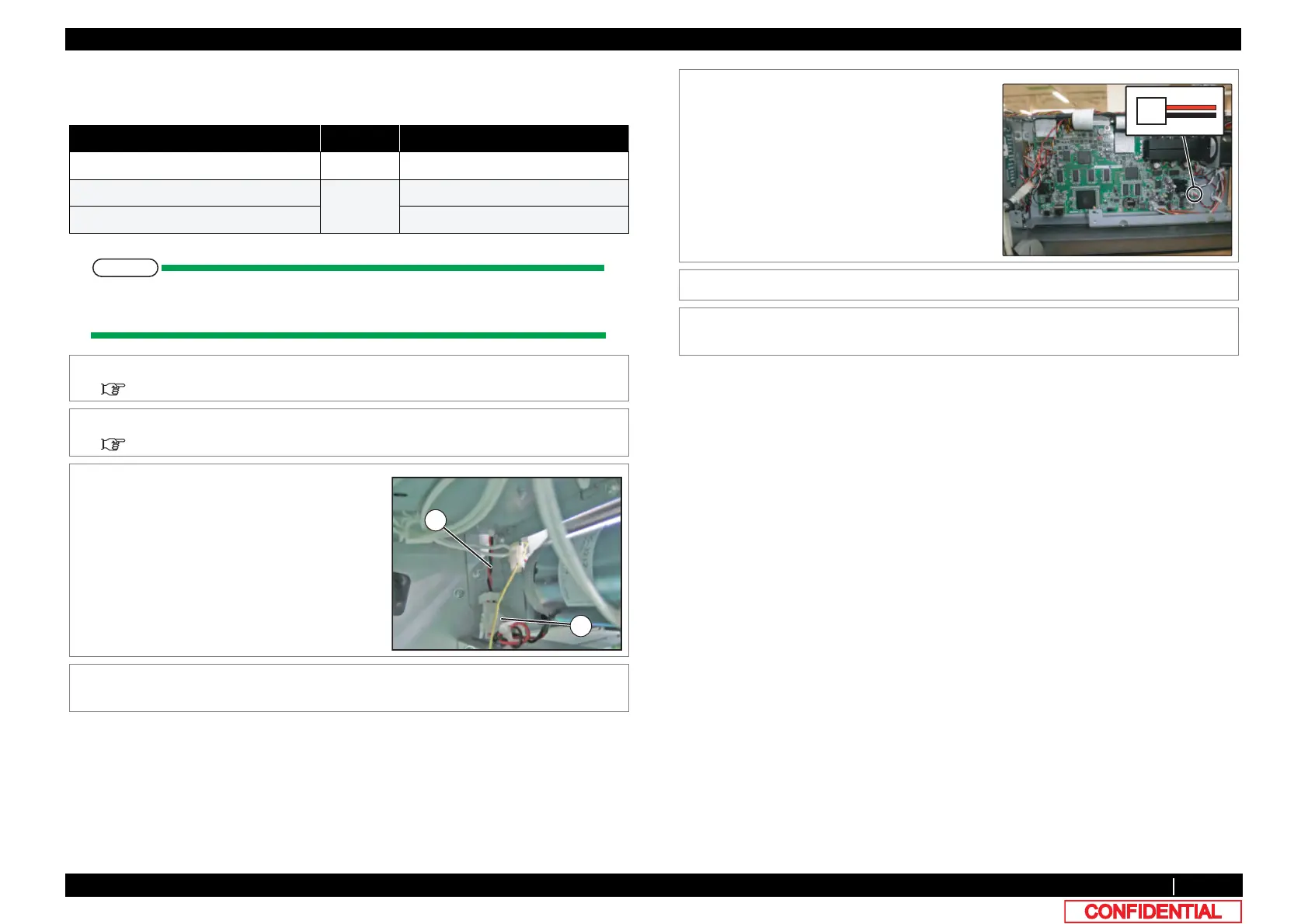

3.7.6 Replacing PF Motor Cable
● Tools & Jigs & Maintenance part
NOTE
This section describes the procedure to replace the maintenance part,PF Motor
Cable Assy.In this section n this section, it is reffered to as PF Motor Cable.
Name No. Remarks
PF Motor Cable Assy DG-44699 Exploded View PF Motor
Phillips screwdriver No.2 Generic
products
-
Tension gauge
Max:40N(4,080gf）
1 Remove R Side Cover and L Side Cover.
3.2.2 Removing Side Cover
2 Remove Top Cover.
3.2.1 Removing Top Cover
3 Remove PF Motor Cable from the connector
of PF Motor.
A : PF Motor Cable
B : connecting point
4 Remove the cable of PF Motor Cable from the
clamps on the path.
A
B
5 Remove PF Motor Cable from MAIN Board.
6 Replace PF Motor Cable.
7 To reassemble unit, reverse the removal
procedure.
J12
