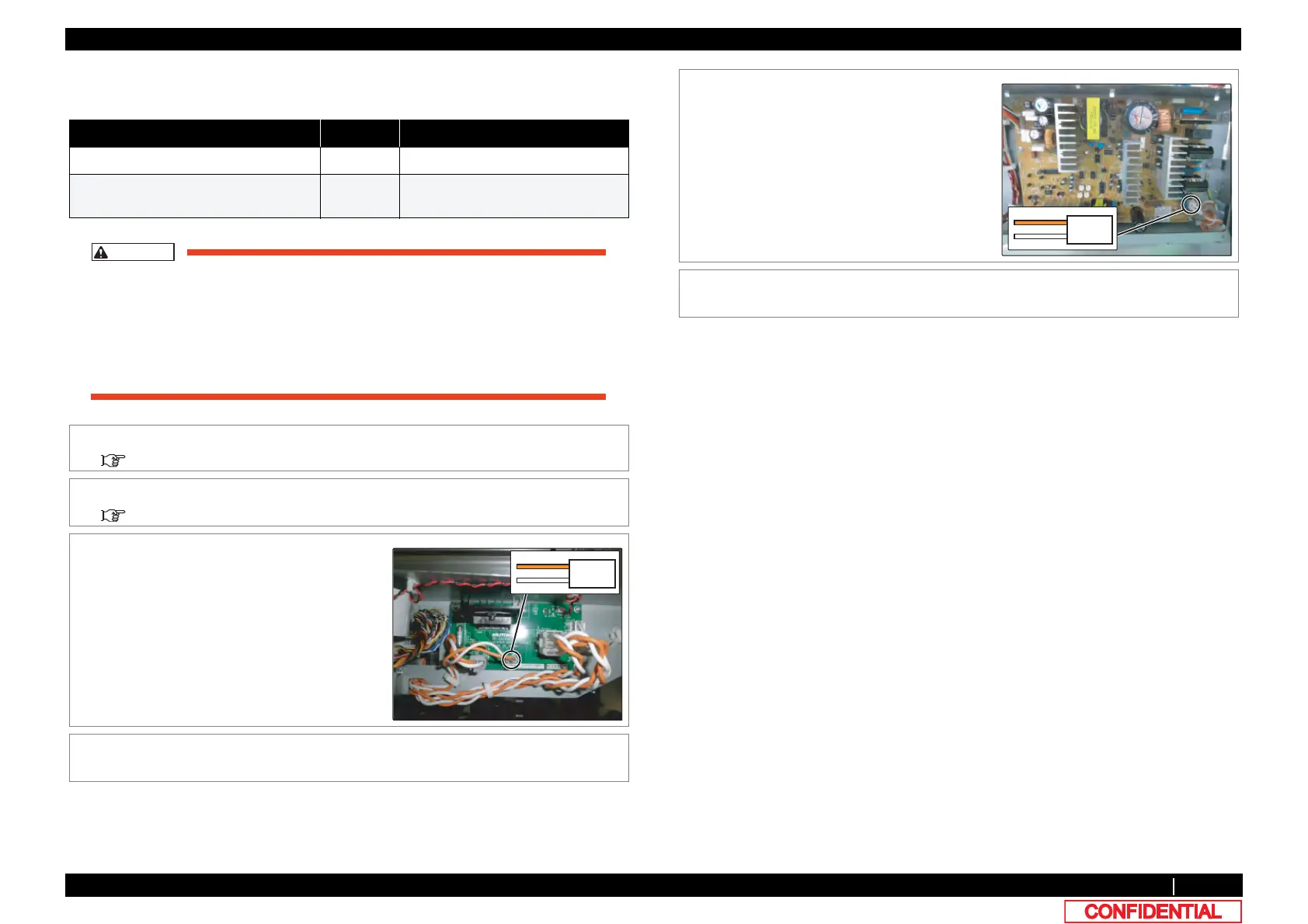

3.5.2 Replacing AC JUNC-Power Cable Assy 77
3.5 Replacing Board Base section VJ628XE-M-00
3.5.2 Replacing AC JUNC-Power Cable Assy
● Tools & Jigs & Maintenance part
• Before replacing Board Assy and pulling or pushing cables, unplug Power cable
and leave it for a while.
If operating with Power cable still plugged, Board may be damaged or operators
may get an electric shock by residual electric charge.
• When you handle Circuit board, do not touch any elements on it with bare hands.
Doing so may cause electrostatic discharge and damage the elements.
Name No. Remarks
AC JUNC-Power Cable Assy DG-44714 Exploded View Board Box
Phillips screwdriver No.2 Generic
products
-
1 Remove Top Cover.
3.2.1 Removing Top Cover
2 Removing L Side Cover.
3.2.2 Removing Side Cover
3 Remove AC JUNC-Power Cable Assy from
HEATER DRIVE Board.
4 Remove AC JUNC-Power Cable Assy from
the clamps on the path.
5 Remove AC JUNC-Power Cable Assy from
Power Board.
6 To reassemble unit, reverse the removal
procedure.
To Next Page
