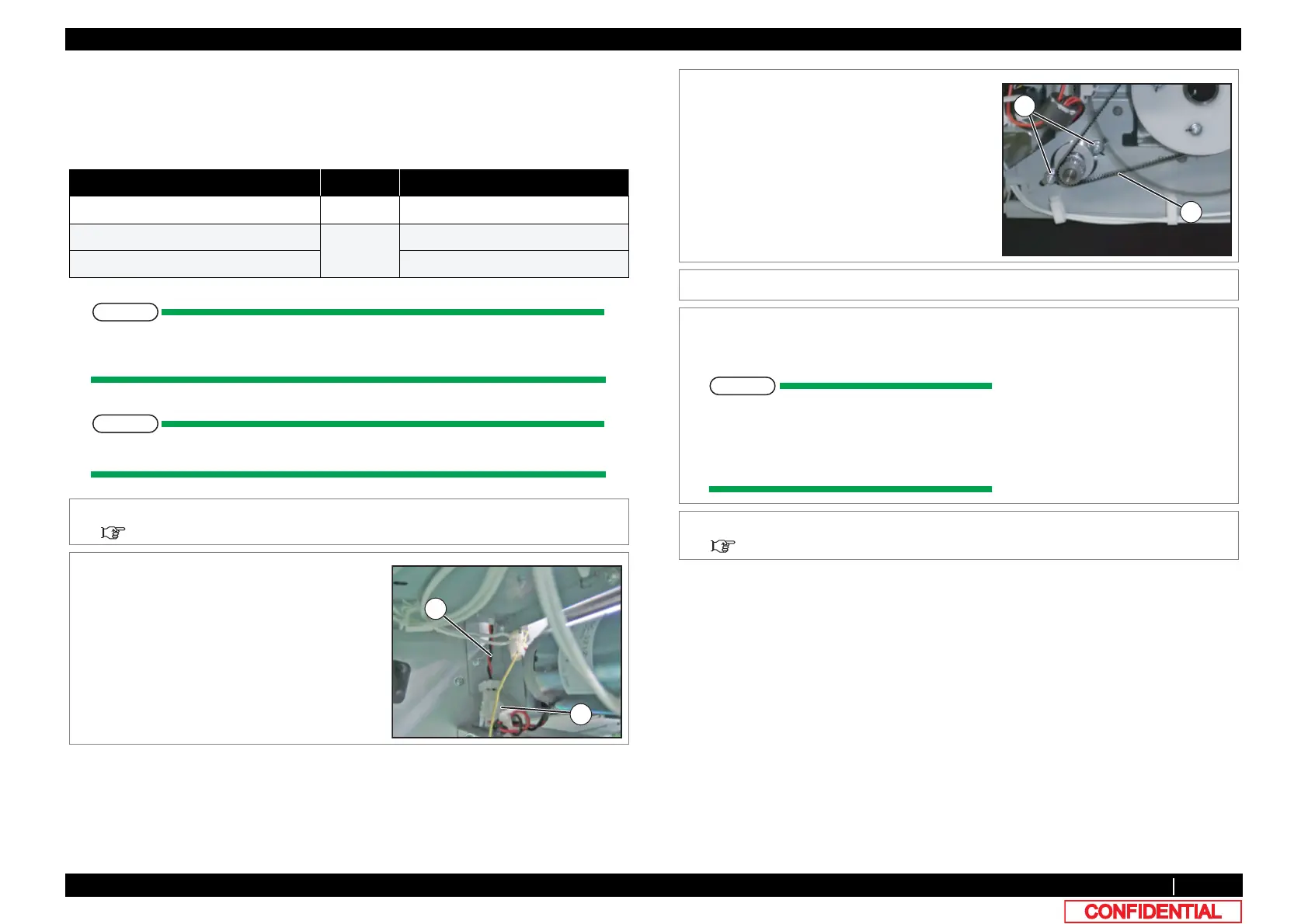

3.7.1 Replacing PF Motor 110
3.7 Replacing PF section VJ628XE-M-00
3.7 Replacing PF section
3.7.1 Replacing PF Motor
● Tools & Jigs & Maintenance part
NOTE
This section describes the procedure to replace the maintenance part, PF Motor
Assy.In this section, it is reffered to as PF Motor.
NOTE
Do NOT damage or bend PF Encoder scale or touch its outer circumference.
Name No. Remarks
PF Motor Assy DF-49020
Exploded View PF Motor
Phillips screwdriver No.2 Generic
products
-
Tension gauge Max 40N (4,080gf)
1 Removing L Side Cover.
3.2.2 Removing Side Cover
2 Remove PF Motor Cable from the connector
of PF Motor.
A : PF Motor Cable
B : connecting point
A
B
3 Remove the screws (2 pieces) retaining PF
Motor.
4 Remove X Speed Reduction Belt from PF
Motor.
A : Pan-head screw with spring washer and
flat washer M4ｘ8
B : X Speed Reduction Belt
5 Replace PF Motor.
6 To reassemble unit, reverse the removal
procedure.
NOTE
Move PF Speed Reduction Pulley with
your hand to check if X Speed Reduction
Belt is equally balanced on the pulley
center section of PF Motor.
7 Perform various adjustments.
4.2 Adjustment Item
B
A
